Nominal Input Level
-20 dBu
Nominal Output Level
-20 dBu
Recommended Load Impedance
10 k ohms or greater

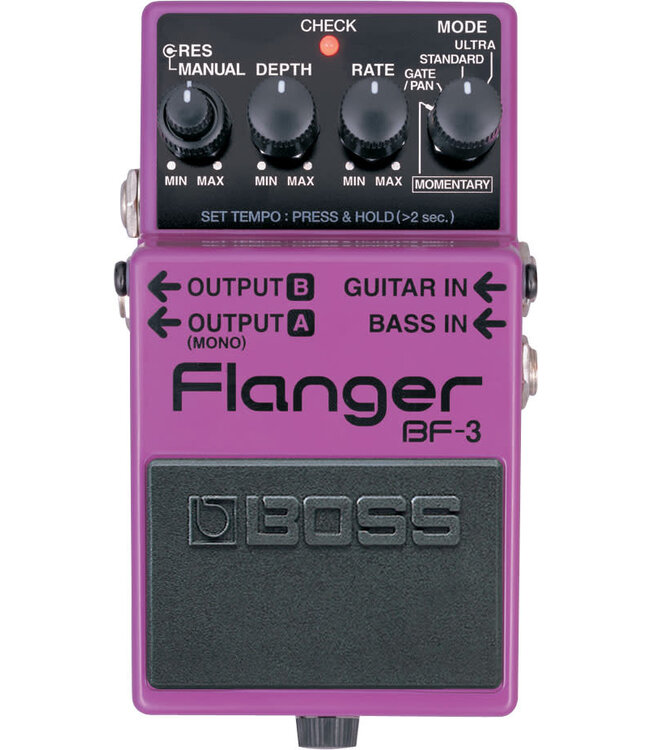

Controls
MODE knob RATE knob DEPTH knob RES (Resonance)/MANUAL knob Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
GUITAR IN jack: 1/4-inch phone type BASS IN jack: 1/4-inch phone type OUTPUT A (MONO) jack: 1/4-inch phone type OUTPUT B jack: 1/4-inch phone type DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Expected battery life under continuous use
Alkaline: Approx. 4 hours *These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Registration Card Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Depth
129 mm 5-1/8 inches
Height
59 mm 2-3/8 inches
Weight (including battery)
425 g 15 oz
