Nominal Input Level
-20 dBu
Nominal Output Level
-20 dBu
Recommended Load Impedance
10 k ohms or greater
Controls

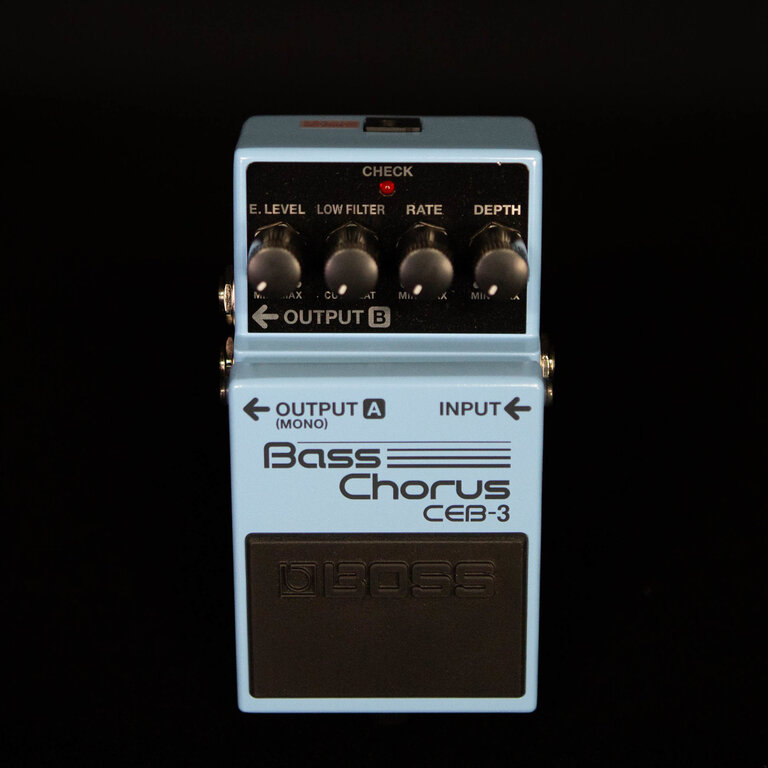

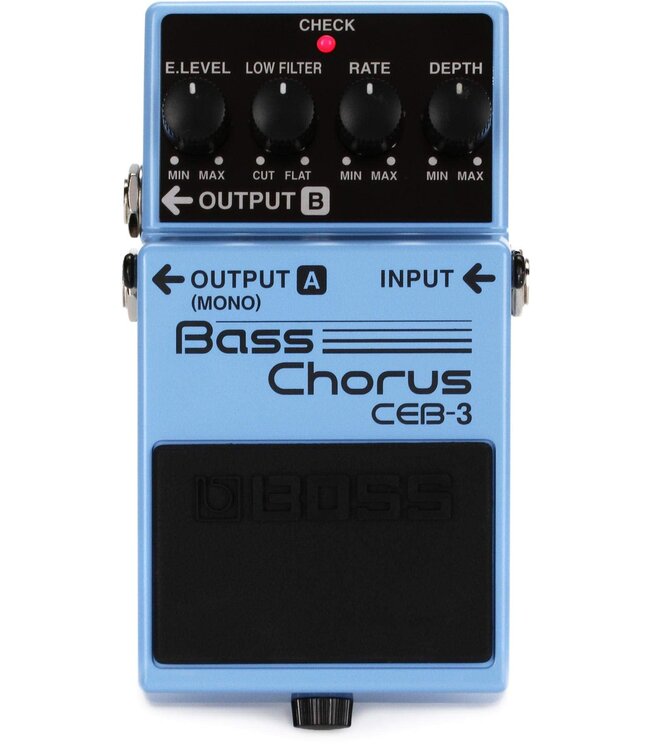

DEPTH (Modulation depth) knob RATE (Modulation rate) knob LOW FILTER knob E.LEVEL knob Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors

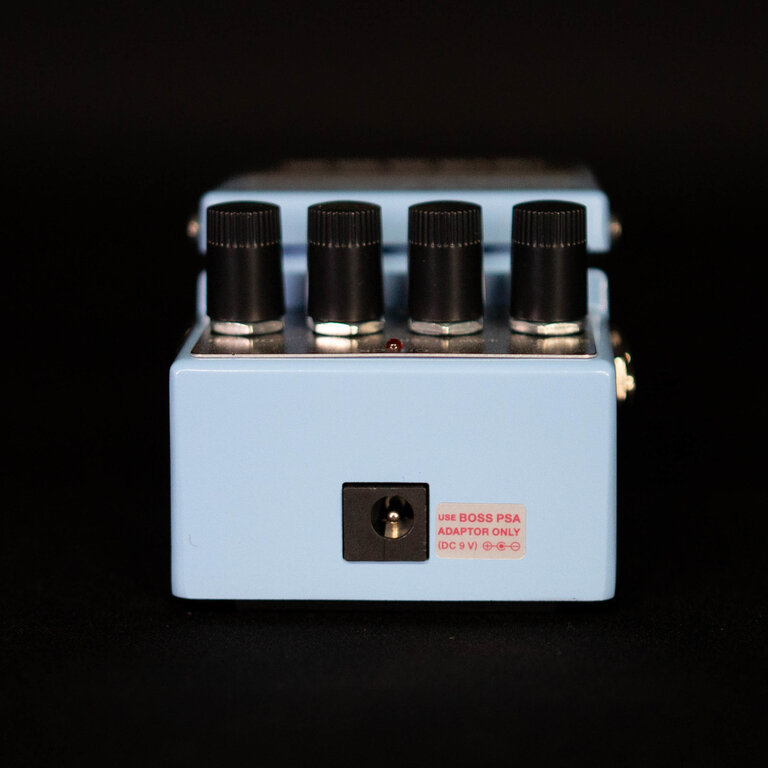

INPUT jack: 1/4-inch phone type OUTPUT A (MONO) jack: 1/4-inch phone type OUTPUT B jack: 1/4-inch phone type DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Expected battery life under continuous use
Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Depth
129 mm 5-1/8 inches
Height
59 mm 2-3/8 inches
Weight (including battery)
420 g 15 oz
