Nominal Input Level
-20 dBu
Nominal Output Level
-20 dBu
Recommended Load Impedance
10 k ohms or greater
Controls

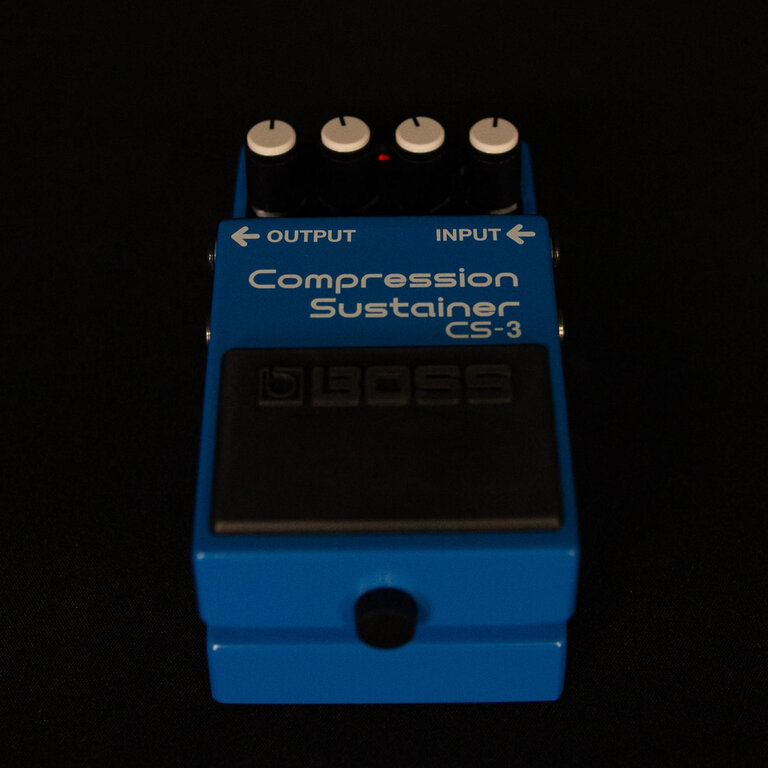

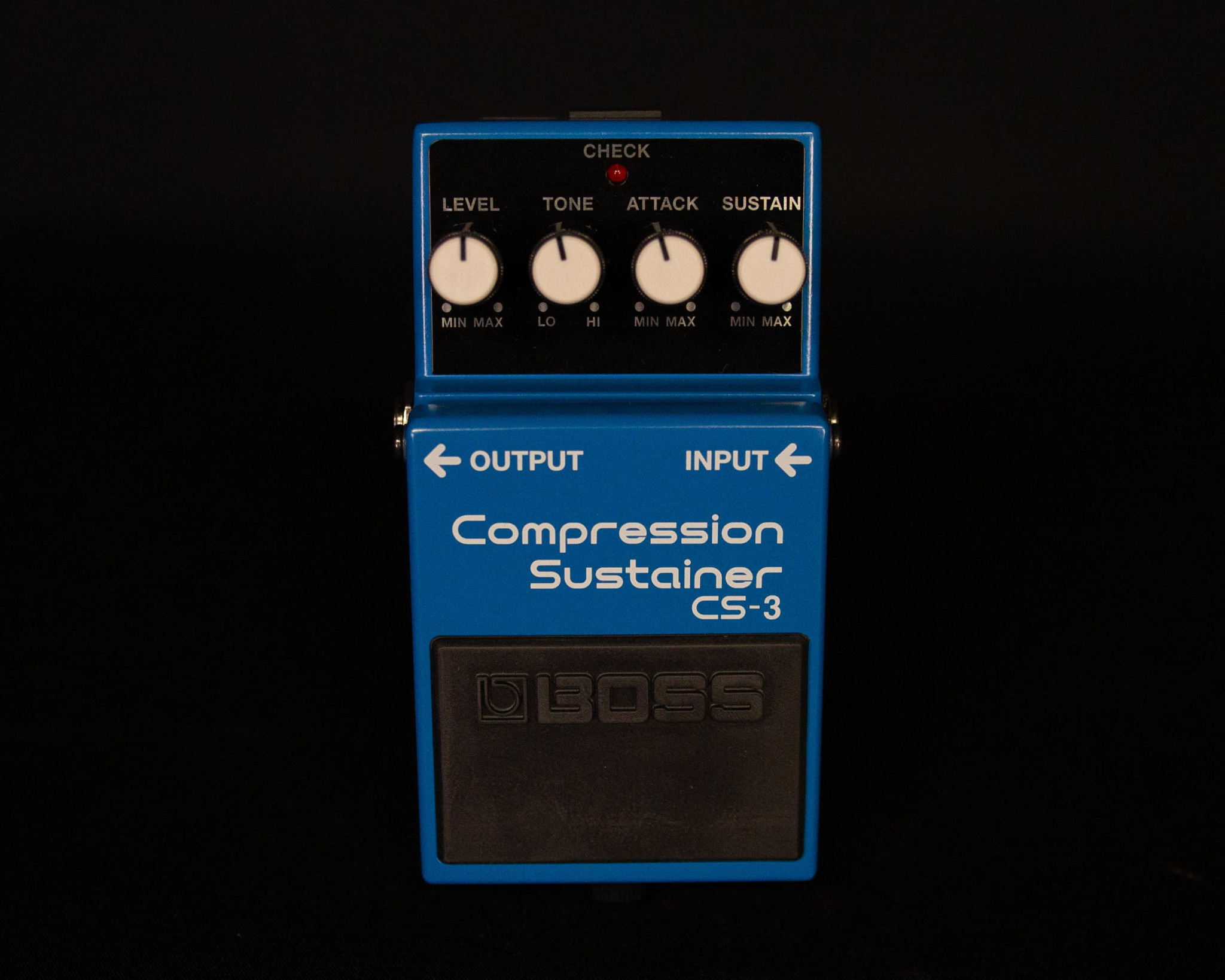

SUSTAIN knob ATTACK knob TONE knob LEVEL knob Pedal switch
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors

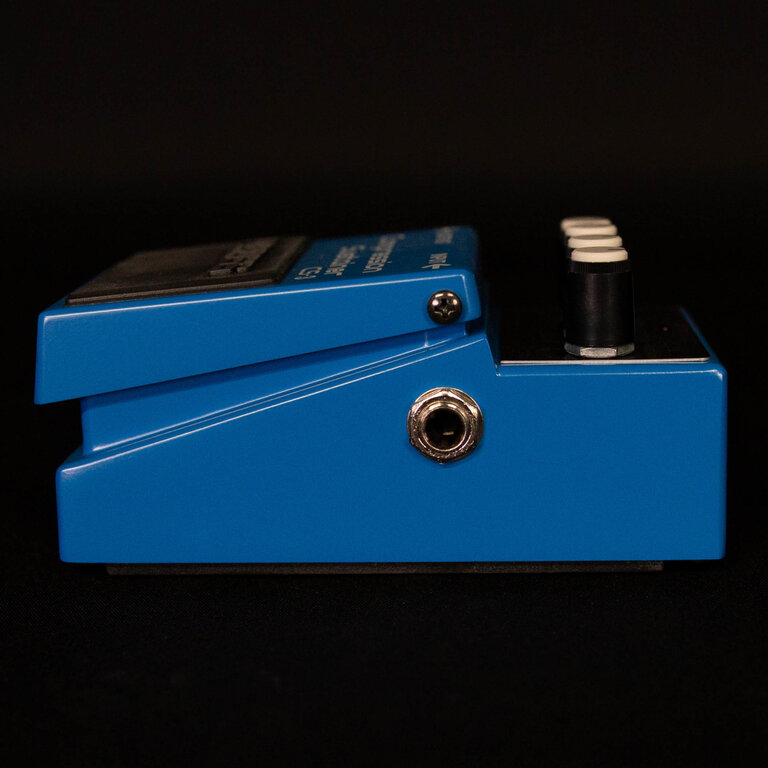

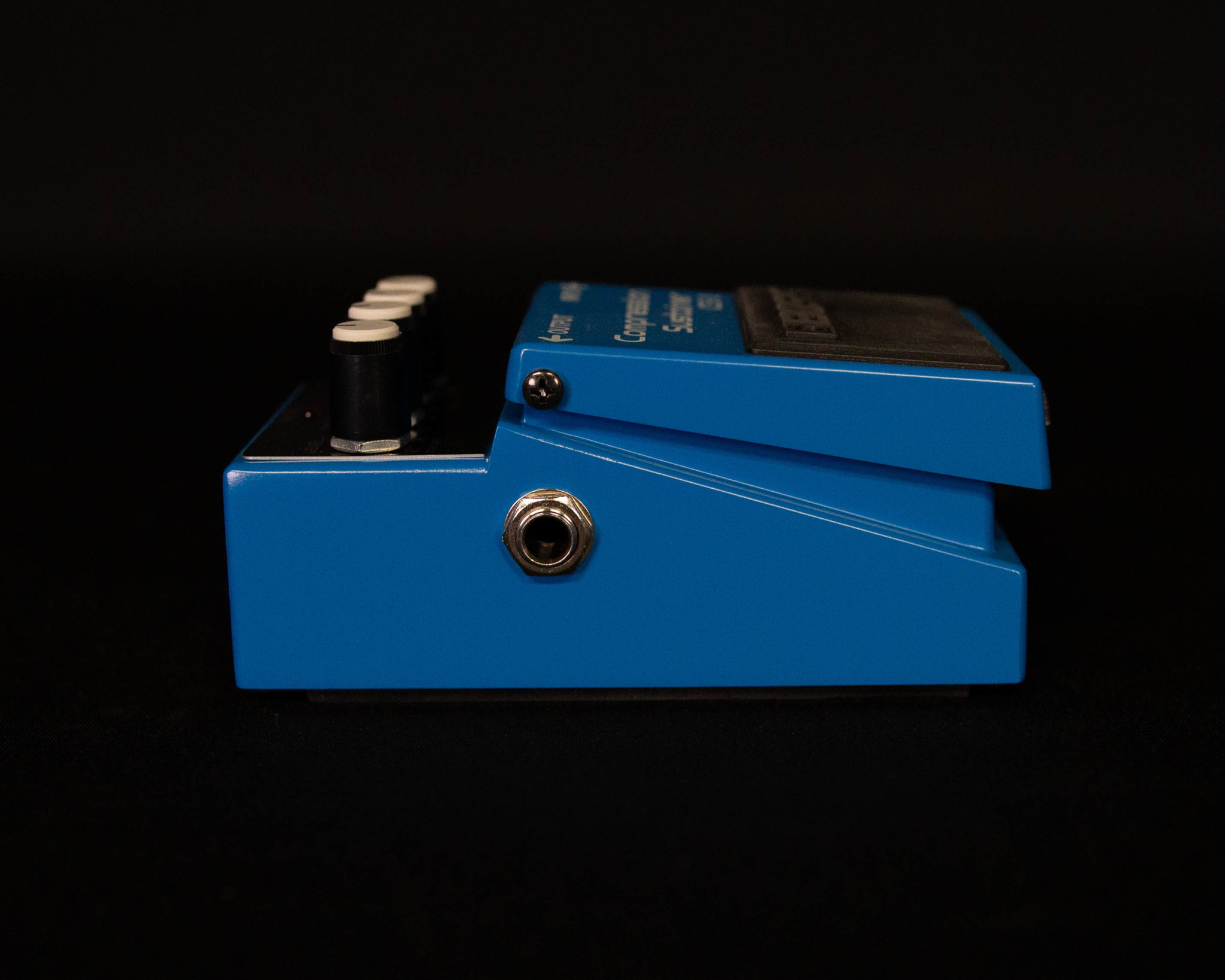

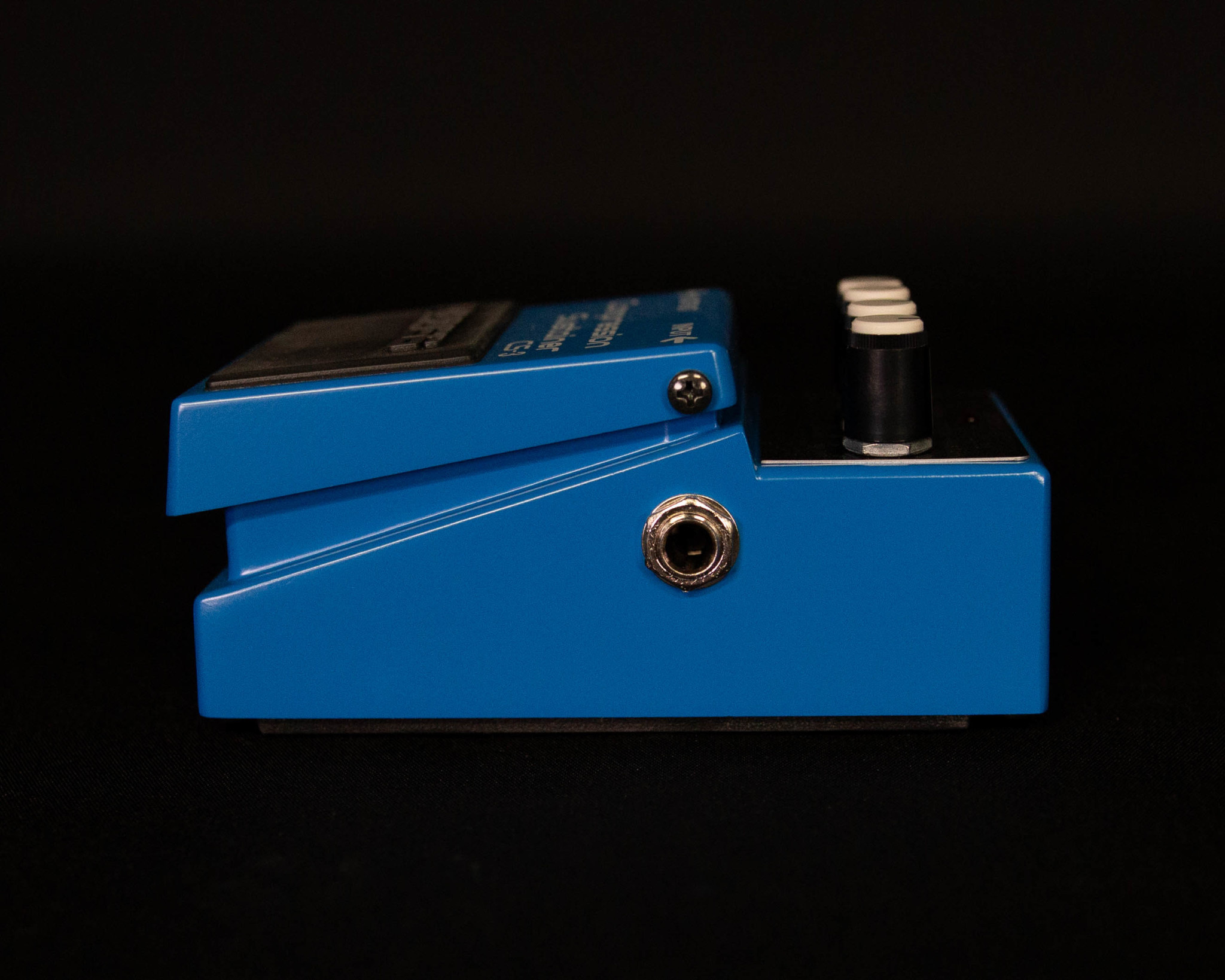

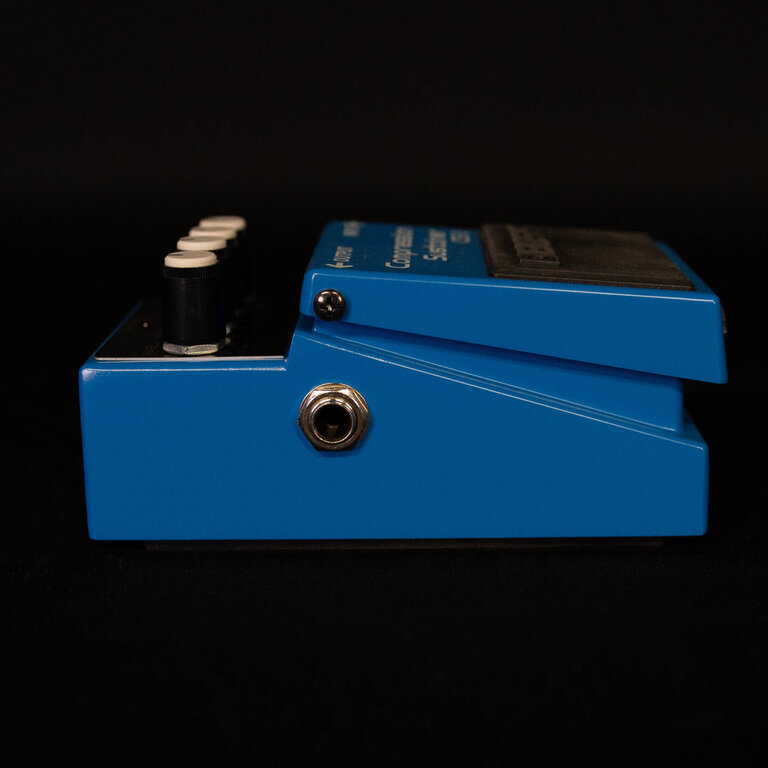

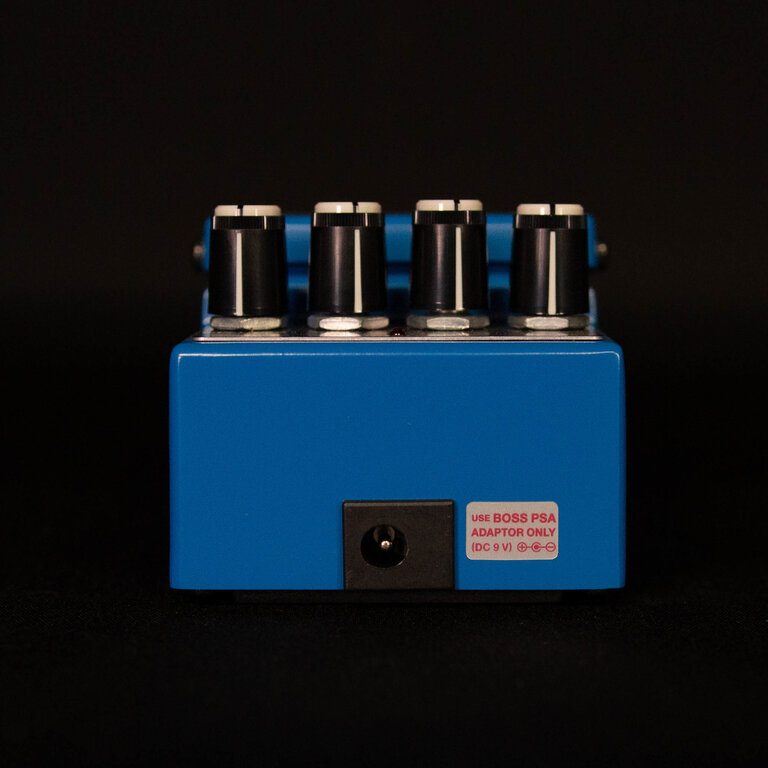

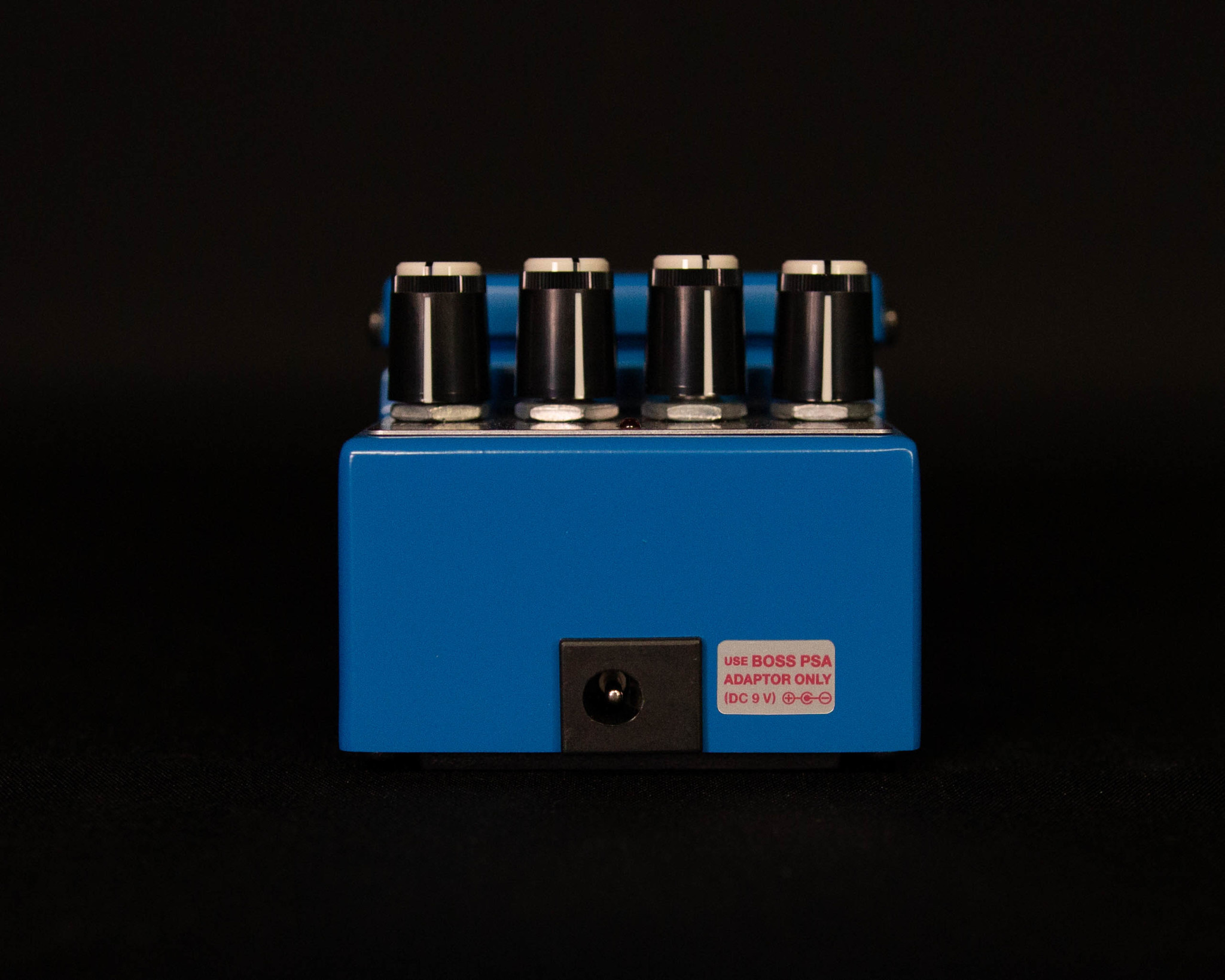

INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply
Carbon-zinc battery (9V, 6F22) or Alkaline battery (9V, 6LR61) AC adaptor (PSA series: sold separately)
Expected battery life under continuous use
Carbon: Approx. 10.5 hours Alkaline: Approx. 26 hours *These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Dry battery/9 V type (6F22)
Options (sold separately)
AC adaptor: PSA series
Depth
129 mm 5-1/8 inches
Height
59 mm 2-3/8 inches
Weight (including battery)
380 g 14 oz
