BOSS FS-6 Dual Footswitch

Two switches in one, BOSS’s FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.

FEATURES

• Each footswitch can be assigned latch- or momentary-type
• Stereo input jack for single stereo cable connection
• Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
• Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U

SPECIFICATIONS

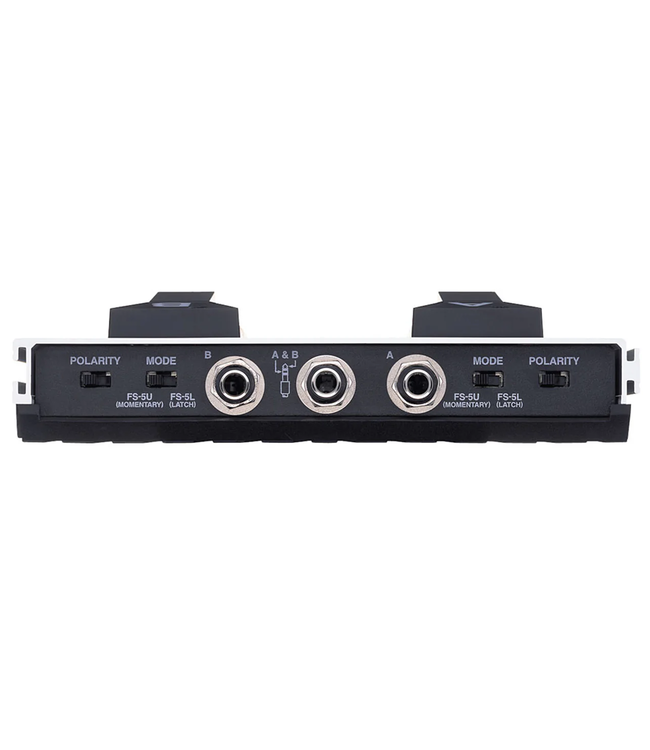

• Controls: Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B
• Connectors: Jack A, Jack B (1/4 inch phone type)
  Jack A & B (TRS 1/4 inch phone type)
• Power Supply: DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)
• Current Draw: 8 mA (max.)
• Accessories: Dry battery/9 V (6F22), Owner's Manual

SIZE AND WEIGHT ( INCL. BATTERY )

• Width: 88 mm
  7-7/16 inches
• Depth: 91 mm
  3-5/8 inches
• Height: 43 mm
  1-3/4 inches
• Weight: 470 g
  1 lbs. 1 oz.
