Nominal Input Level
-20 dBu
Nominal Output Level
-20 dBu
Recommended Load Impedance
10 k ohms or greater
Controls

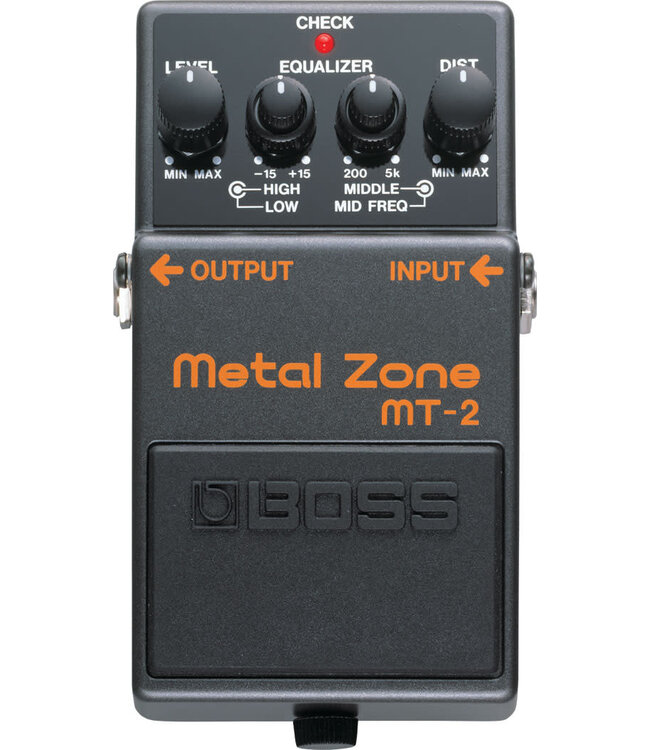

DIST knob EQUALIZER MIDDLE/MID FREQ knob EQUALIZER HIGH/LOW knob LEVEL knob Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Expected battery life under continuous use
Carbon: Approx. 12.5 hours Alkaline: Approx. 23.5 hours *These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Depth
129 mm 5-1/8 inches
Height
59 mm 2-3/8 inches
Weight (including battery)
385 g 14 oz
