Nominal Input Level
-20 dBu
Nominal Output Level
-20 dBu
Recommended Load Impedance
10 k ohms or greater
Controls

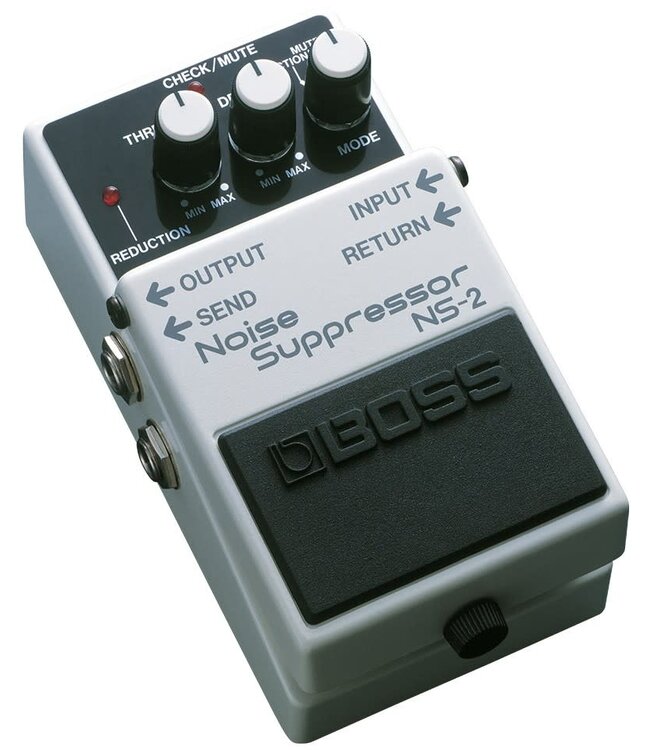

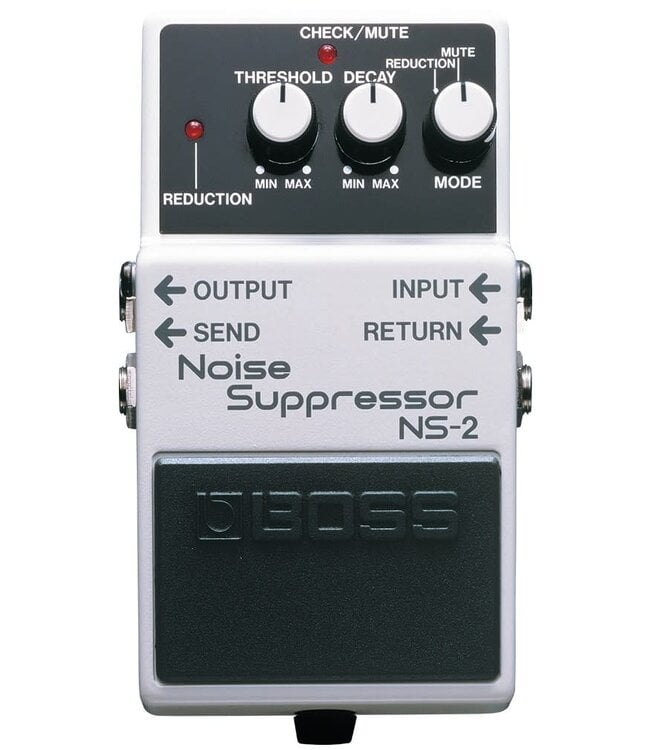

MODE selector switch DECAY knob THRESHOLD knob Pedal switch
Indicator
CHECK/MUTE indicator (Used for indication of check battery) REDUCTION indicator
Connectors

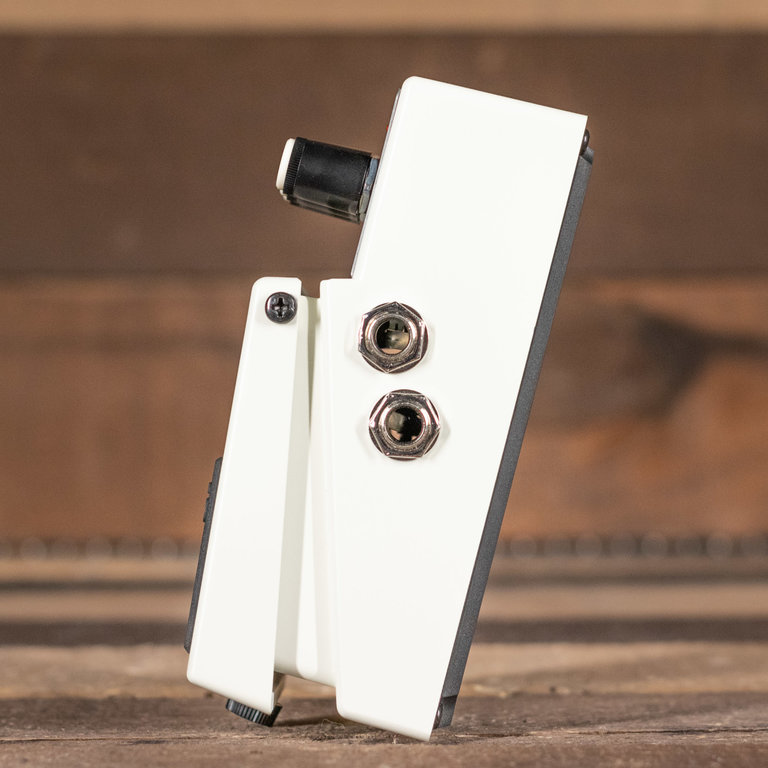

INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type SEND jack: 1/4-inch phone type RETURN jack: 1/4-inch phone type DC IN jack 9V DC OUT jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Expected battery life under continuous use
Carbon: Approx. 11 hours Alkaline: Approx. 24.5 hours *These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series Parallel DC Cord: PCS-20A
Depth
129 mm 5-1/8 inches
Height
59 mm 2-3/8 inches
Weight (including battery)
415 g 15 oz
