Maximum Number of Effects
8 modes HALL PLATE ROOM SPRING MODULATE +DELAY SHIMMER DYNAMIC
Nominal Input Level
-20 dBu
Nominal Output Level
-20 dBu
Recommended Load Impedance
10 k ohms or greater

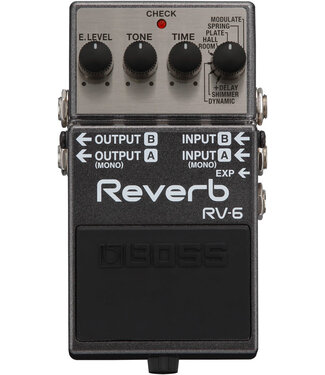

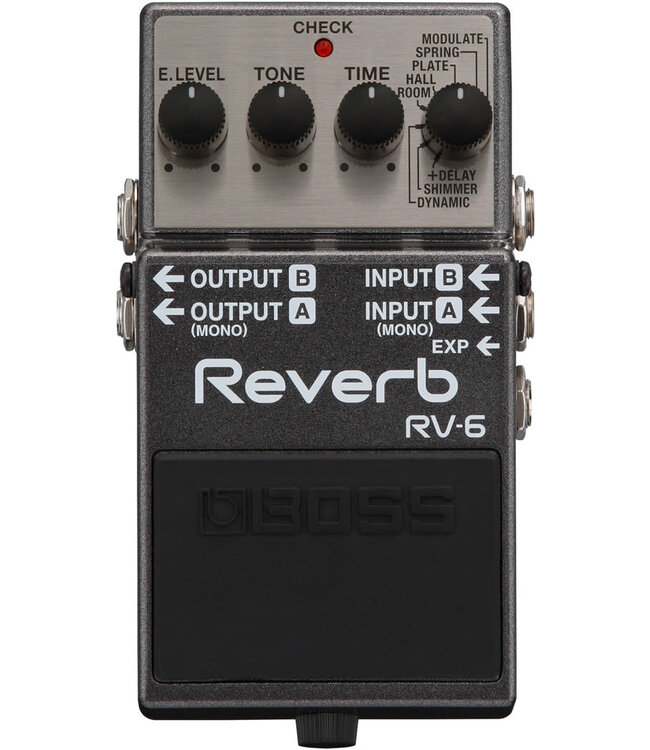

Controls
Pedal switch E.LEVEL knob TONE knob TIME knob MODE knob
Indicator
CHECK indicator (Serves also as battery check indicator)

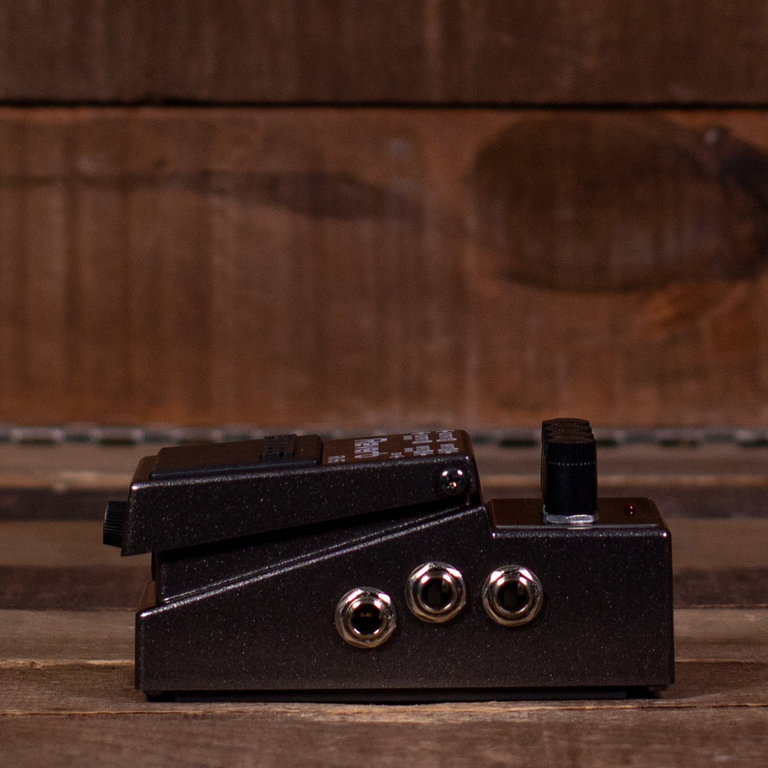

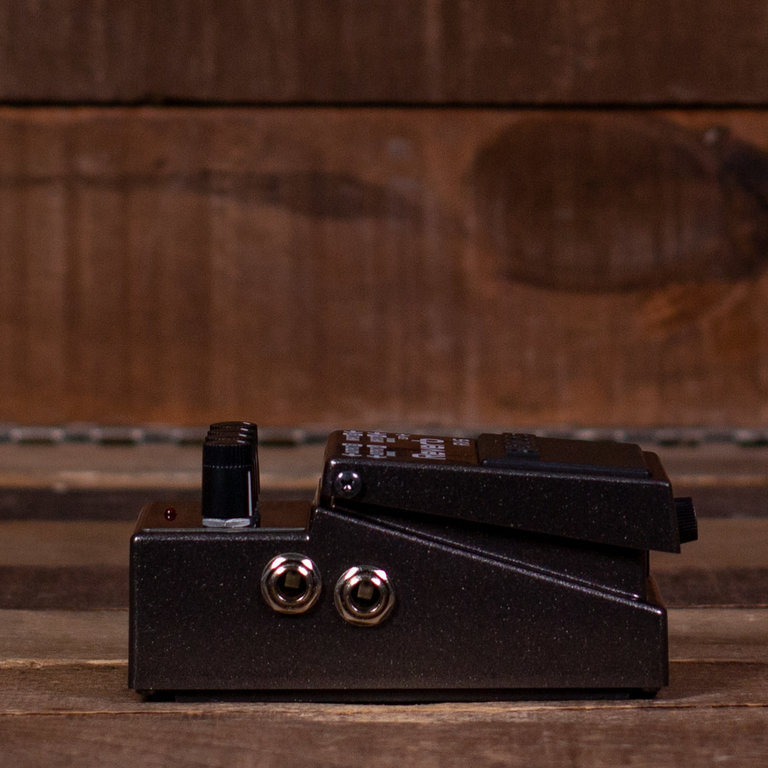

Connectors
INPUT-A (MONO) jack INPUT-B jack OUTPUT-A (MONO) jack OUTPUT-B jack EXP jack AC adaptor jack (DC 9 V)
Power Supply
Alkaline battery (9V, 6LR61) AC adaptor (sold separately)
Expected battery life under continuous use
Alkaline: Approx. 3 hours
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9V, 6LR61)
Options (sold separately)
AC adaptor: PSA series Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5Size and Weight
Depth
129 mm 5-1/8 inches
Height
59 mm 2-3/8 inches
Weight (including battery)
450 g 1 lb
