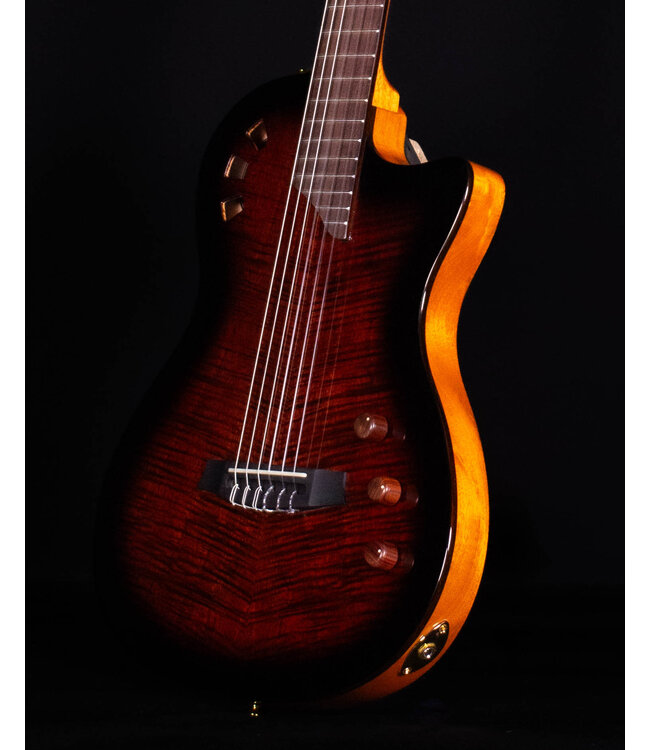

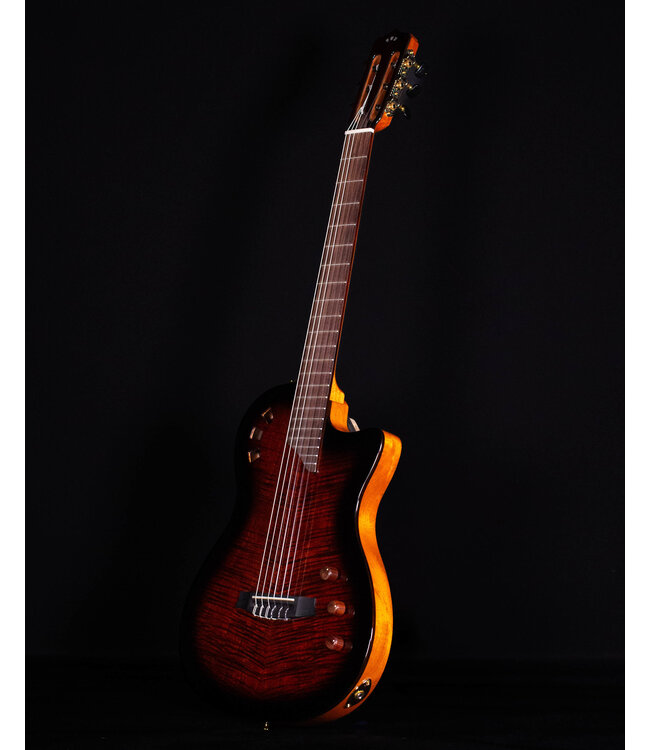

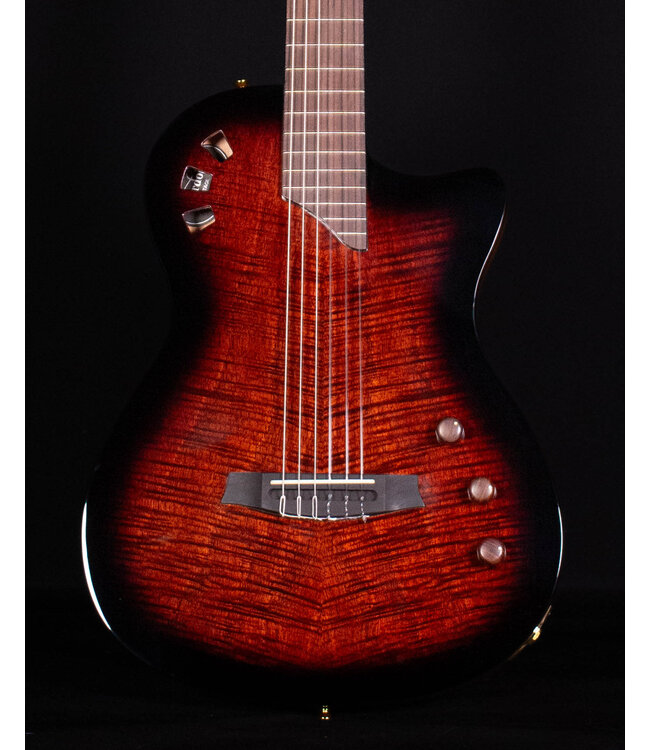

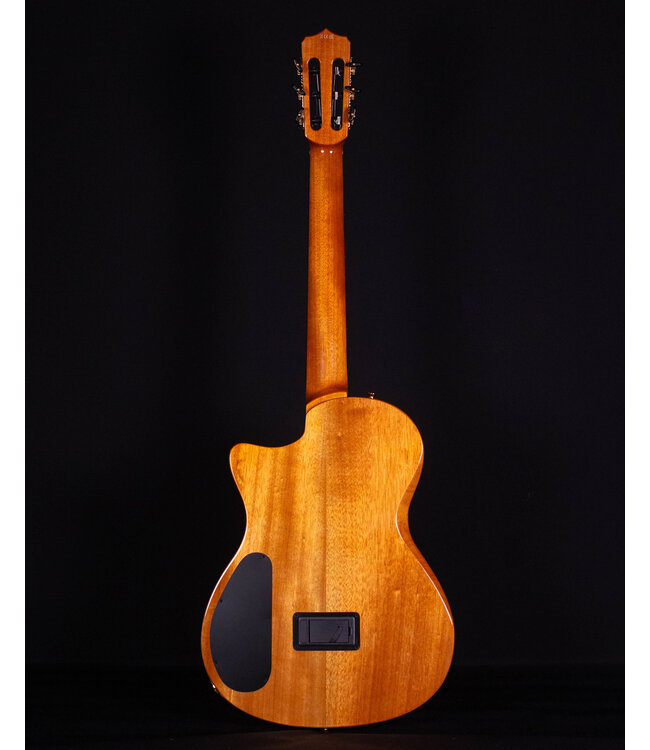

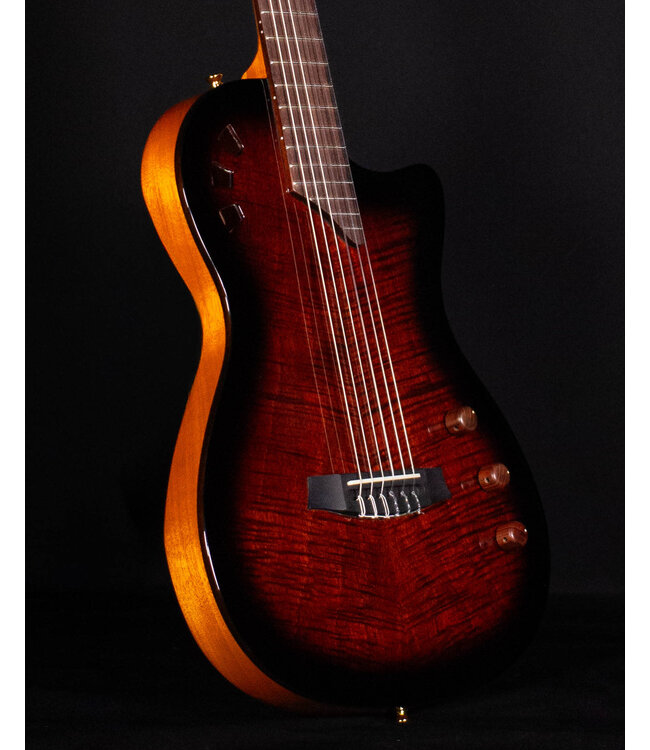

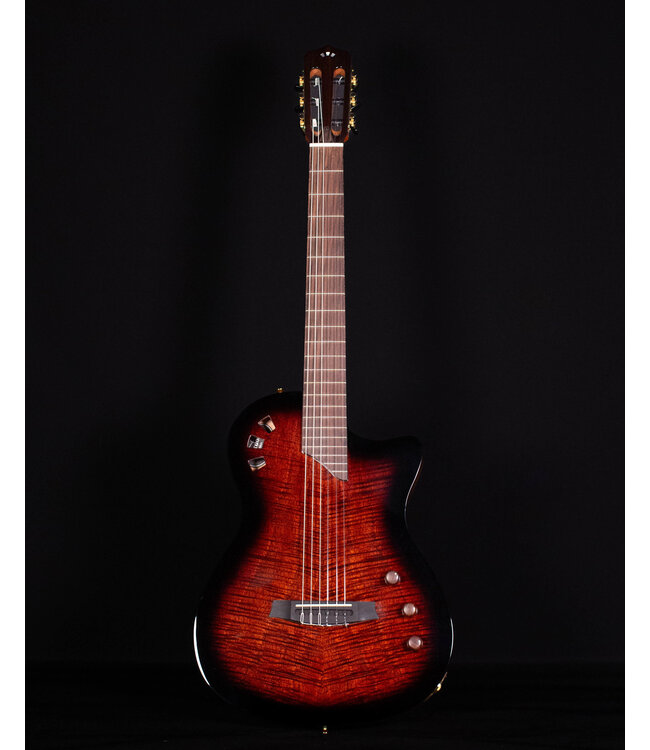

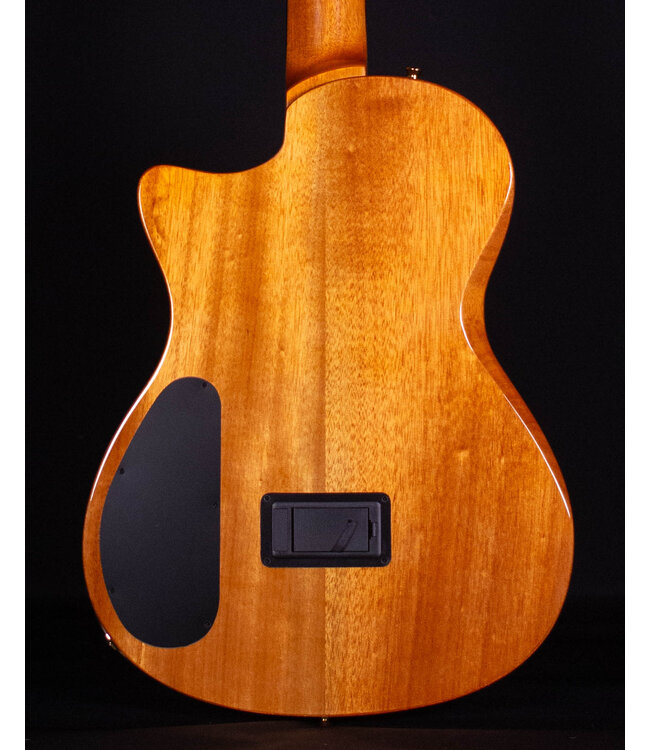

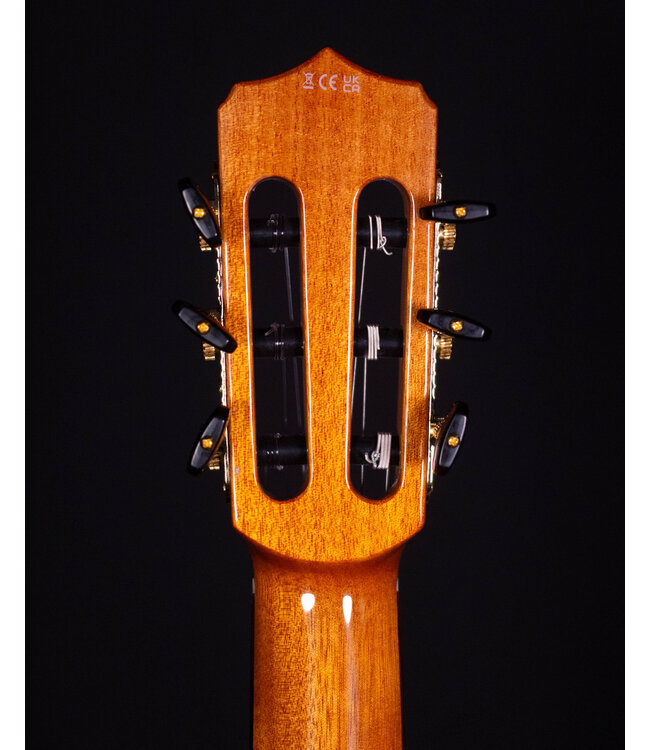

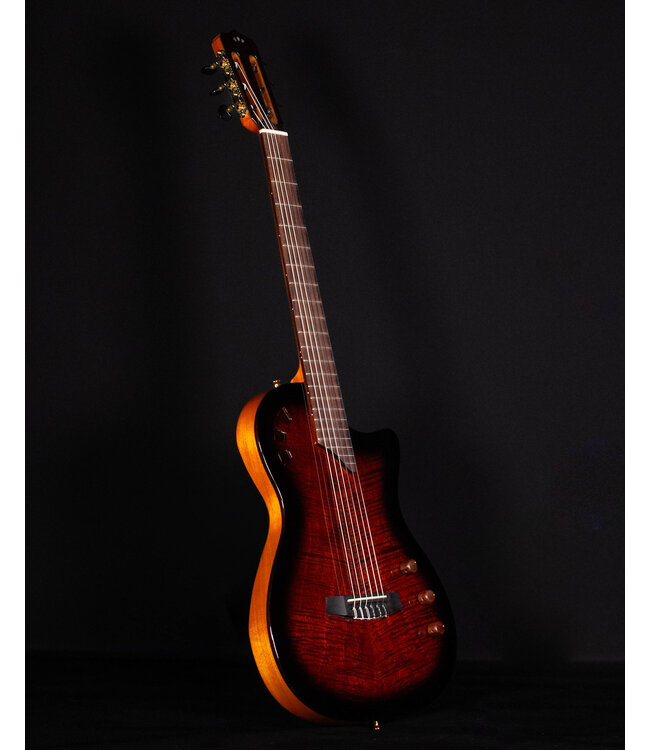

Created to bring you the same unplugged acoustic Córdoba sound across all platforms, the Stage Edge Burst combines a solid Spruce top and Flamed Maple Veneer with a 1.5” chambered Mahogany body, resulting in an incredibly resonant and responsive stage ready electric guitar. The Stage features Córdoba’s unique Fusion Neck with a comfortable 48mm nut width and fast 16” Fretboard Radius, which is slightly thinner than a traditional nylon string guitar and provides a playing experience closer to a steel string guitar. At the heart of the Stage is the revolutionary Stage Pickup System, which is equipped with easy-to-access Volume, EQ, and Body Blend knobs allowing players to dial in their preferred acoustic tone on stage or in the studio. Includes a recycled nylon gig gag made from microplastics and discarded fishing nets to reduce global impact.

SPECIFICATIONS

• Build: Fusion
• Construction: Chambered Solid Body
• Body Top: Solid Spruce with Flame Maple Veneer (*Select production runs contain an Okume stabilizing inner layer)
• Exclusive: No
• Family: Cutaway & Electric
• Does it contain shell?: Yes - MOP
• Shipper Carton Dimensions: 112 x 43 x 15 (cm)
• Top Bracing Pattern: Custom 3 pc. Fan
• Soundhole Diameter: N / A
• Rosette: N / A
• Top Purfling Inlay: N / A
• Back Bracing: Ladder Bracing
• Back Binding: N / A
• Side Purfling Inlay: N / A
• Back Center Strip: N / A
• Back and Sides Wood: Chambered Mahogany
• Back Purfling Inlay: N / A
• Side Purfling Inlay Pattern & Dimensions: N / A
• Top Purfling Pattern & Dimensions: N / A
• Tail Strip: N / A
• Frets to Body: 14
• Top Binding: Pau Ferro
• Rosette Pattern & Dimensions: N / A
• Back Purfling Inlay Pattern & Dimensions: N / A
• Neck Material: Mahogany
• Scale Length: 650mm (25.6")
• Compatible Case 1: N / A
• Neck Construction: Traditional 3 Piece Neck
• Neck Joint: Set Neck
• Neck Shape: C Shape
• Nut Width: 48mm (1 7/8")

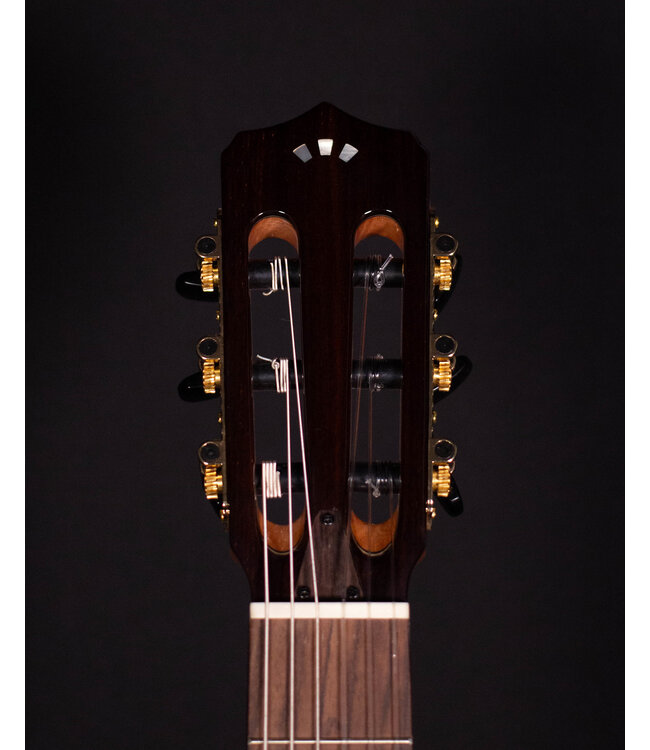

• Headplate: Pau Ferro
• Headstock Logo: Cordoba Arches Logo - Mother-of-Pearl
• Neck Thickness 1st Fret: 20mm
• Neck Thickness 9th Fret: 23mm
• Truss Rod: Dual Action
• Truss Rod Wrench: 4mm Allen Key
• Fingerboard Material: Pau Ferro or Rosewood (dependent on production date)
• Fingerboard Inlays: N / A
• Frets Total: 22
• pcid: 1
• Compatible Case 2: N / A
• Compatible Gig Bag 1: N / A
• Fingerboard Binding: Matching Fingerboard Wood (unbound end)
• Color: Edge Burst (EB)
• Finish: Gloss Polyurethane
• Fret Dimensions: 2.0mm (W) x 1.1mm (H)
• Bridge Material: Pau Ferro or Rosewood (dependent on production date)
• Saddle Material: Compensated Bone
• Nut Material: Bone
• Tuning Machine Buttons: Black
• Tuning Machine Ratio: 14:1
• Tuning: E-A-D-G-B-E
• Tuning Machines: Cordoba Black and Gold with Black Buttons
• Pickup Type: Undersaddle Piezo + Body Sensors
• Replacement Tuning Machine - Treble: 05708 - Cordoba Tuner Blossom BLK/GLD w/EB BS BTN Treble
• Tap Plate: N / A
• Electronics: Fishman Stage Pickup System
• Battery Pack Installation Location: Back
• Replacement Tuning Machine Button: 03512 - Cordoba Tuner Button Ebony Bisquette EB BS BTN
• Controls: Master Volume, EQ and Body Blend
• Battery Pack: Battery Box - 9V
• Tuning Machines Vendor & Model: Der Jung DJCB1GK-A1B (S3)
• Replacement Tuning Machine - Bass: 05709 - Cordoba Tuner Blossom BLK/GLD w/EB BS BTN Bass
• Strings: Savarez Alliance /Cantiga High Tension 510AJ
• Included Case: Cordoba Deluxe Gig Bag
• Upper Bout Width: 270mm (10 5/8")
• Number of Strings: 6
• Lower Bout Width: 352mm (13 7/8")
• Target Instrument Weight: 5 lbs / 2.3 kg
• Body Depth Upper Bout: 38mm (1 1/2")
• Body Depth Lower Bout: 38mm (1 1/2")
• Waist Width: 226mm (8 7/8")
• Replacement Truss Rod Cover: 05022 - Cordoba Truss Rod Cover Stage Rosewood
• Replacement Truss Rod Wrench: 008-0000-001 - Truss Rod Wrench 4mm Allen Key
• Body Length: 457mm (18")
• Replacement Gig Bag: 03544 - Cordoba Deluxe Gig Bag Stage BLU/BRN
• Replacement Other Cover: 05021 - Cordoba Battery Box Ring Stage BLK
• Replacement Case: N / A
• Replacement Output Jack Plate: 05018 - Cordoba Jack Plate GLD
• Replacement Control Cavity Cover: 05020 - Cordoba Control Cavity Cover Stage BLK
• Replacement Battery Box & Output Jack: N / A
• Replacement Control Knob: 05017 - Cordoba Knob Walnut w/Indicator Dot Set Screw
• Replacement Saddle: 01066 - Cordoba Saddle Bone 6 String Guitar Radiused 80mm x 3mm
• Replacement Pickup & Preamp System: 05016 - Cordoba Pickup Fishman Stage Guitar System Complete
• Replacement Bridge Pins: N / A
• Replacement Pickguard: N / A
• Replacement Strap Button: 05019 - Cordoba Strap Buttons GLD
• Replacement Nut: 01053 - Cordoba Nut Bone 6 String Guitar 48mm x 5mm
• Overall Length: 997mm (39 1/4")
• Country of Origin: China
• Compatible Case 3: N / A
• Nut String Spacing: 39mm (1 1/2")
• Compatible Gig Bag 2: N / A
• psid: 4
