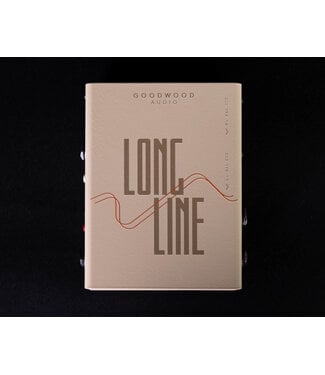

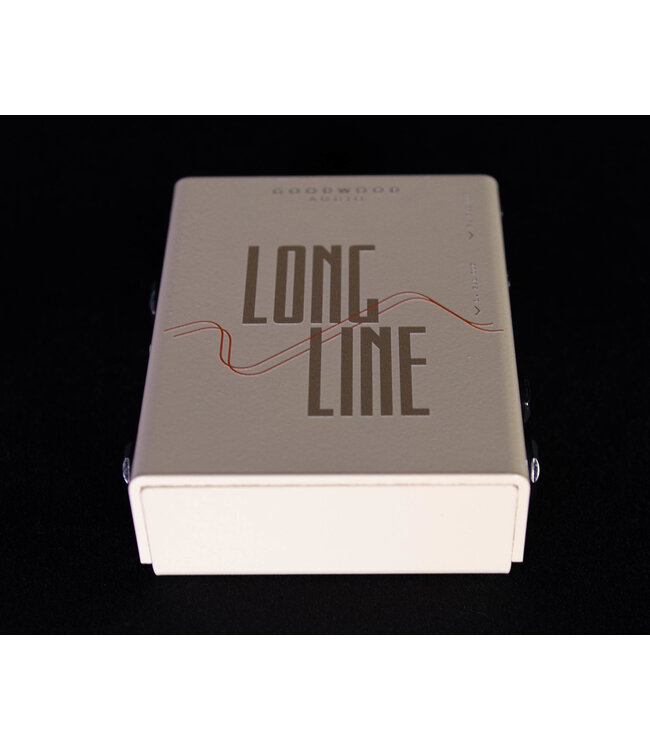

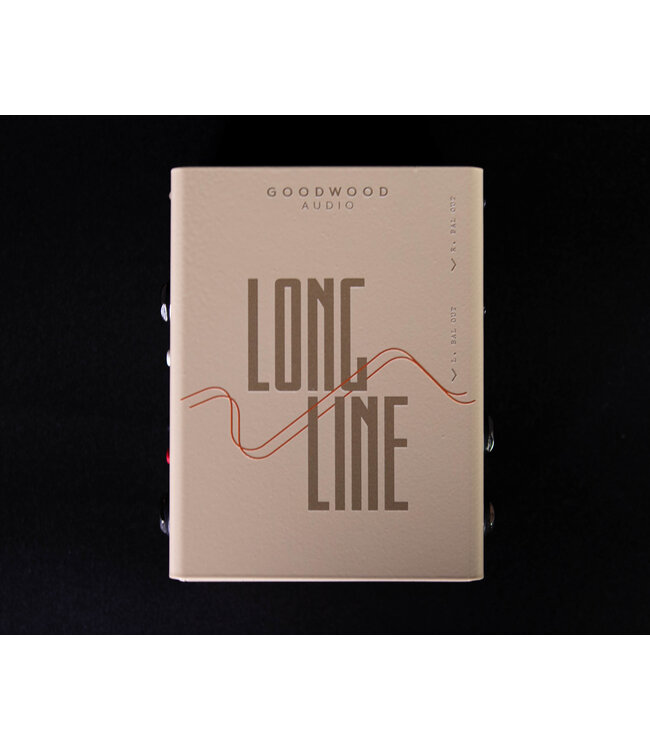

Goodwood Audio Long Line

Flexible Outputs:

• Outputs available in mono, dual mono, and stereo configurations via 1/4" and XLR connections.

LongLine Outputs:

• Both XLR and 1/4" outputs are mirrored, ensuring consistency.
• Sum push button operates across all outputs (XLR and 1/4").

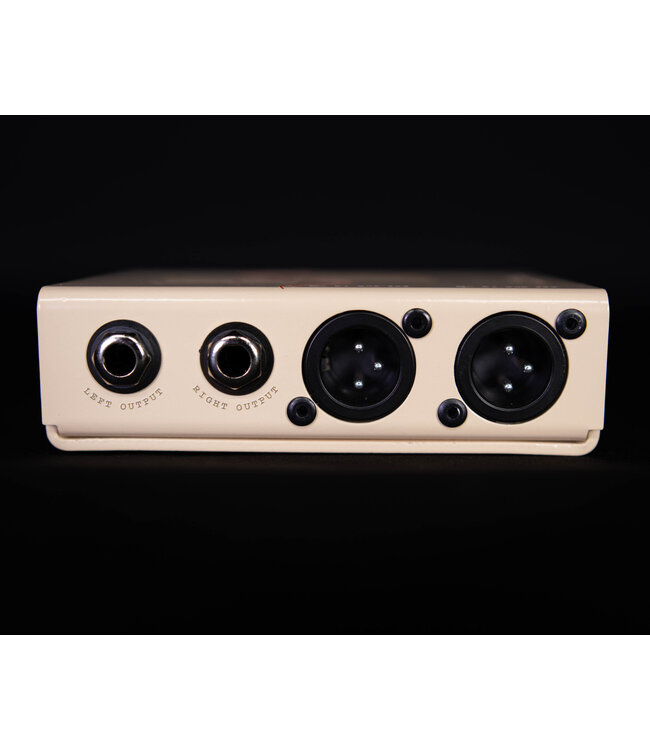

XLR Outputs:

• Can function as active DI for direct connection to sound desks, interfaces, or DAWs.
• Phantom power protected.
• Can be used as a line driver, enabling signal transmission up to 300 feet without loss.

Line Driver (XLR Outputs):

• Allows for remote placement of amplifiers.
• Utilizes RCV for conversion back to unbalanced 1/4" signals.

RCV:

• Passive box for receiving balanced signals from LongLine.
• Converts stereo XLR signal to unbalanced 1/4" outputs.
• Suitable for stereo/dual mono or mono signals.

Summing:

• Two modes available: Stereo Sum and Split Sum.
• Mix Mode for blending signals from different sources.
• Option to run stereo XLR with mono 1/4" outputs.

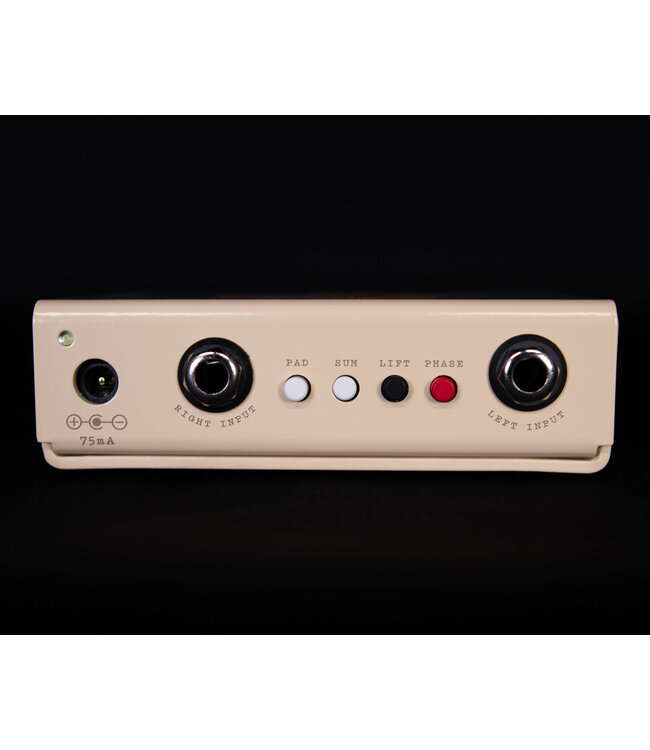

Ground Lift & Phase Correction:

• Ground lift and phase correction available for all outputs.
• Corrects ground loops and phase mismatches easily.

Specifications:

• Power Requirement: 9V DC center negative plug (LongLine internally doubles voltage for higher headroom)
• LongLine Current Draw/Power: 75mA, Center Neg 2.1mm
• RCV Current Draw/Power: N/A - Passive
• LongLine Dimensions: 120mm x 94mm x 34mm
• RCV Dimensions: 112mm x 61mm x 38mm

LongLine:

• Input Impedance (Left In, Right In): 1 Megohm
• Output Impedance (1/4" Outputs): 500 ohms
• Output Impedance (XLR Outputs): Low
