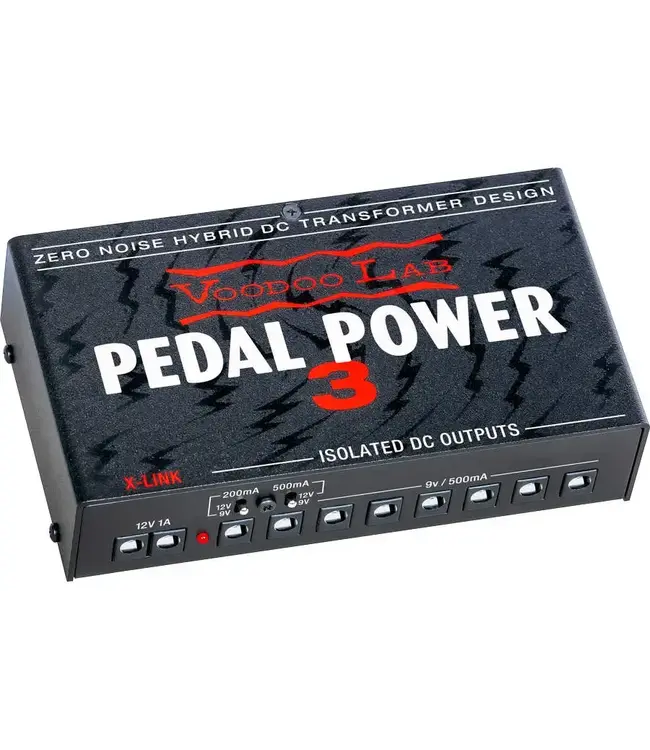

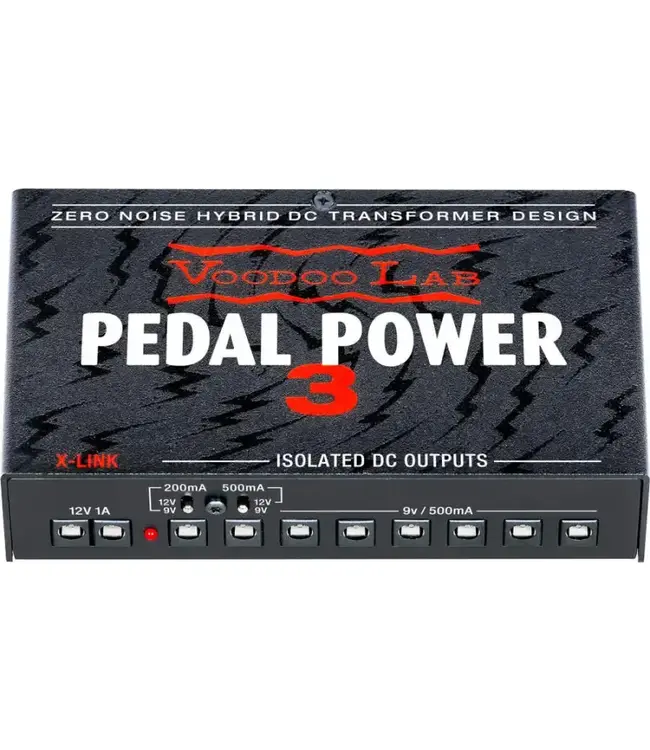

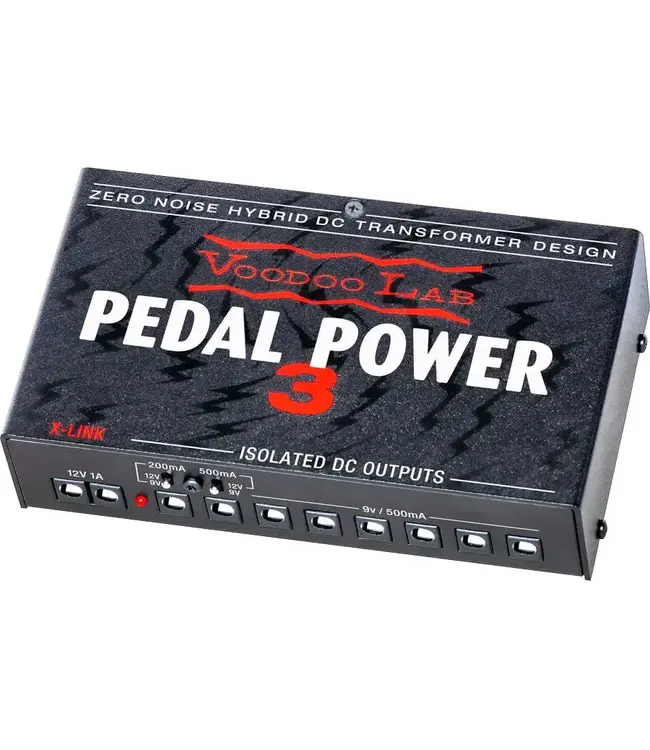

VooDoo Lab Pedal Power 3

The Voodoo Lab Pedal Power 3 is a high-performance, lightweight power supply designed to deliver clean, reliable power to a wide range of guitar pedals. It features eight isolated 9V DC outputs, each capable of supplying up to 500mA, ensuring that even the most power-hungry digital effects receive the necessary current without introducing noise or hum. The unit's hybrid DC transformer design, combined with linear regulation and advanced filtering, delivers audiophile-quality power, preserving the tonal integrity of your pedals. Additionally, the Pedal Power 3 includes two X-LINK expansion ports, allowing you to add up to 16 isolated outputs by connecting additional units like the Pedal Power X4 or X8, accommodating growing pedal setups.

Specifications:

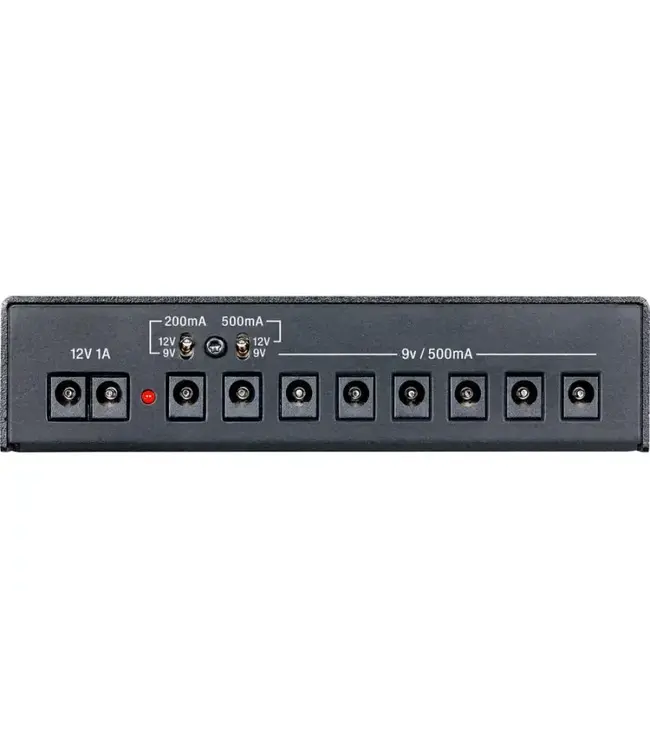

• Outputs: 8 isolated 9V DC outputs

  • 6 outputs at 9V DC, each delivering up to 500mA

  • 2 switchable outputs at 9V/12V DC, each delivering up to 500mA

• Expansion Ports: 2 X-LINK ports for connecting additional units (Pedal Power X4 or X8)

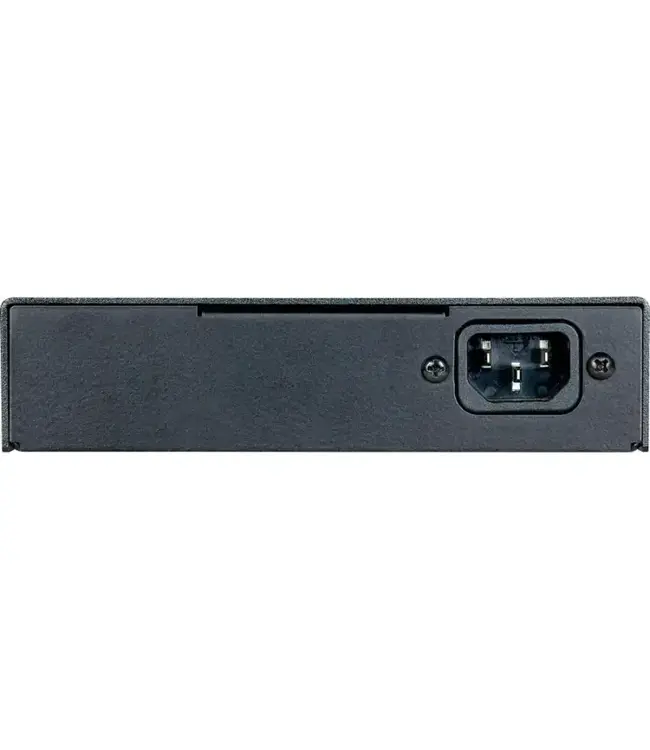

• Input Voltage: 100V–240VAC, suitable for international use

• Design: Hybrid DC transformer with linear regulation and advanced filtering

• Construction: Lightweight aluminum chassis

• Dimensions: 6” x 3.5” x 1.5” (152 x 89 x 38 mm)

• Weight: 0.9 lbs. (400g)

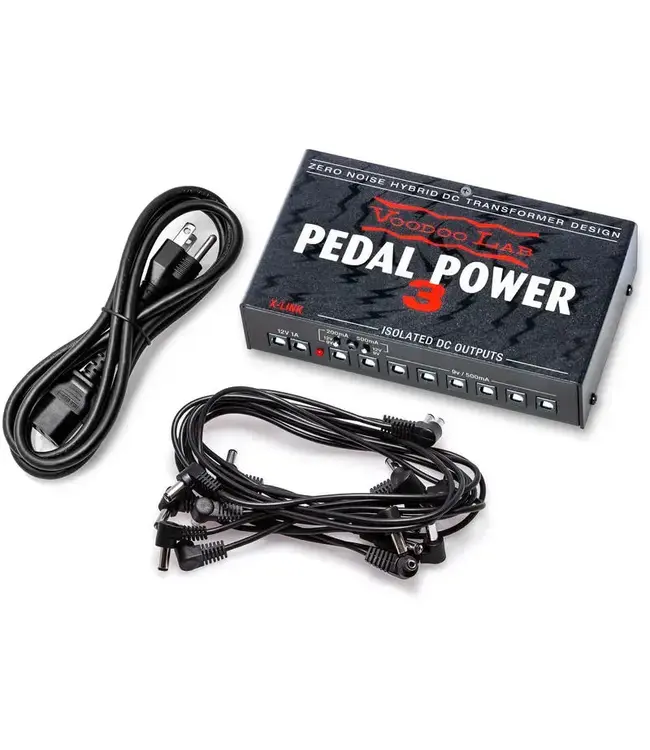

• Included Accessories: DC power cable kit and detachable AC line cable

• Warranty: 5-year warranty in North America

• Made in: U.S.A.

The Pedal Power 3 is ideal for musicians seeking a reliable and expandable power solution for their pedalboards, ensuring optimal performance and minimal noise interference.
