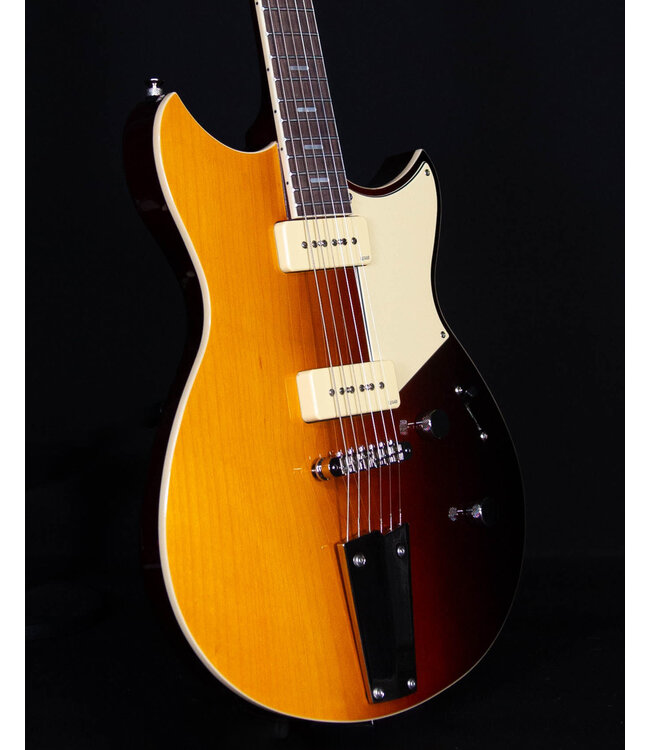

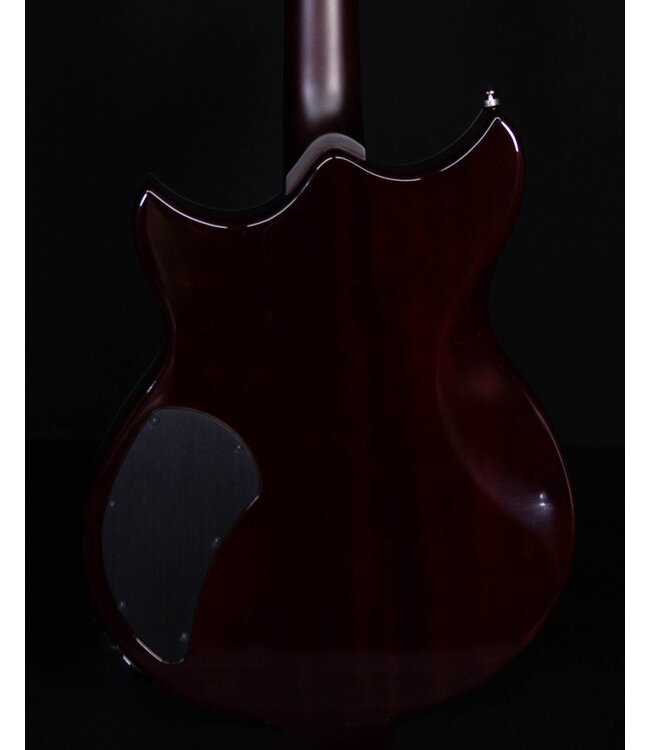

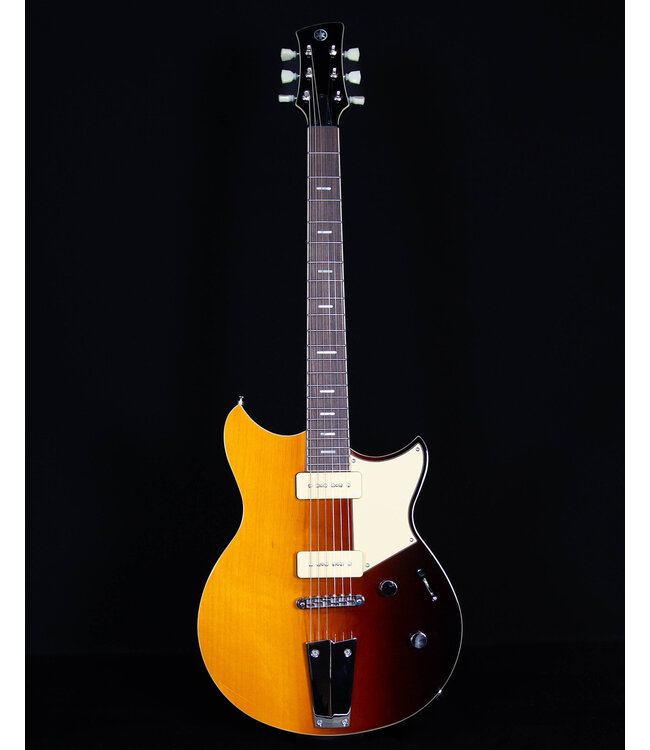

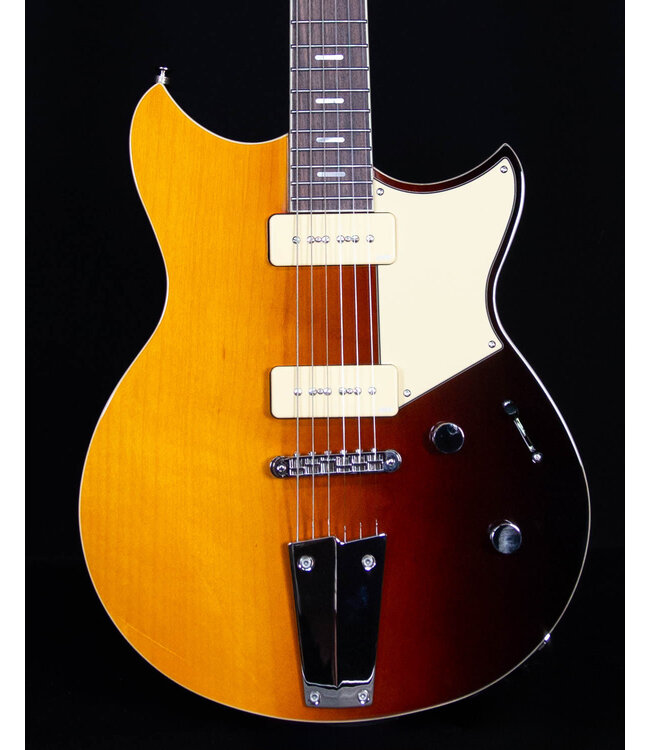

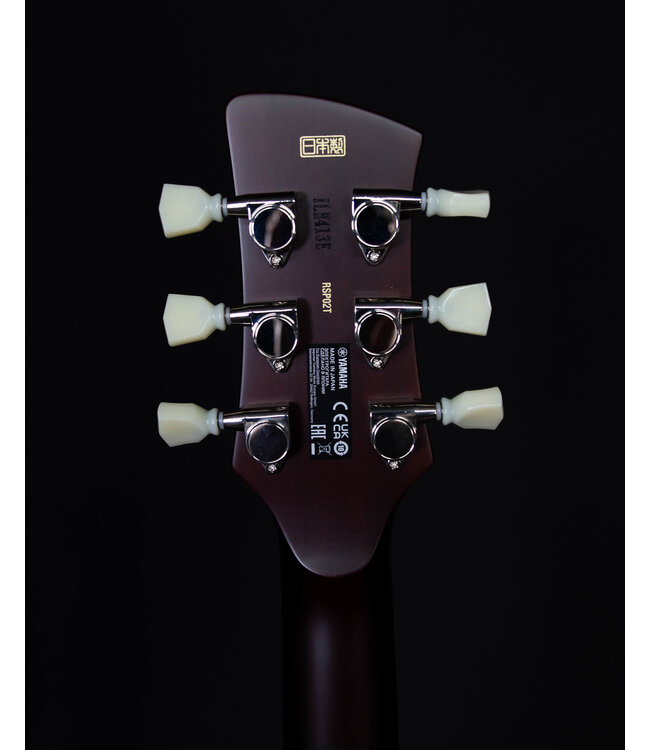

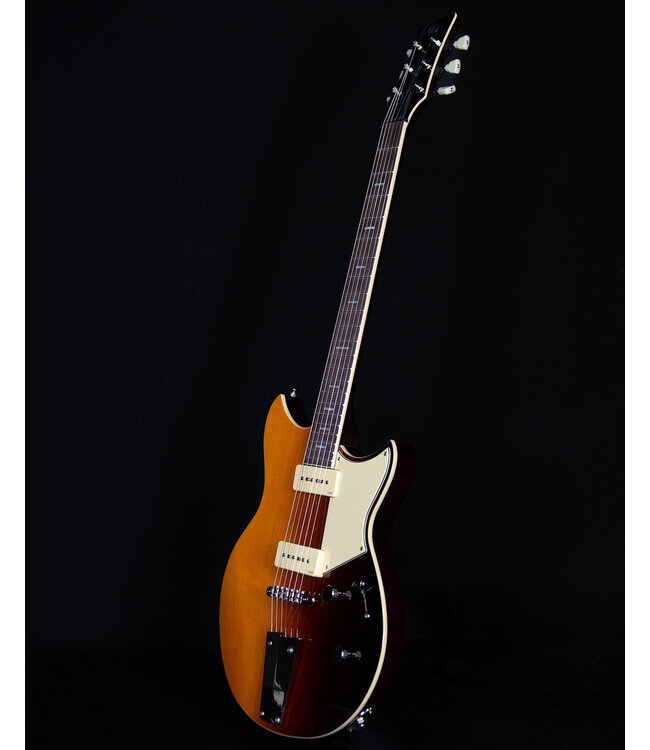

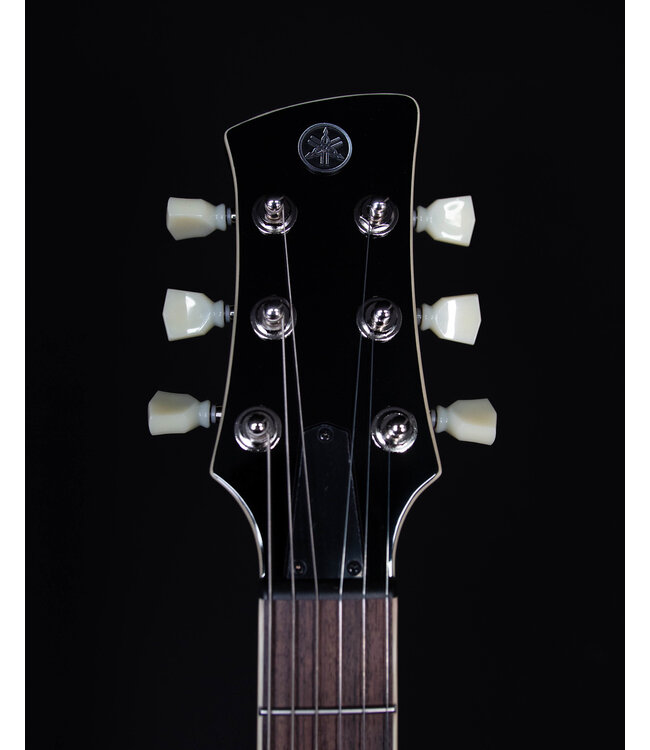

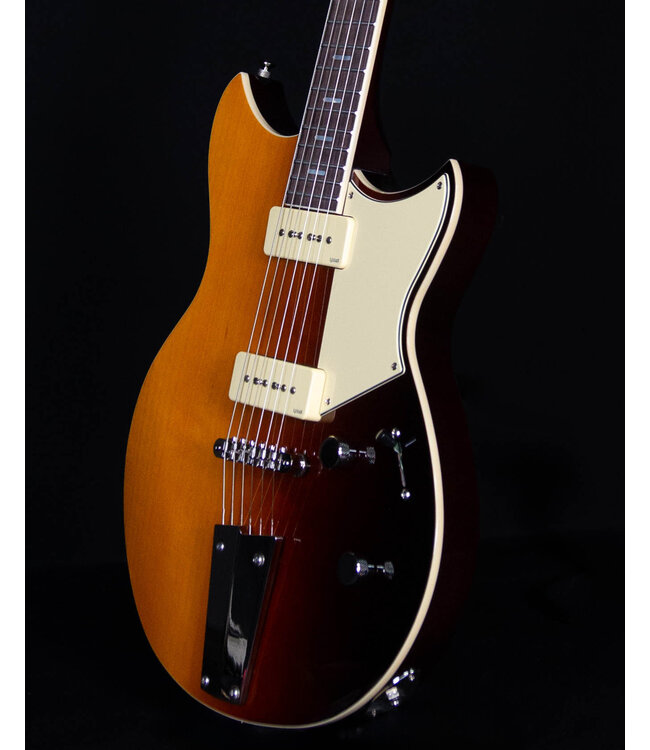

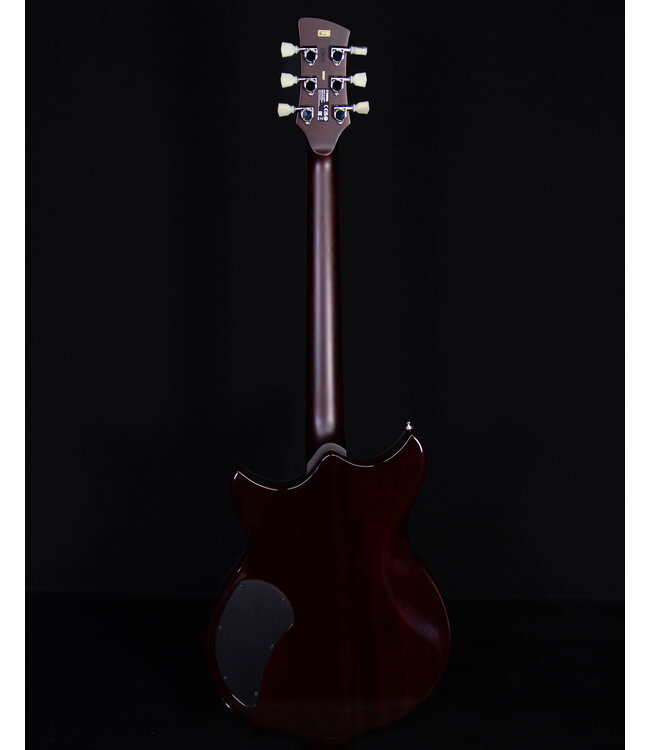

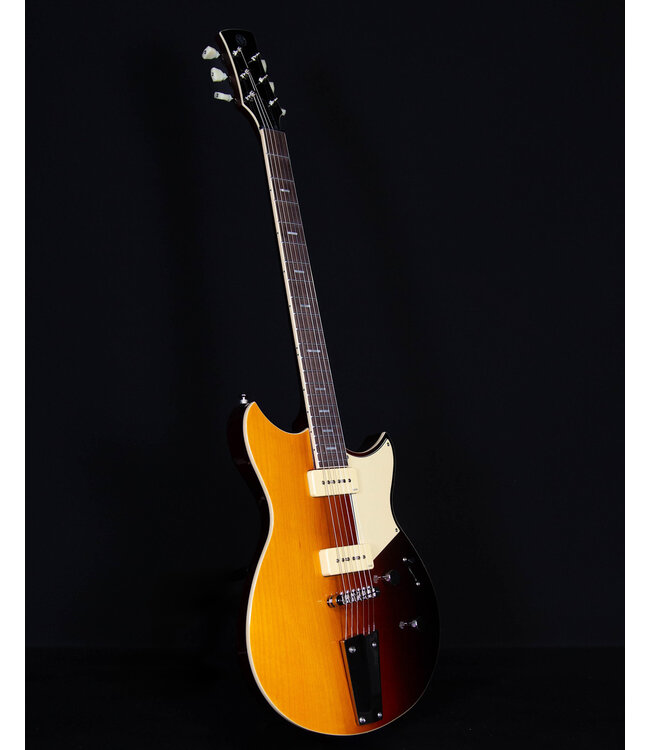

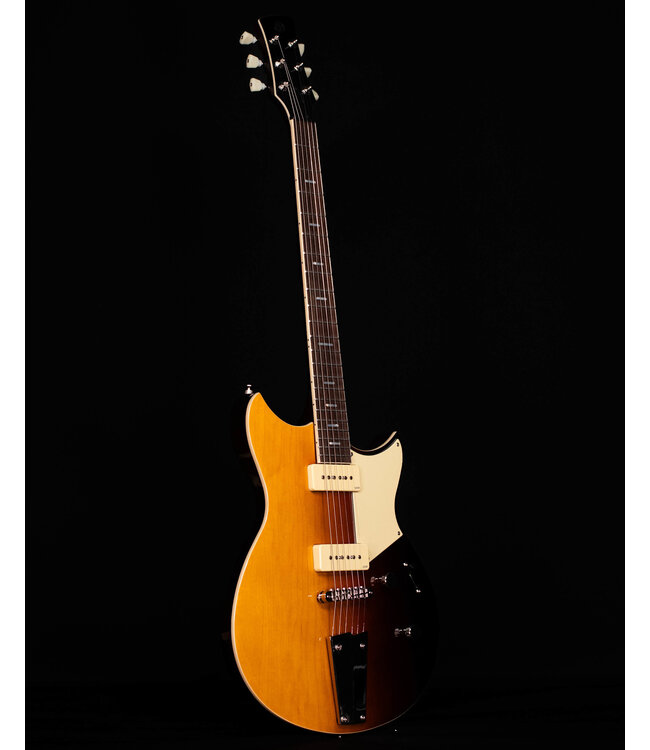

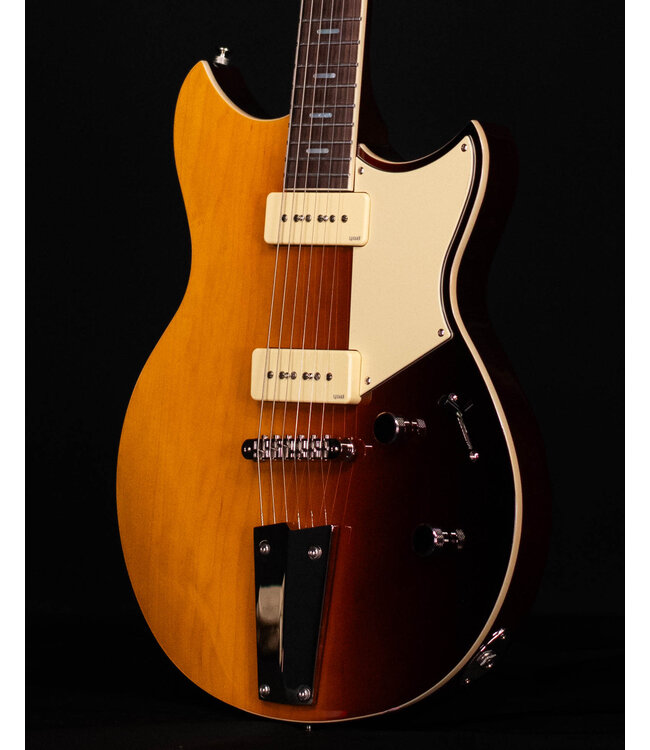

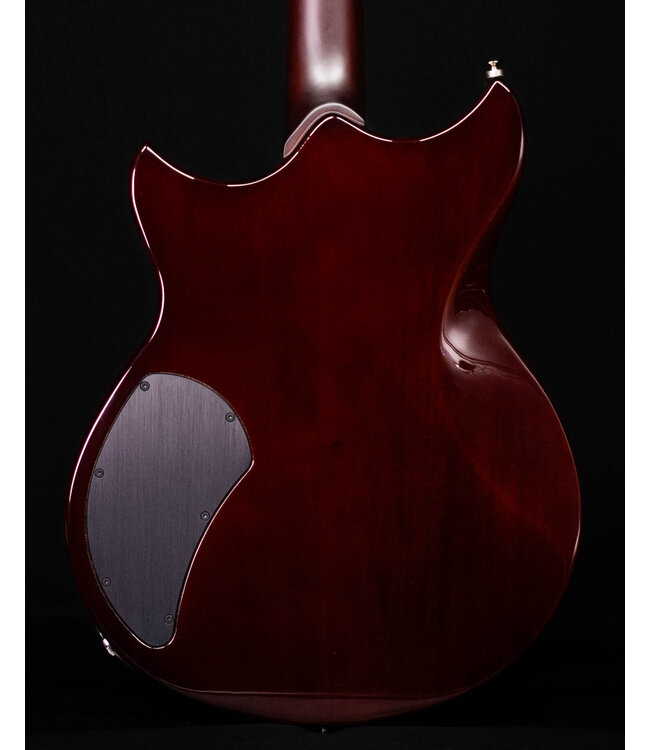

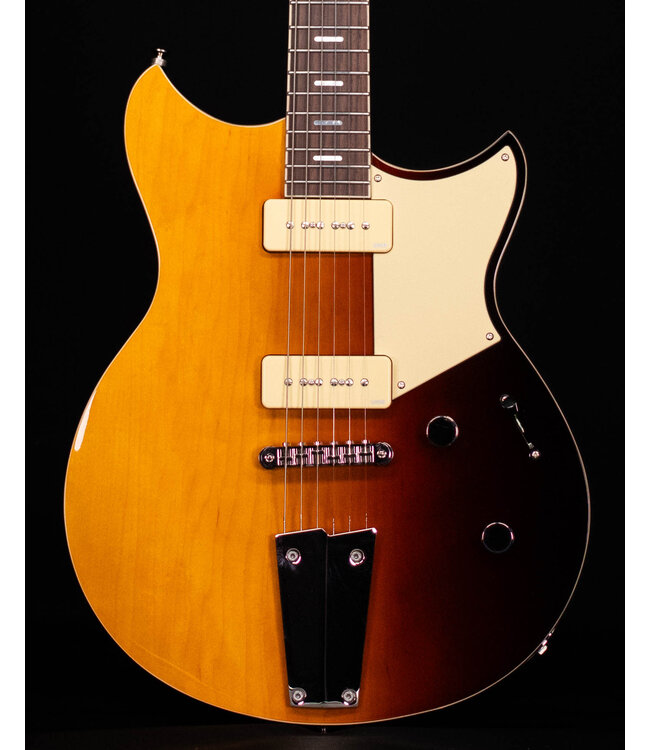

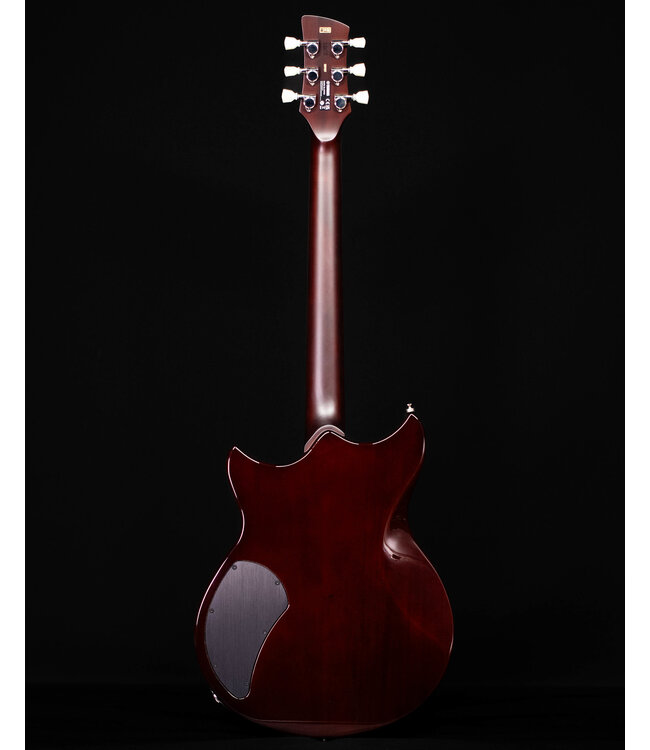

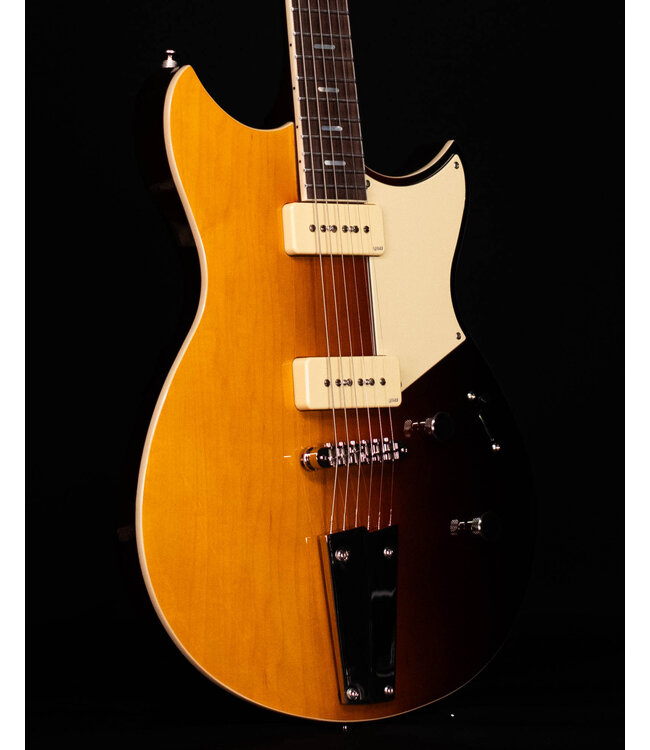

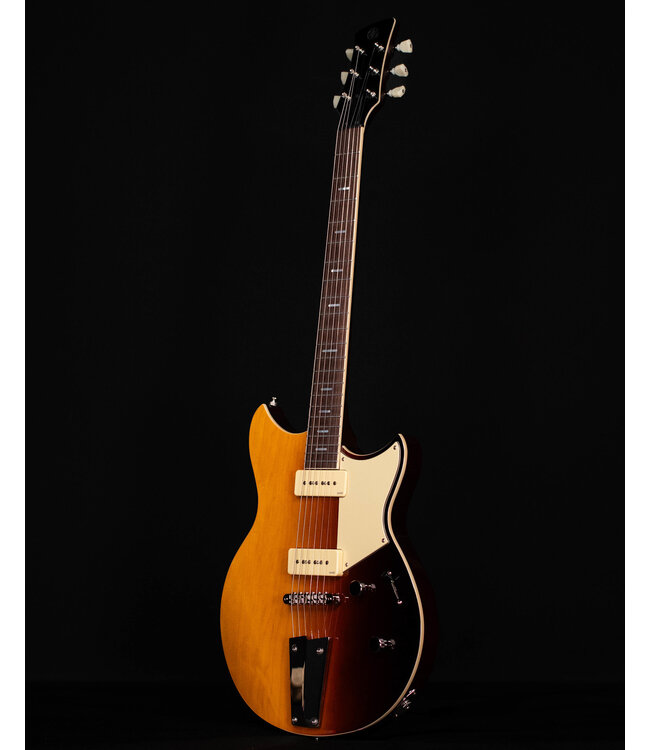

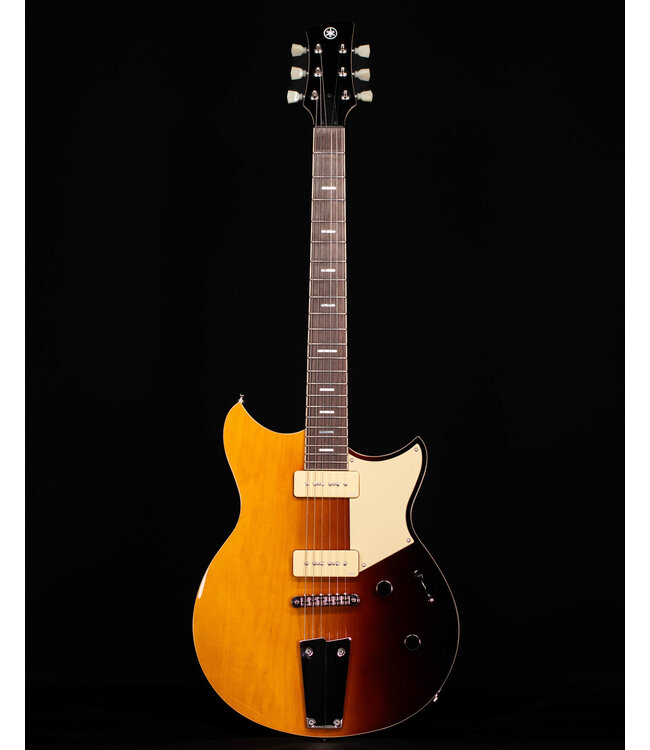

This Revstar Professional features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.

FEATURES

• Built in Japan
• 3 Café racer inspired finishes
• Chambered maple and mahogany body
• Carbon-reinforced neck and body
• 2 P90-style pickups
• 5-Position pickup selector
• Passive Focus Switch
• Hardshell case included

MADE IN JAPAN

Crafted to the highest standards by Yamaha's master luthiers in Japan, Revstar Professional guitars represent the pinnacle of the new Revstar series.

CHAMBERED BODY WITH ACOUSTIC DESIGN

Revstar Professional guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the body and neck to improve vibration transfer.

5-WAY SWITCHING

Positions 2 and 4 slightly delay the opposite pickup for a subtle phase shift that offers a fresh take on classic “in-between” sounds.

FOCUS SWITCH

The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.

CHOICE OF PICKUPS

RSP20 and RSP20X feature humbuckers, and RSP02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.

INITIAL RESPONSE ACCELERATION

Yamaha’s I.R.A. process applies specific vibrations to release stresses between an instrument’s components, resulting in a new guitar with “played-in” sound and feel.

SPECIFICATIONS

• Construction: Set-in
• Top: Maple
• Back: Chambered 2-Piece Mahogany, Carbon Reinforcement
• Body Finish: Gloss Polyurethane
• Neck Materials: 3-Piece Mahogany, Carbon Reinforcement
• Neck Finish: Satin Polyurethane
• Fingerboard Materials: Rosewood
• Fingerboard Radius: 12"
• Nut Materials: PPS
• Neck Width: 41.9 / 52.0
• Neck Pickup: VP5n: P90 type Single coil / Alnico V
• Bridge Pickup: VP5b: P90 type Single coil / Alnico V
• Controls: Master Volume, Master Tone (Push-Pull "Focus Switch")
• Pickup Switch: 5-Position Lever Switch
• Bridge: Tune-O-Matic
• String Spacing: 10.5 mm
• Tailpiece: Racing Tailpiece

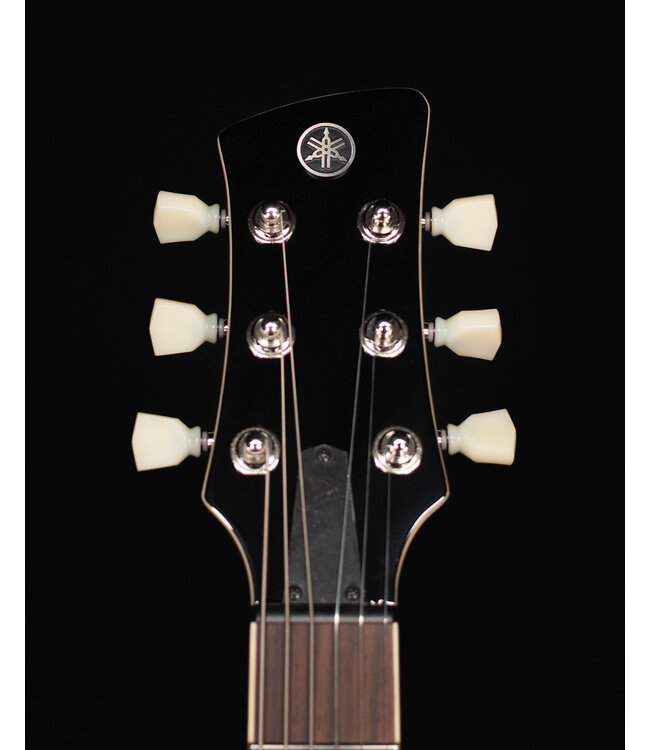

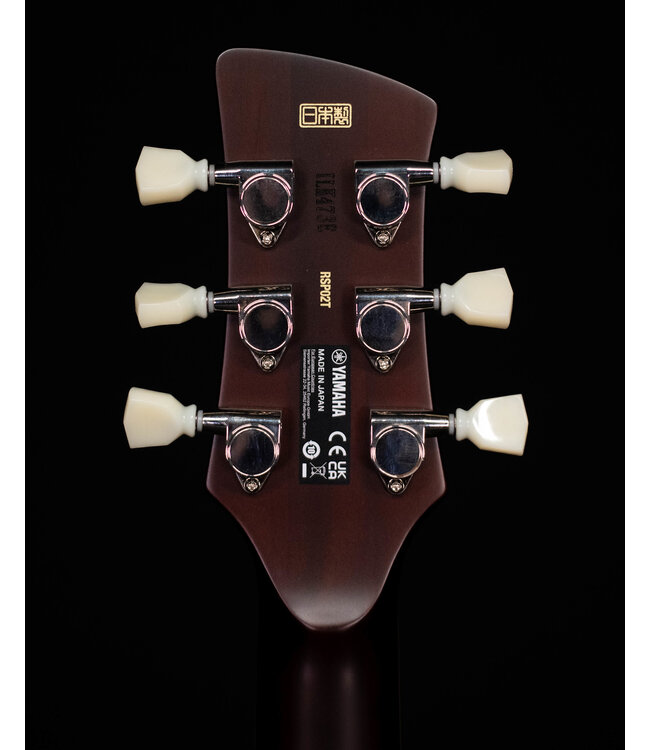

• Tuning Machines: Die-Cast
• Pickguard: 3-Ply Cream
• String Gauge: D-Addario EXL110
• Case: Hardshell case
• Special Features: I.R.A Treatment
