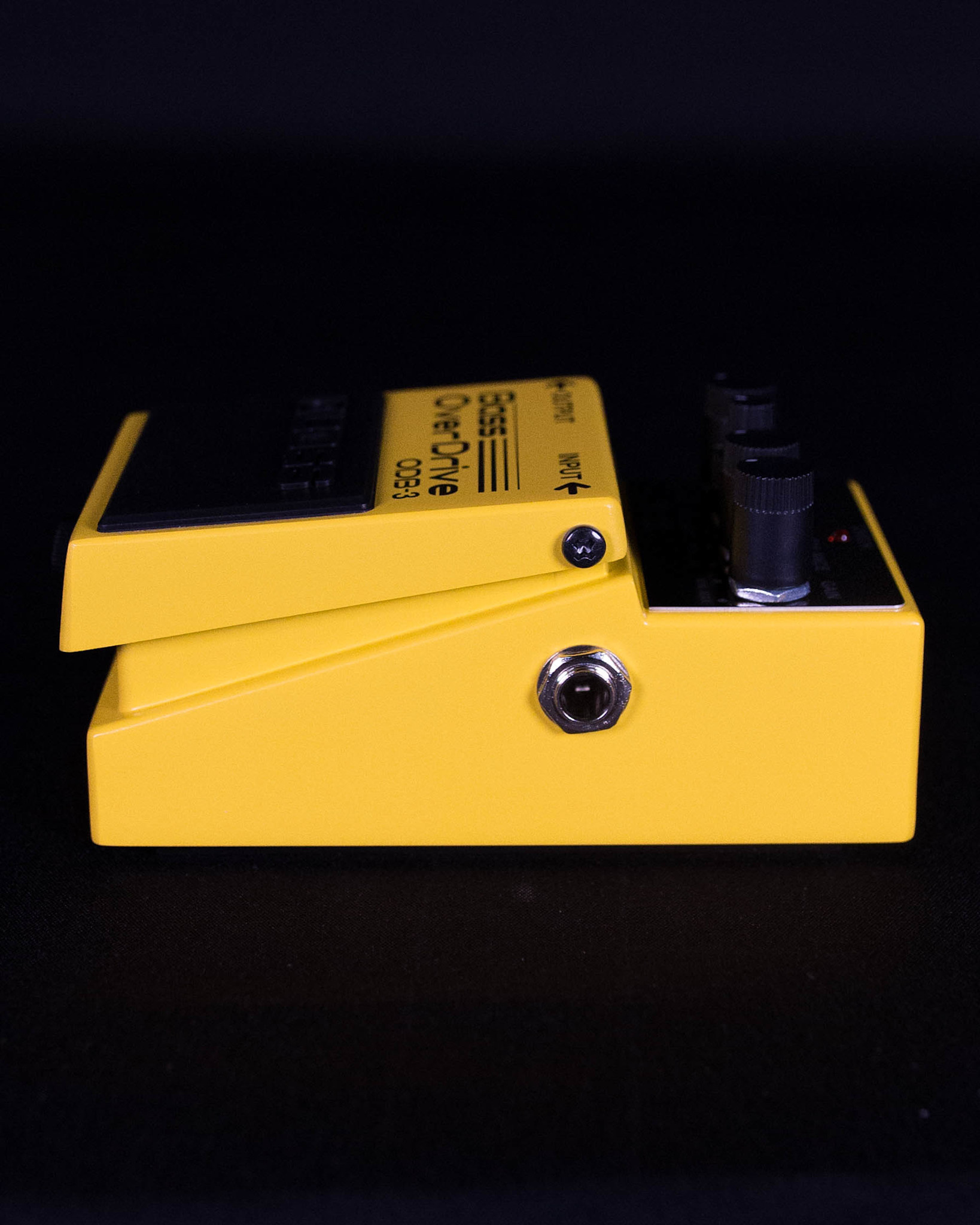

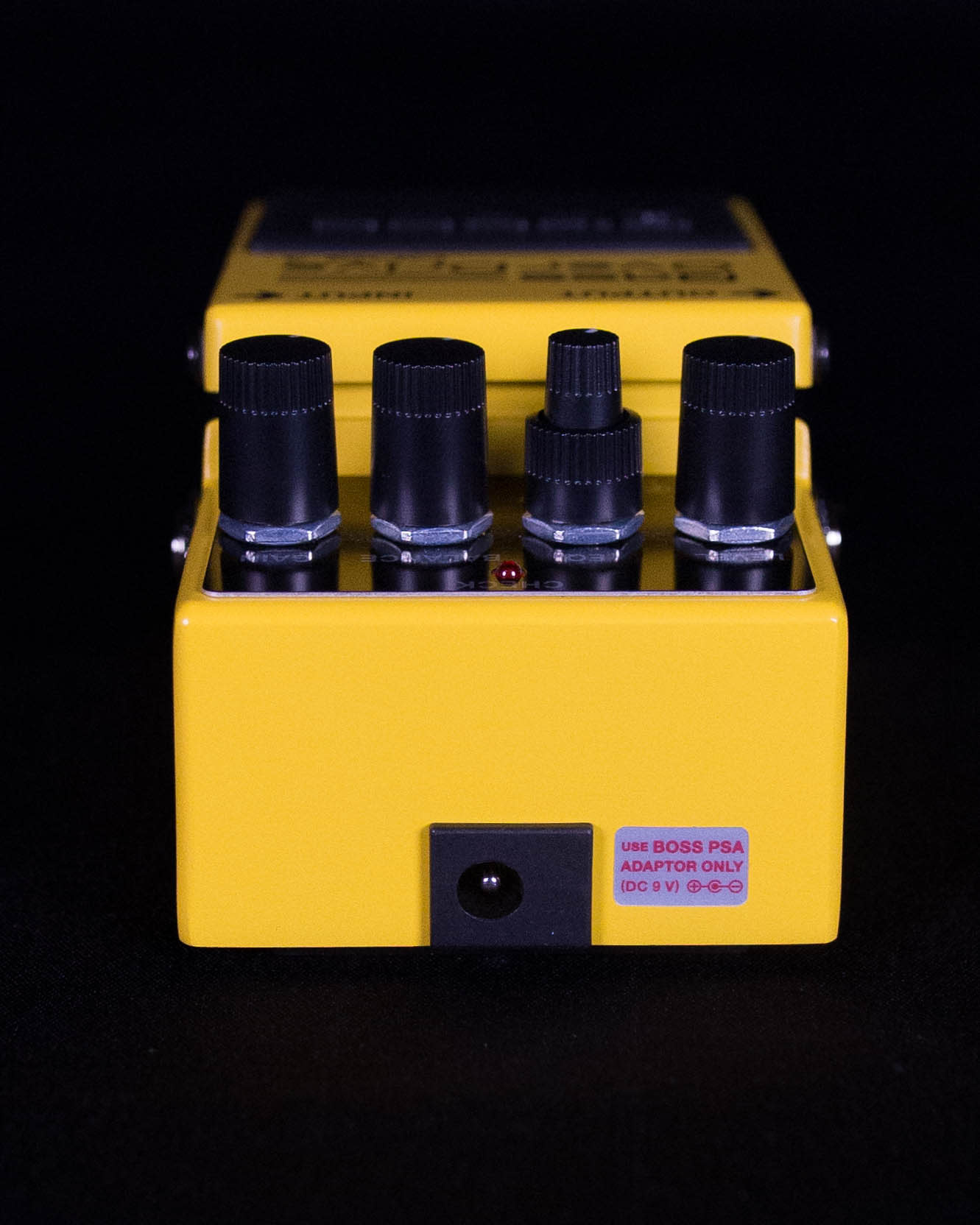

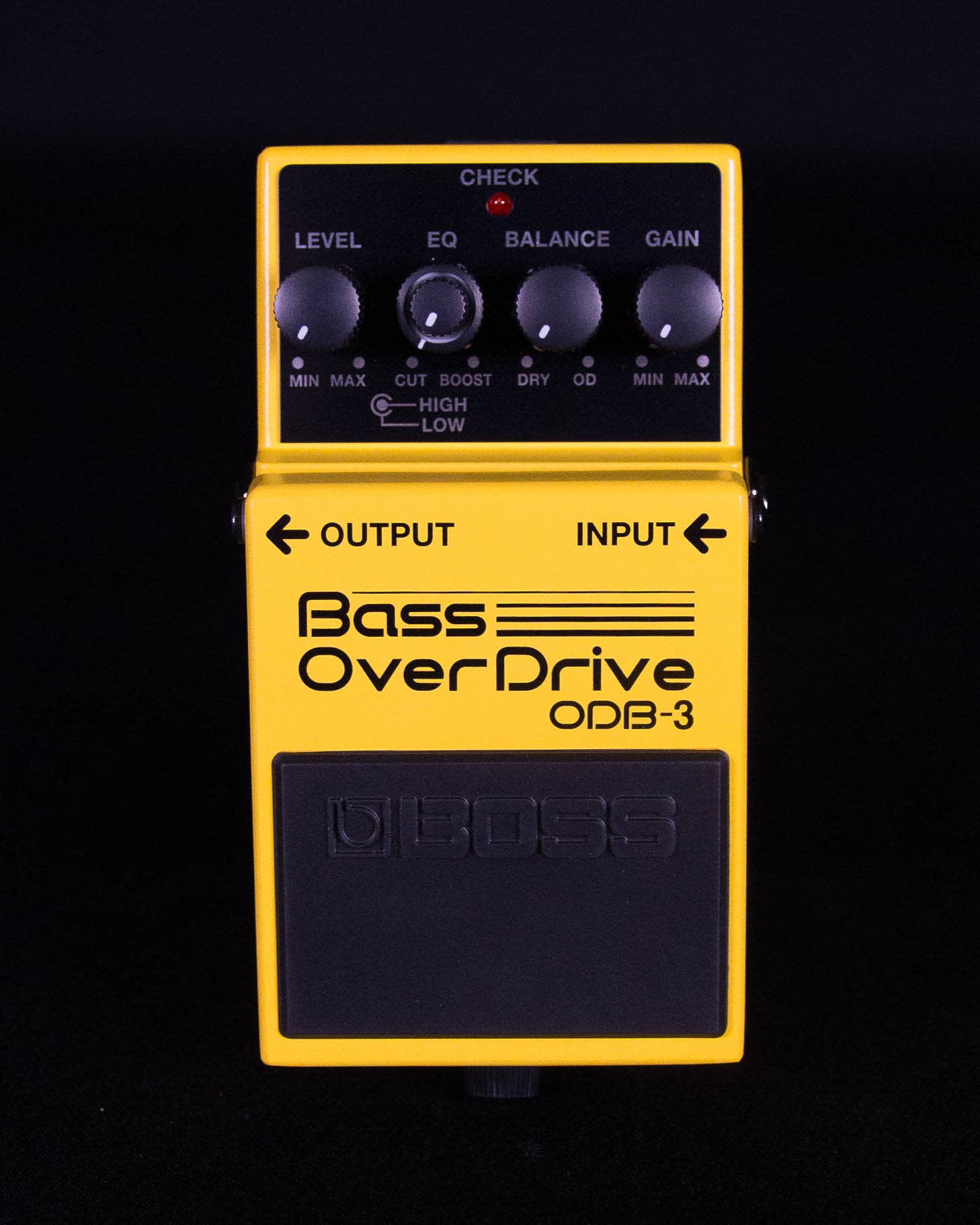

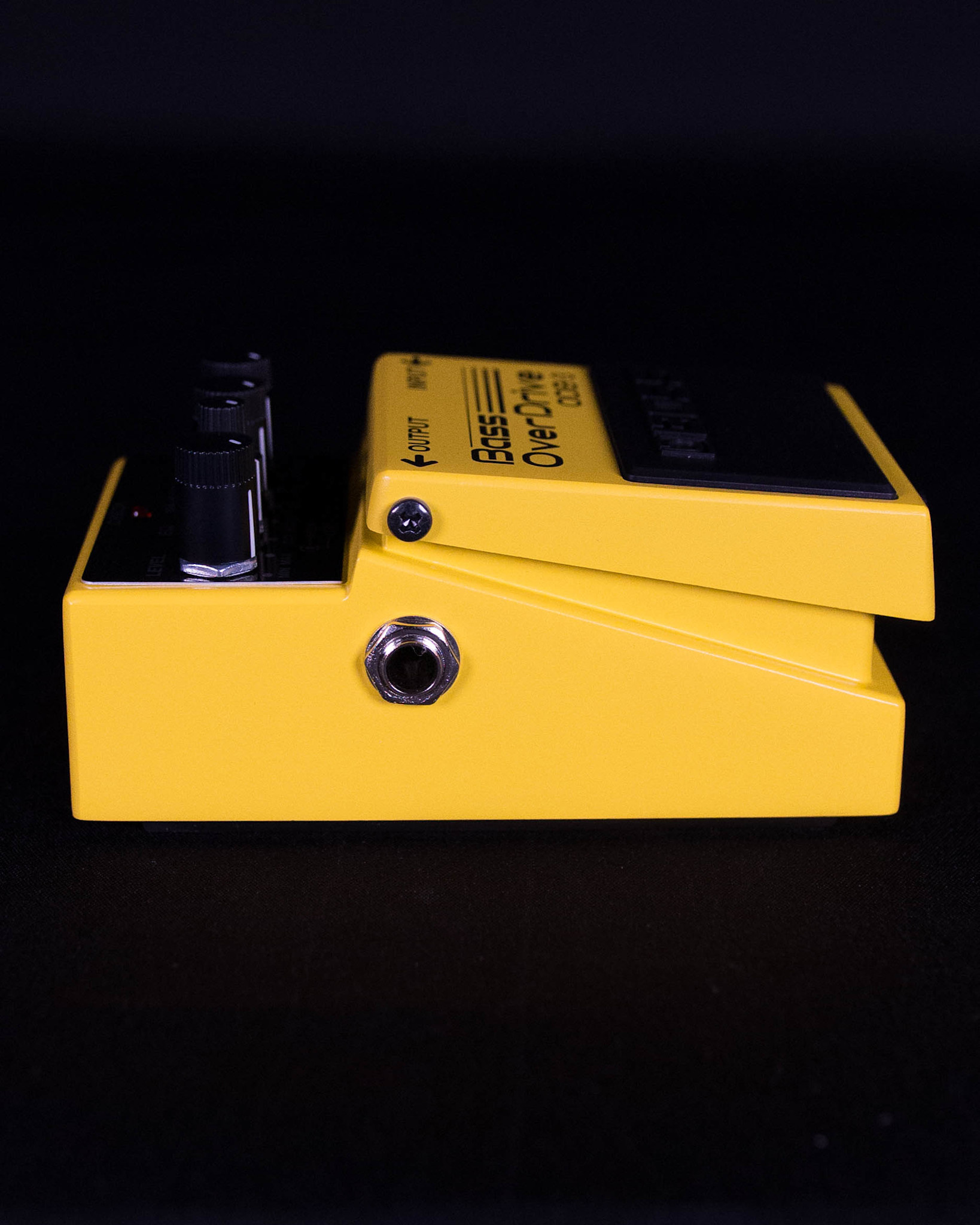

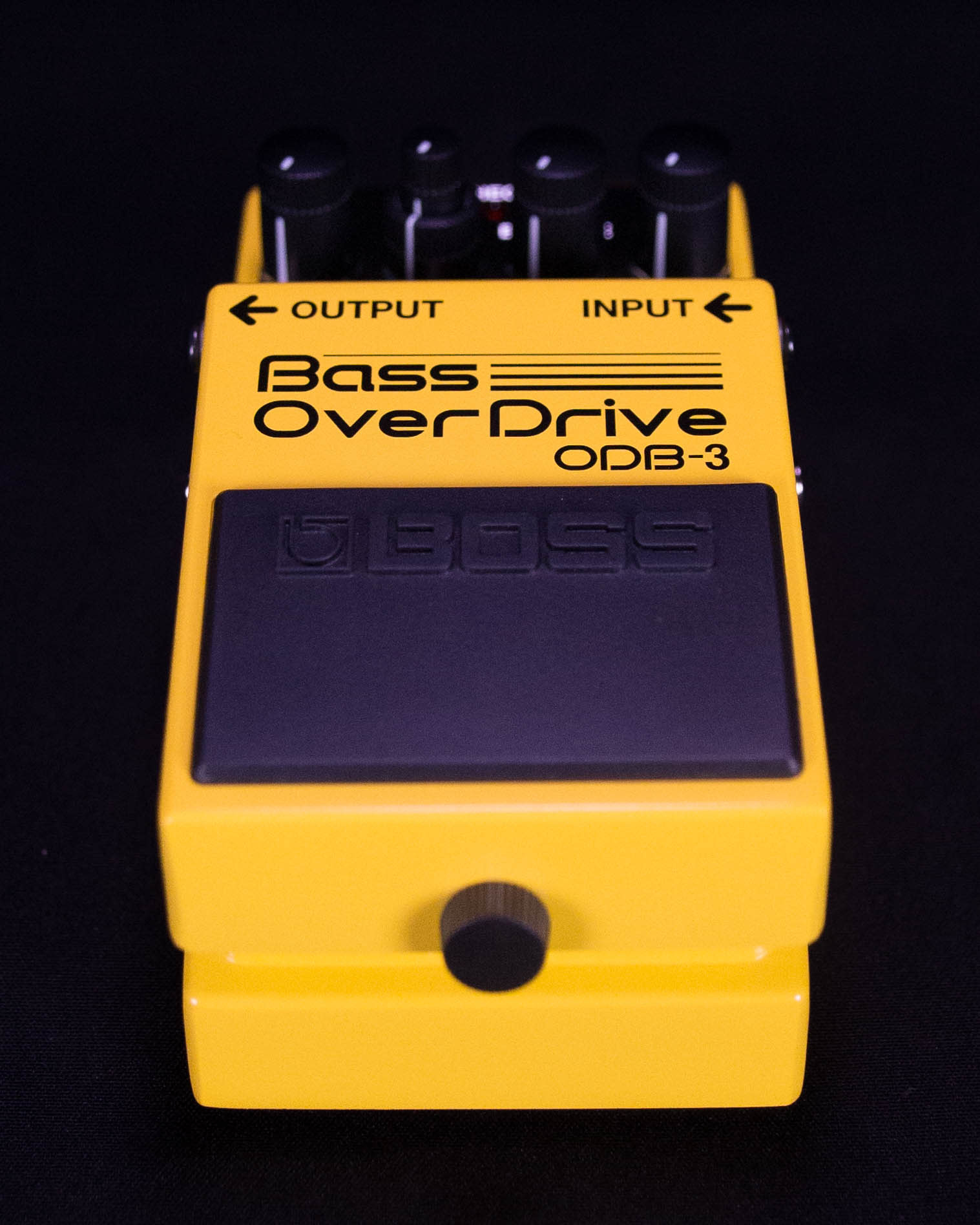

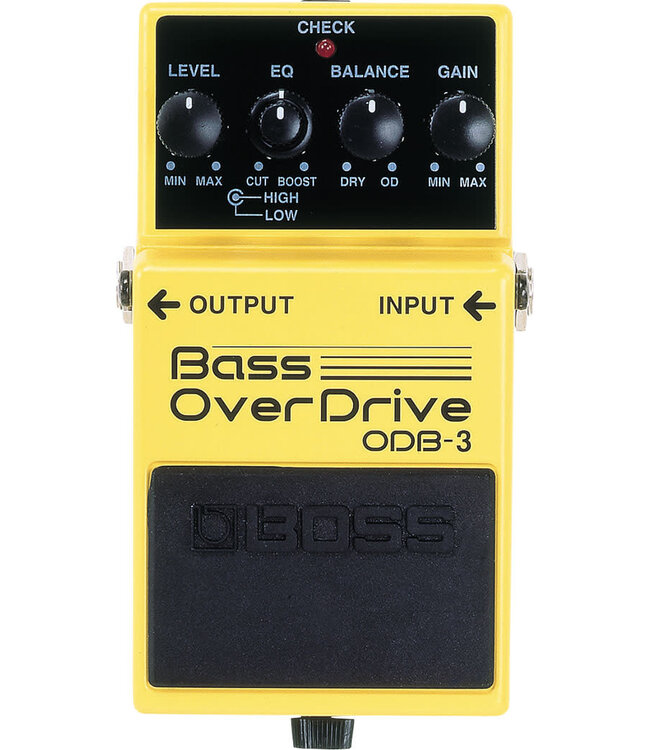

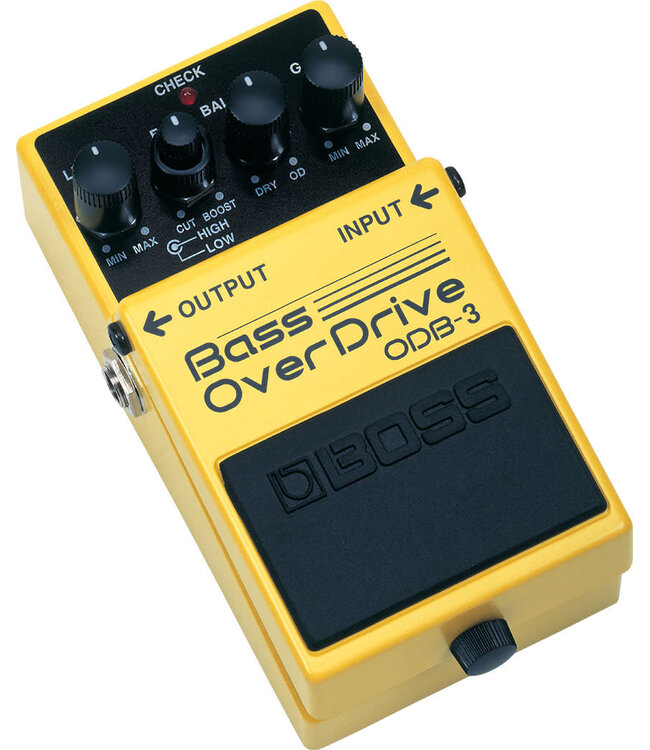

BOSS ODB-3 Bass Overdrive Pedal

The ODB-3 Bass OverDrive delivers the chest-resonating distortion that hard rock, thrash, and punk bassists have been waiting for. This hot compact pedal has been designed specifically for bass applications.

SPECIFICATIONS

• OverDrive pedal specifically designed for bass
• Onboard two-band equalizer
• Balance knob controls dry/overdriven sound
• AC adaptor or 9V battery operation
• BOSS five-year warranty
• Normal Input Level: -20 dBu
• Input Impendance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 1 k ohms or greater
• Bypass: Buffered Bypass
• Controls: Gain knob, Balance Knob, EQ High/Low Knob, Level Knob, Pedal Switch
• Indicator: Check Indicator (Used for indication of check battery)
• Connectors: Input jack: 1/4 inch phone type, Output Jack: 1/4 inch phone type DC IN jack
• Power Supply: Carbon-Zinc Battery (9 V, 6F22) or Alkaline battery (9V, 6LR61), AC Adapter ( PSA Series: Sold Separately)
• Current Draw: 20 mA
• Expected Battery Life Under Continuous Use: Carbon: Approx. 28.5 hours, Alkaline: Approx. 51.5 hours, *Figures will vary depending on use.
• Accessories: Owners manual, leaflet, and carbon-zinc battery (9 V, 6F22)
