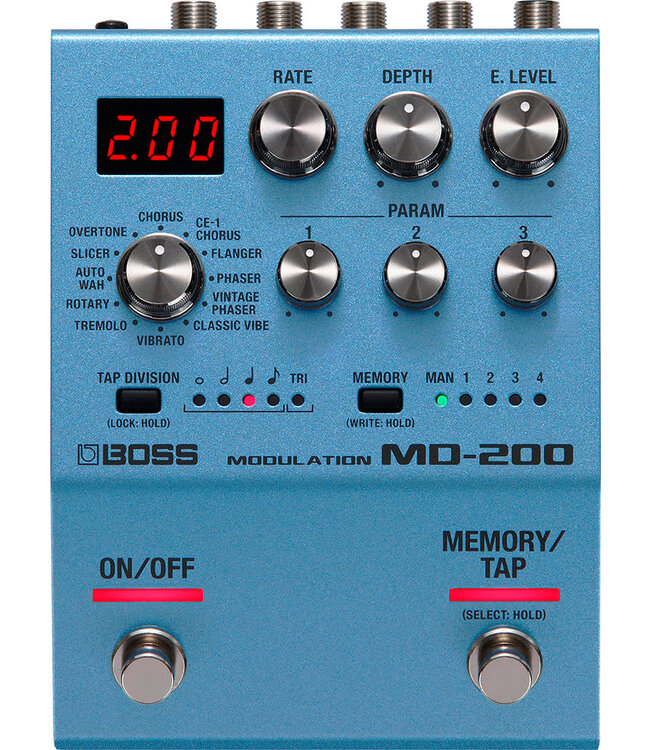

BOSS MD-200 Modulation Effects Pedal

Simply Sophisticated

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

Outfitted with algorithms from the flagship MD-500, the MD-200 Modulation delivers an array of world-class effects in one small, convenient pedal. Twelve different modes provide every mod sound you need and more, and each includes customized controls that unlock deep tone shaping right from the panel. And with the powerful insert function, it’s simple to patch in drive pedals and other effects for selectable pre or post processing.

Version 1.1 Update: User Memory Expansion

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

For optimal performance, stay up to date with the current MD-200 system software

SPECIFICATIONS

• Sampling Frequency: 96 kHz
• AD/DA Conversion: 32 bits
• Processing: 32-bit floating point
• Modes: 12 modes
  • Chorus
  • CE-1 Chorus
  • Flanger
  • Phaser
  • Vintage Phaser
  • Classic Vibe
  • Vibrato
  • Tremolo
  • Rotary
  • Auto Wah
  • Slicer
  • Overtone
• Memory: 127 + Manual
• Nominal Input Level: INPUT A/MONO, B: -10 dBu
• Maximum Input Level: INPUT A/MONO, B: +7 dBu
• Input Impedance: INPUT A/MONO, B: 2 M ohms
• Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
• Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
• Output Impedance: OUTPUT A/MONO, B: 1 k ohms
• Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
• Bypass: Buffered bypass

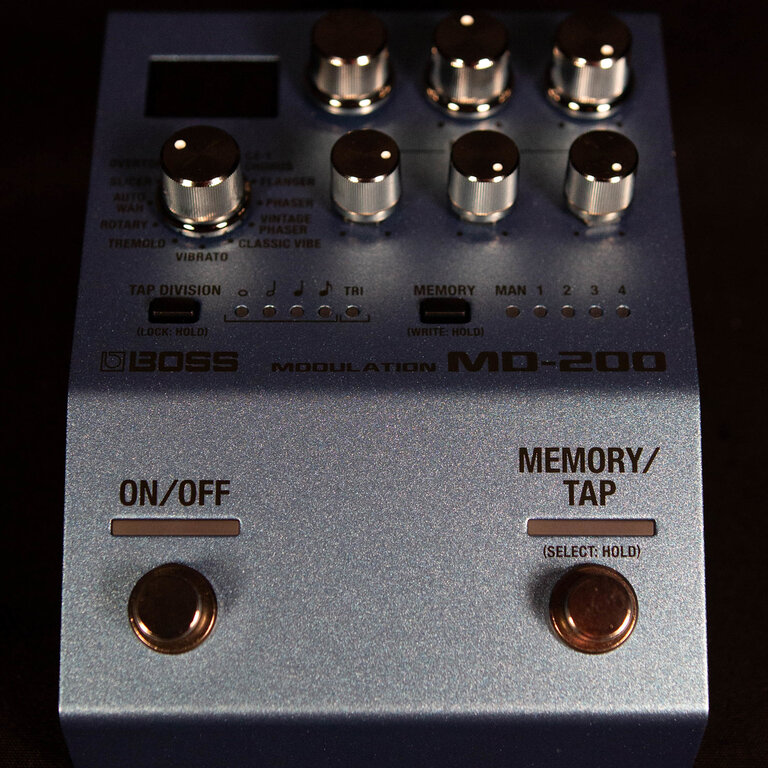

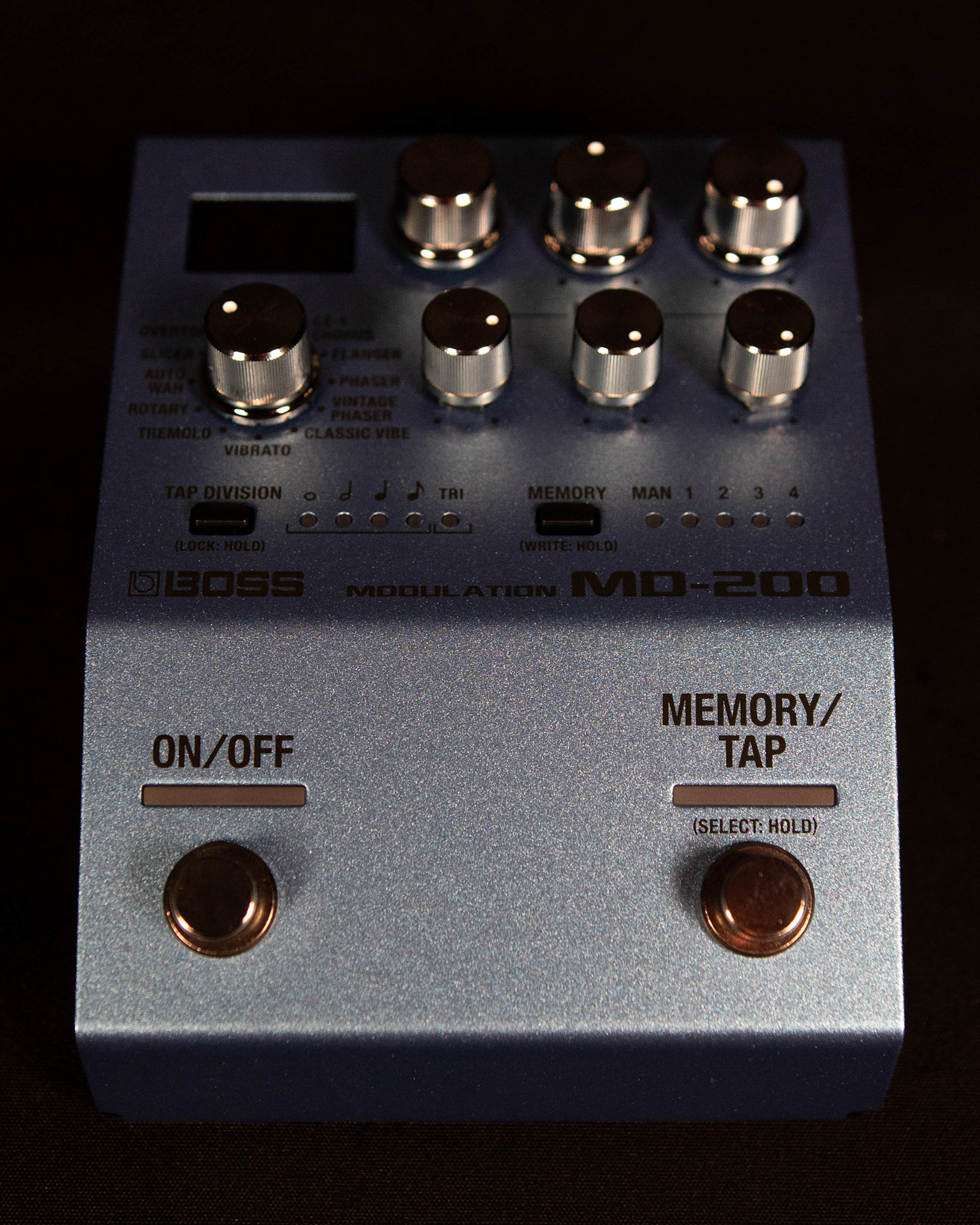

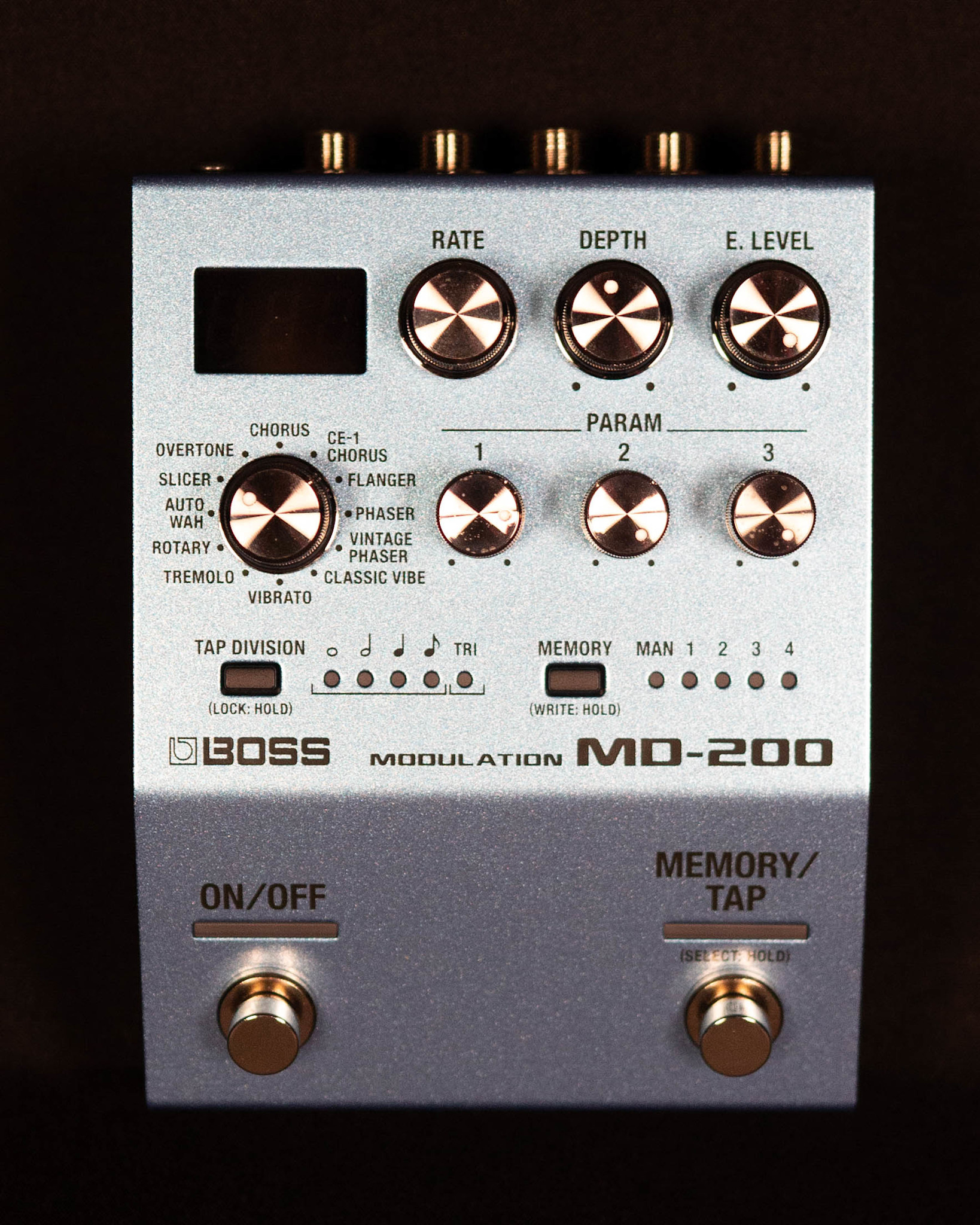

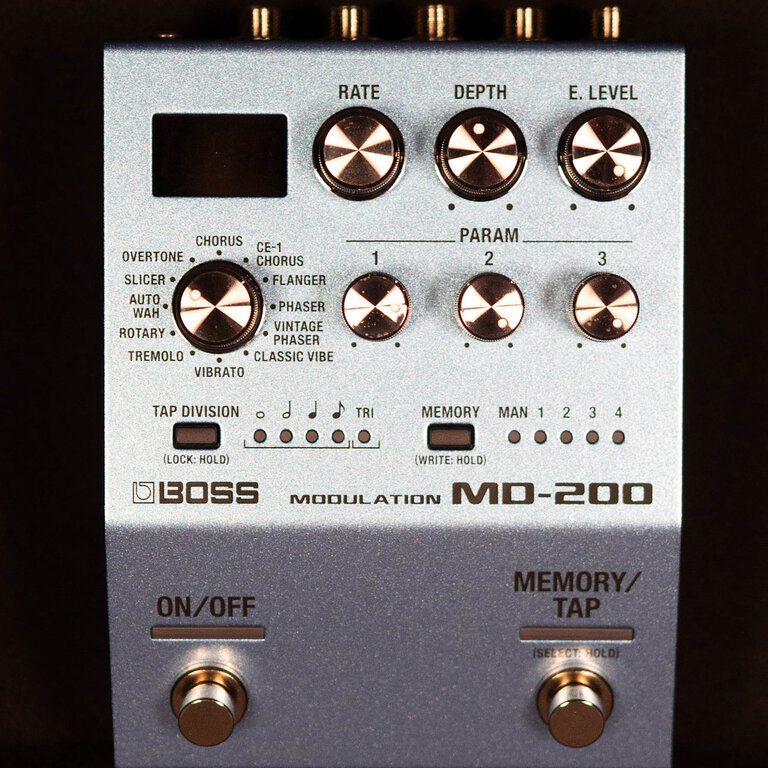

• Controls:
  • ON/OFF switch
  • MEMORY/TAP switch
  • MODE knob
  • RATE knob
  • DEPTH knob
  • E. LEVEL knob
  • PARAM 1 knob
  • PARAM 2 knob
  • PARAM 3 knob
  • TAP DIVISION button
  • MEMORY button
• Display: 7 segments, 3 characters (LED)
• Indicator: TAP DIVISION indicator, MEMORY (MAN, 1-4) indicators

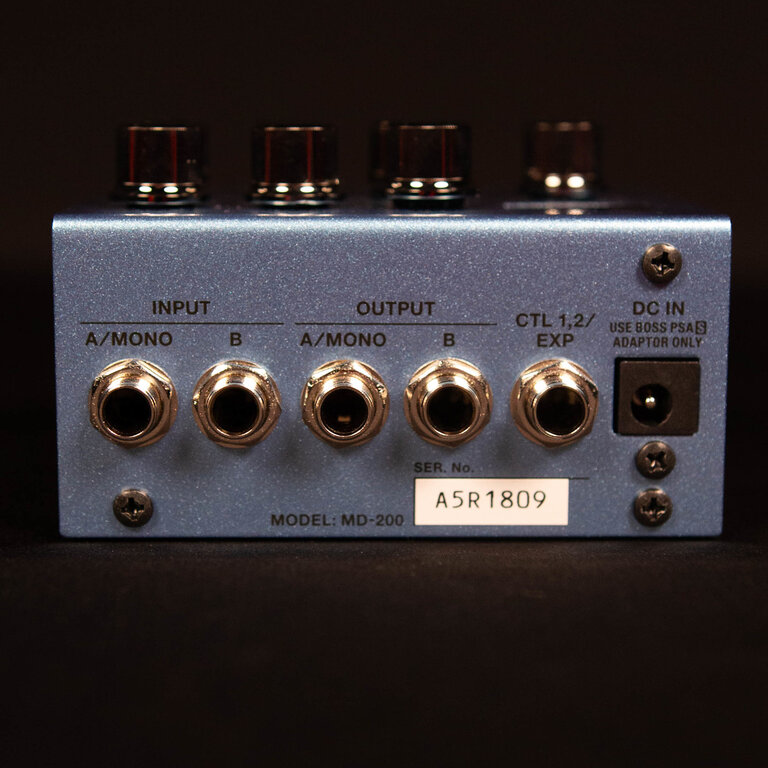

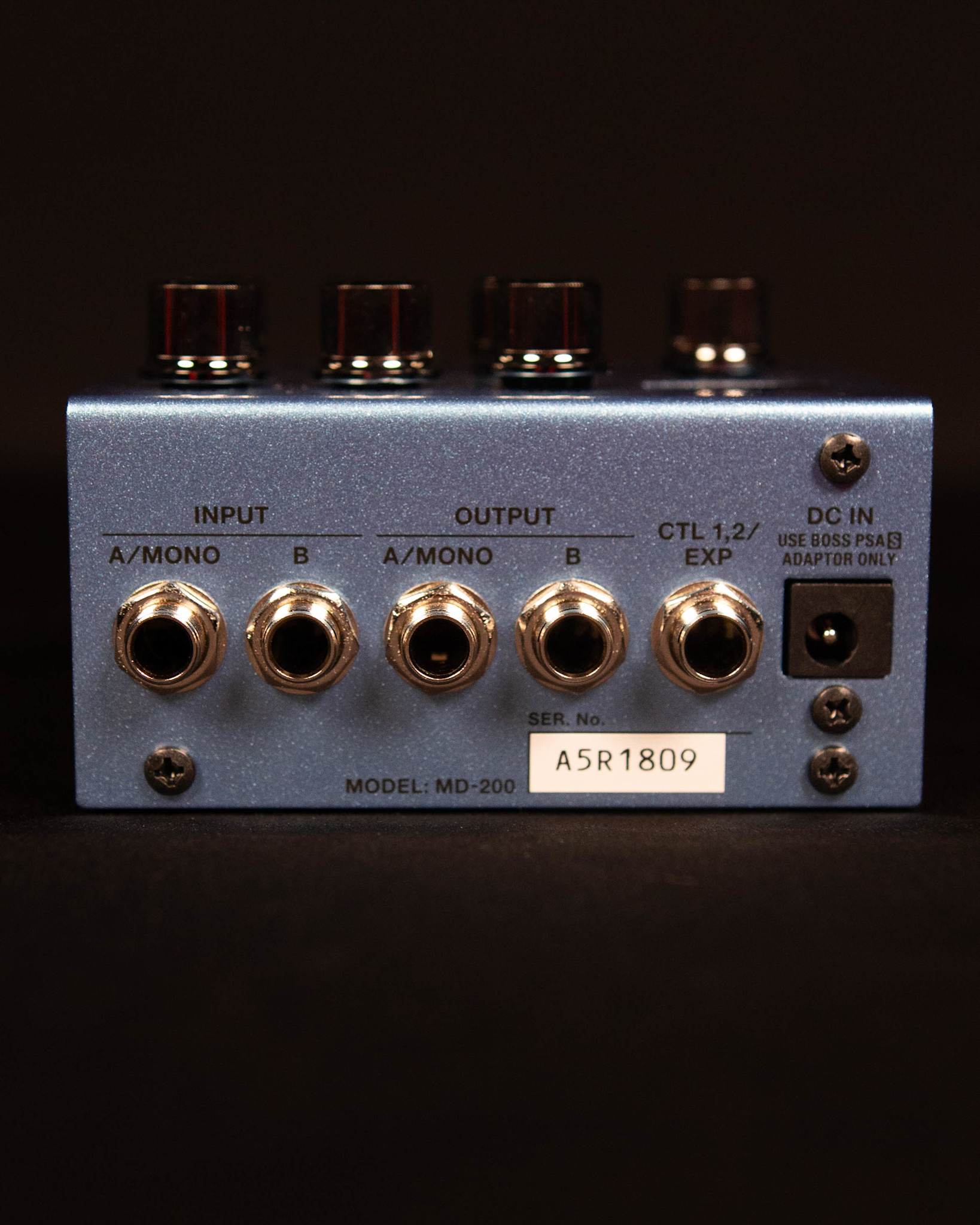

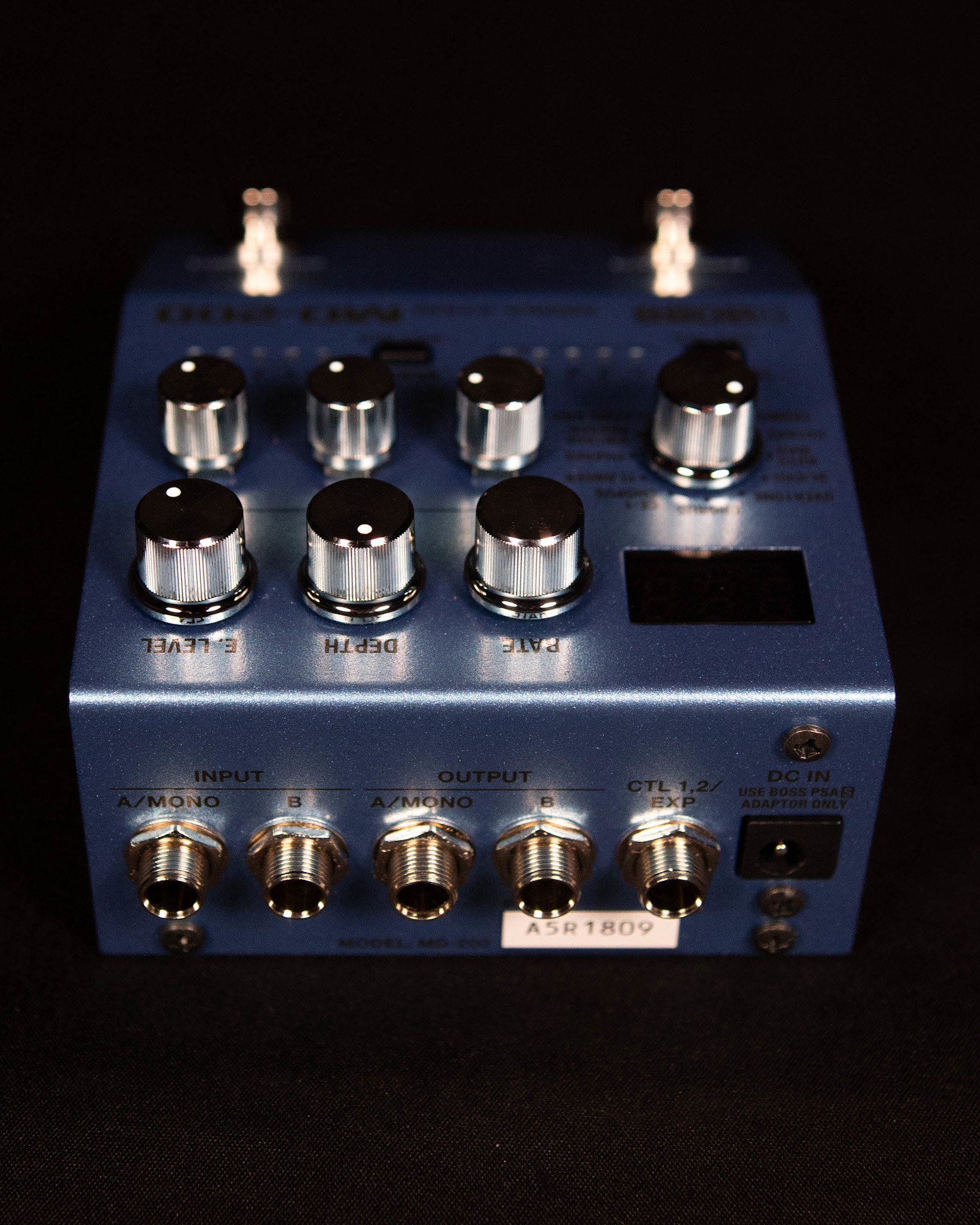

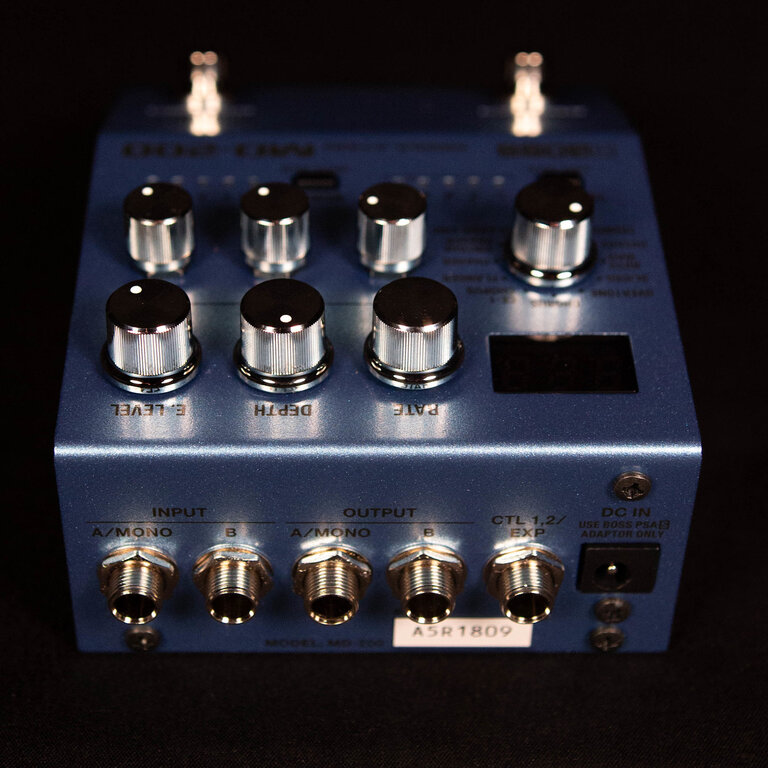

• Connectors:
  • INPUT (A/MONO, B) jacks
  • OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
  • CTL 1, 2/EXP jack: 1/4-inch TRS phone type
  • MIDI (IN, OUT) jacks: Stereo miniature phone type
  • DC IN jack
  • USB port: USB micro B-type (program update only)
• Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
• Current Draw: 225 mA
• Expected Battery Life Under Continuous Use:
  • Alkaline: Approx. 4 Hours
  • • These figures will vary depending on the actual conditions of use.
• Accessories:
  • Leaflet "USING THE UNIT SAFELY"
  • Leaflet "To obtain the Owner’s Manual"
  • Alkaline battery (AA, LR6) x 3
  • Rubber foot x 4
• Options (sold separately):
  • AC adaptor: PSA-S series
  • Footswitch: FS-5U
  • Dual footswitch: FS-6, FS-7
  • Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
  • MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
