Create an accountSIMPLY SOPHISTICATED
With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

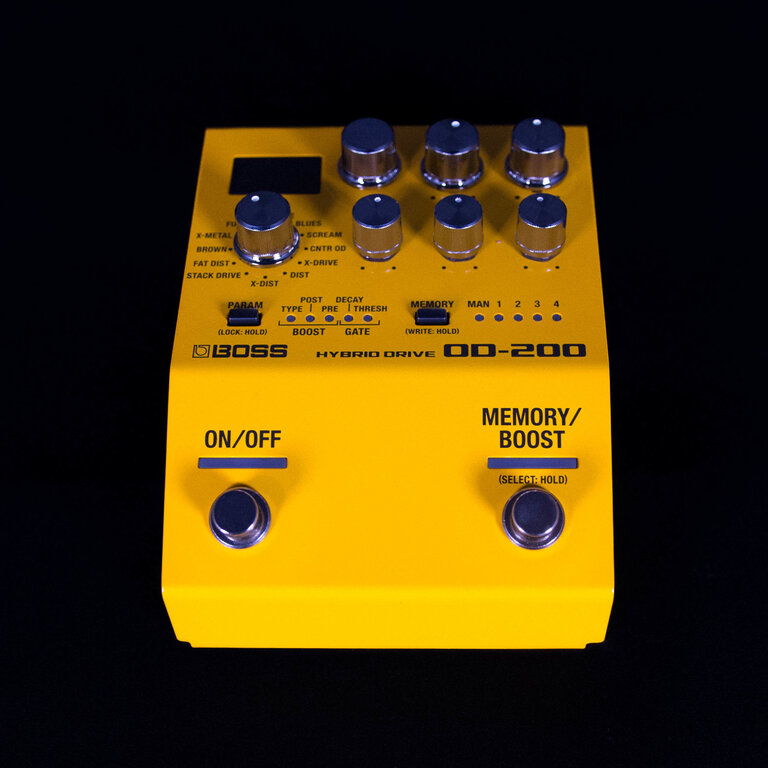

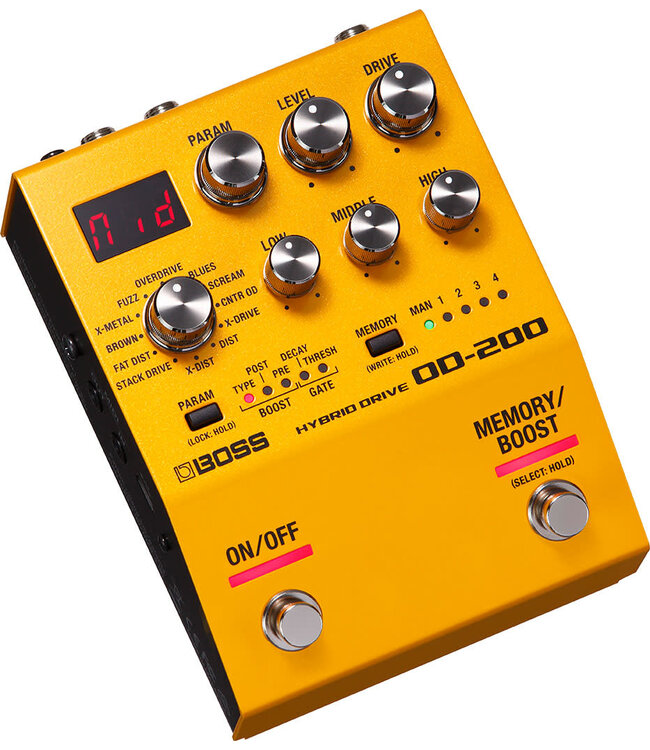

The OD-200 Hybrid Drive brings next-level sound, feel, and flexibility to overdrive and distortion, combining decades of BOSS tone expertise with innovative technologies. Powered by hybrid analog/digital circuitry, this dream pedal delivers any drive tone you can imagine via 12 primary modes, 15 boost types, series/parallel gain paths, and more. There’s even an advanced gate on board, ideal for both eliminating noise and adding tightness to high-gain drive tones.
FEATURES
- Advanced hybrid design with analog and digital circuitry provides a huge range of drive tones from classic to modern
- Twelve primary drive modes plus 15 boost types with independent pre/post gain controls
- Selectable series or parallel boost structures for unlimited gain shaping
- Advanced gate section for eliminating noise and tightening high-gain tones
- Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
- Access 128 user setups from the panel or MIDI program change
- Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
- Panel Lock function disables controls to prevent unwanted changes
- Customizable multi-function footswitches for bypass, boost, memory selection, and more
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Micro USB jack for firmware updates
- Runs on PSA-series AC adaptor or three AA-size batteries
SPECIFICATIONS
- Sampling Frequency: 96 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Drive Circuit: Analog + Digital
- Modes: 12 modes
- Overdrive
- Blues
- Scream
- Cntr OD
- X-Drive
- Dist
- X-Dist
- Stack Drive
- Fat Dist
- Brown
- X-Metal
- Fuzz
- Memory: 127 + Manual
- Nominal Input Level: Input: -10 dBu
- Maximum Input Level: Input: +7 dBu
- Input Impedance: Input: 1 M ohm
- Nominal Output Level: Output: -10 dBu
- Maximum Output Level: Output: +7 dBu (Load Impedance: 220 k ohms or greater)
- Output Impedance: Output: 1 k ohms
- Recommended Load Impedance: Output: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls:
- On/Off Switch
- Memory/Boost Switch
- Mode Knob
- Drive Knob
- Level Knob
- Param Knob
- Low Knob
- Middle Knob
- High Knob
- Param Button
- Memory Button
- Display: 7 segments, 3 characters (LED)
- Indicator:
- Param Indicator
- Memory (Man, 1--4) Indicators

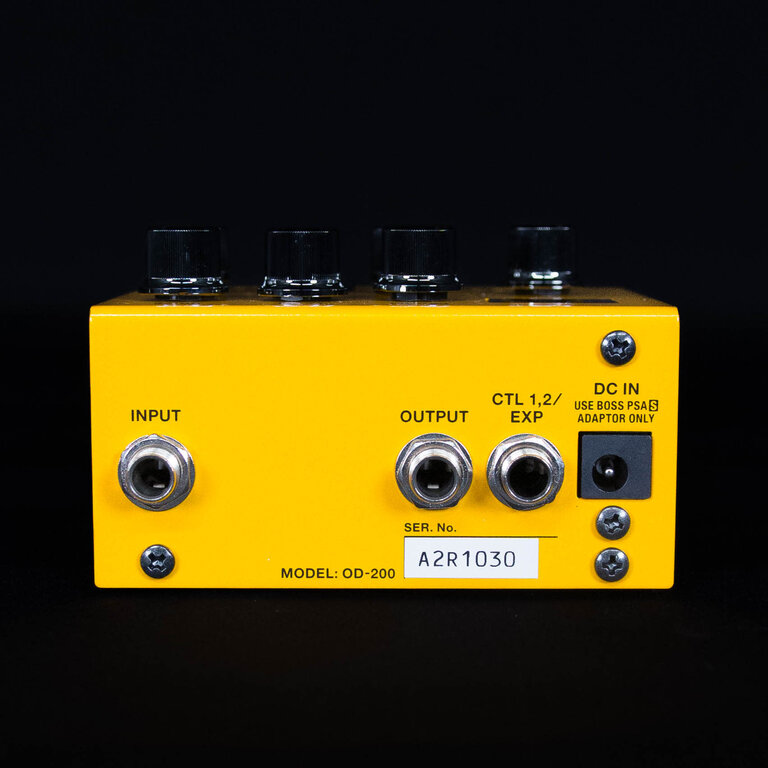

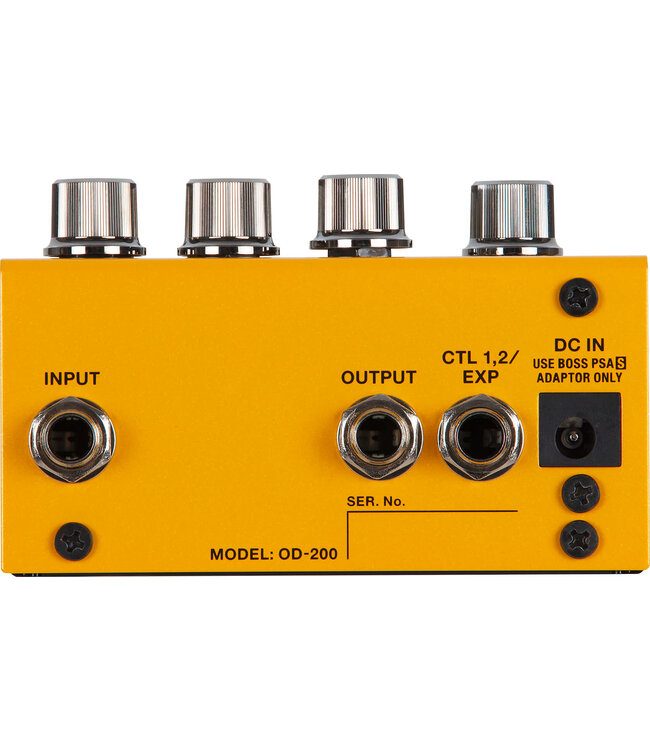

- Connectors:
- Input Jack
- Output Jack: 1/4-inch phone type
- CTL 1, 2/EXP Jack: 1/4-inch TRS phone type

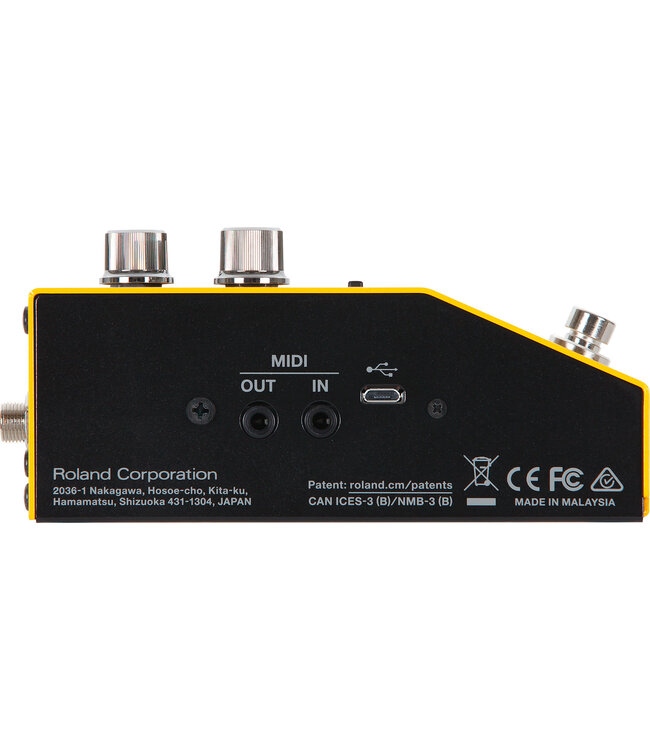

- MIDI (In, Out) Jacks: Stereo miniature phone type
- DC In Jack
- USB Port: USB micro B-type (program update only)
- Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw: 220 mA
- Expected Battery Life Under Continuous Use: Alkaline: Approx. 6 hours
- These figures will vary depending on the actual conditions of use.
- Accessories:
- Leaflet "Using The Unit Safely"
- Leaflet "To Obtain The Owner’s Manual"
- Alkaline battery (AA, LR6) x 3
- Rubber foot x 4
- Options (Sold Separately):
- AC Adaptor: PSA-S series
- Footswitch: FS-5U
- Dual Footswitch: FS-6, FS-7
- Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- MIDI/TRS Connecting Cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
- Size And Weight:
- Width: 101 mm, 4 inches
- Depth: 138 mm, 5-7/16 inches
- Height: 63 mm, 2-1/2 inches
- Height (Including Rubber Foot): 65 mm, 2-9/16 inches
- Weight: 600 g, 1 lb 6 oz
- Weight (Including Battery): 670 g, 1 lb 8 oz
