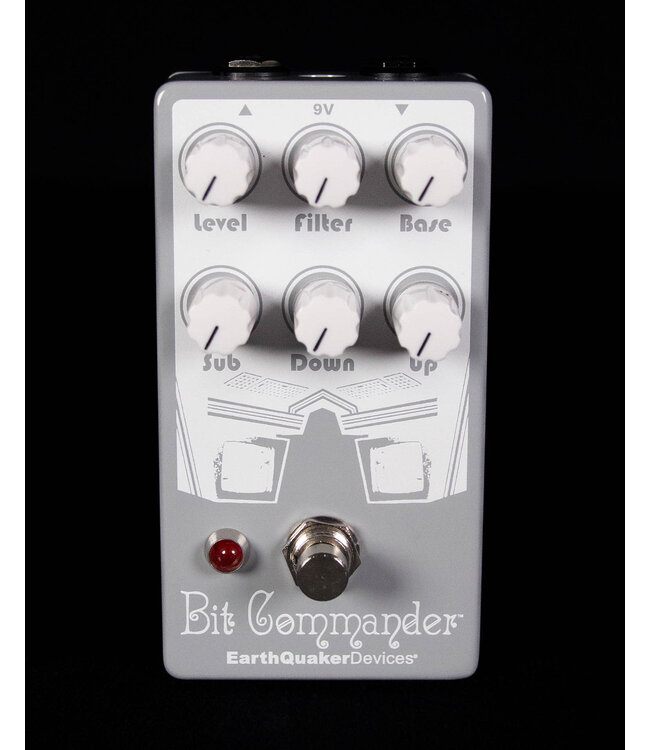

The Bit Commander is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. Its no-nonsense interface makes it easy to add or subtract octaves to create a wide variety of sounds without having to dial in envelopes or oscillators. Ripping sub-octave thump, pulsing octave down, a lightly squared base tone and a swelling transformer based octave up all join together to make a single guitar sound like an army of olde tyme synths.
CONTROLS
1. Level: Master volume
2. Filter: Tone control more highs clockwise, more warmth counterclockwise
3. Base: Squared input signal level
4. Sub: Two octaves down level
5. Down 1: One octave down level
6. Up 1: One octave up level
TECH SPECS
Measures: 4.75" x 2.50" x 2.25" with knobs
Current Draw: 25mA
Input Impedance: 50K Ohm
Output Impedance: <500 Ohm
Flexi-Switching
This device features Flexi-Switch™ Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
