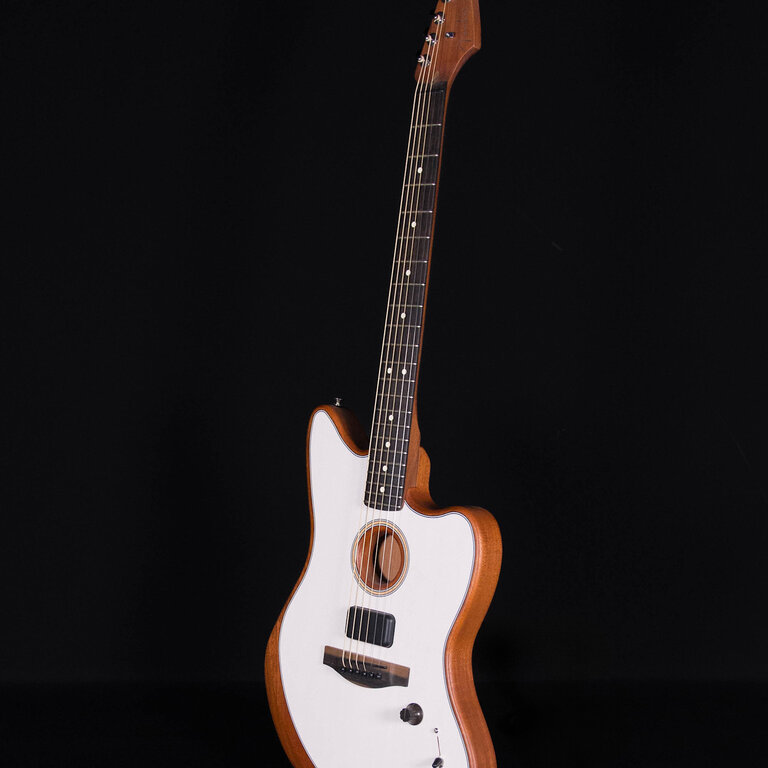

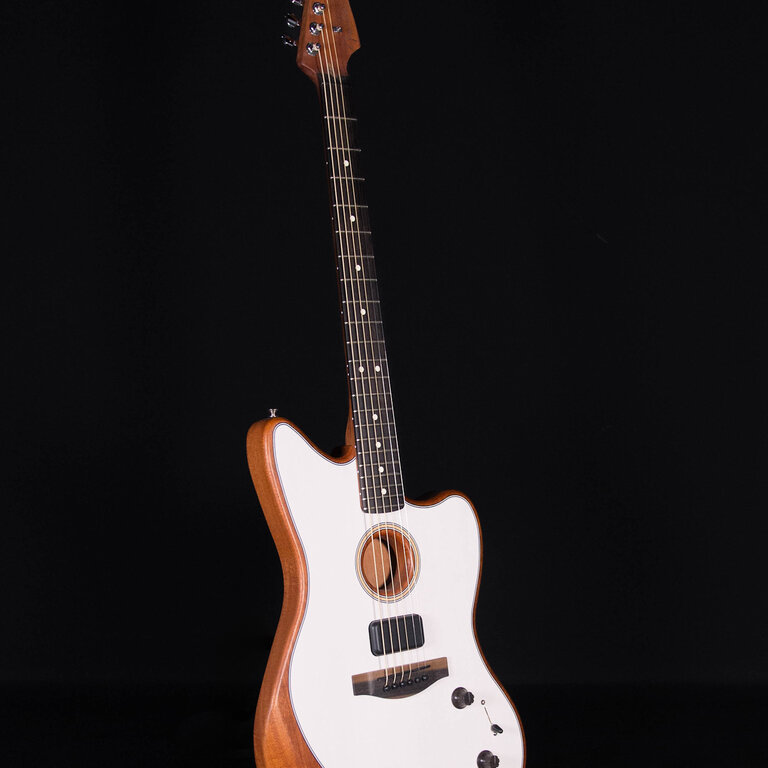

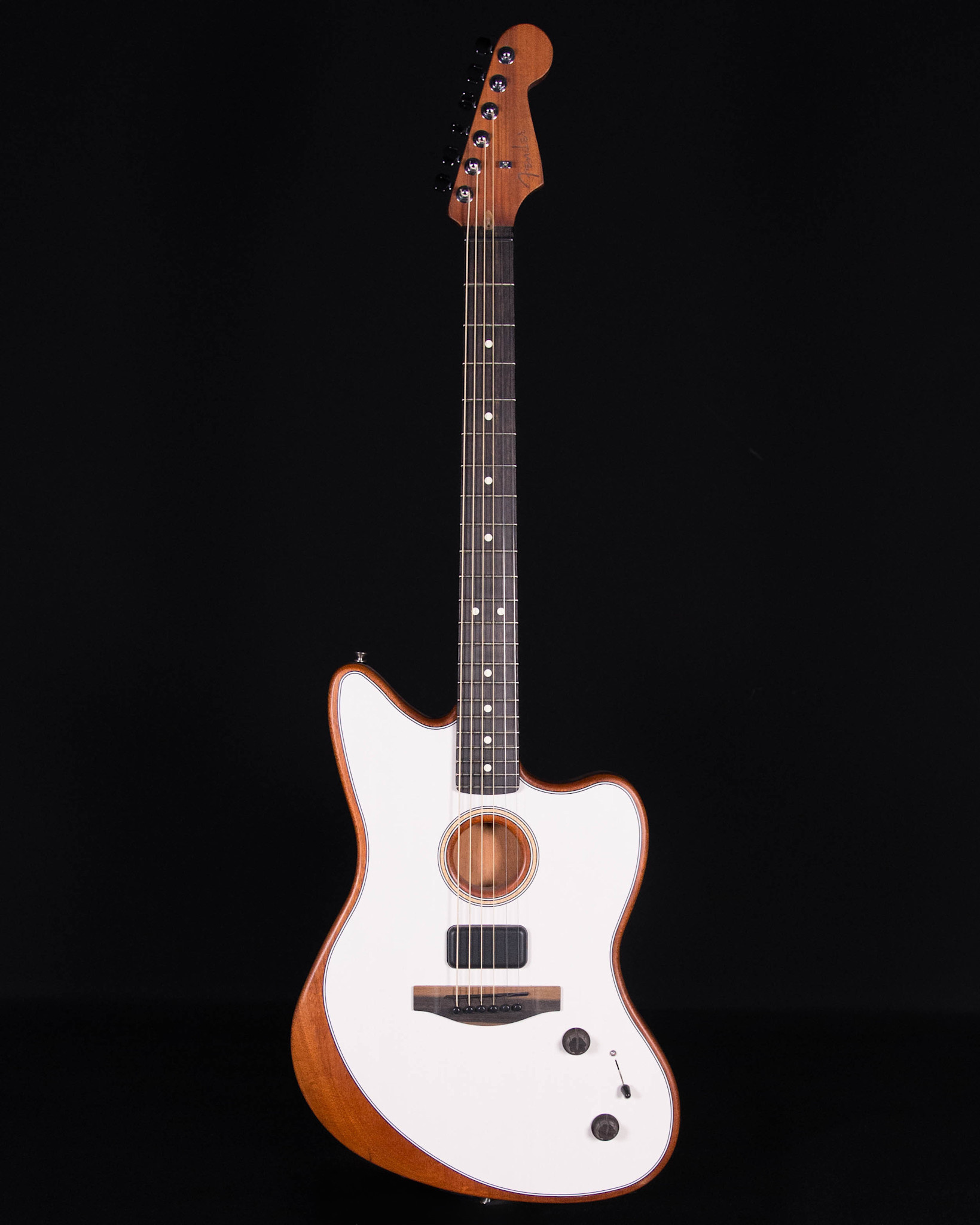

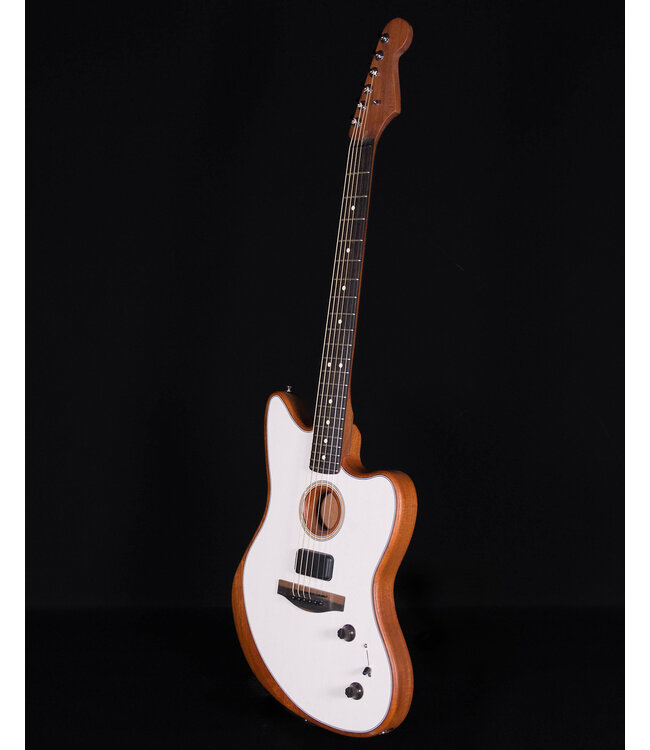

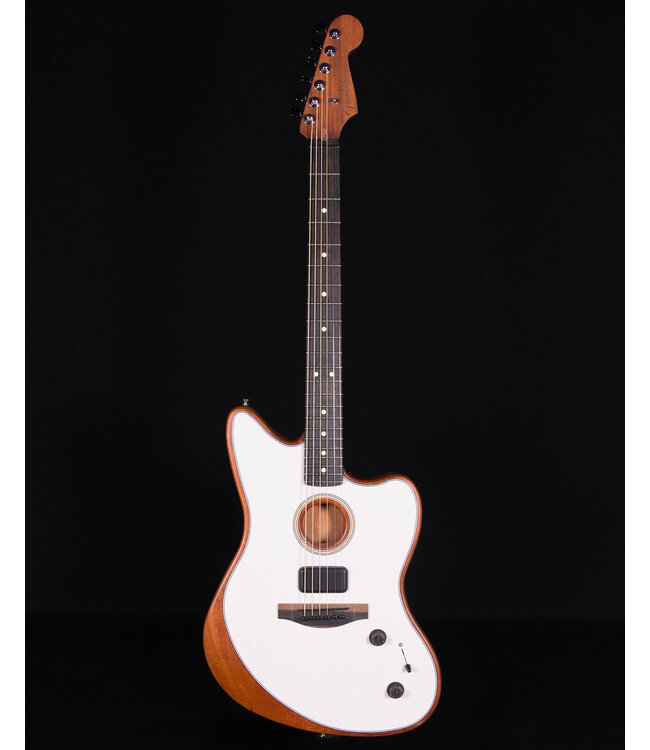

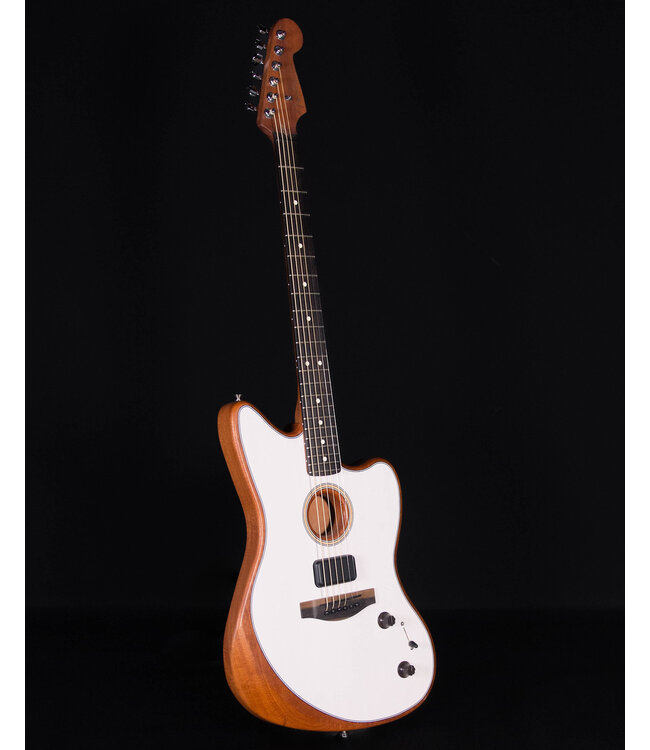

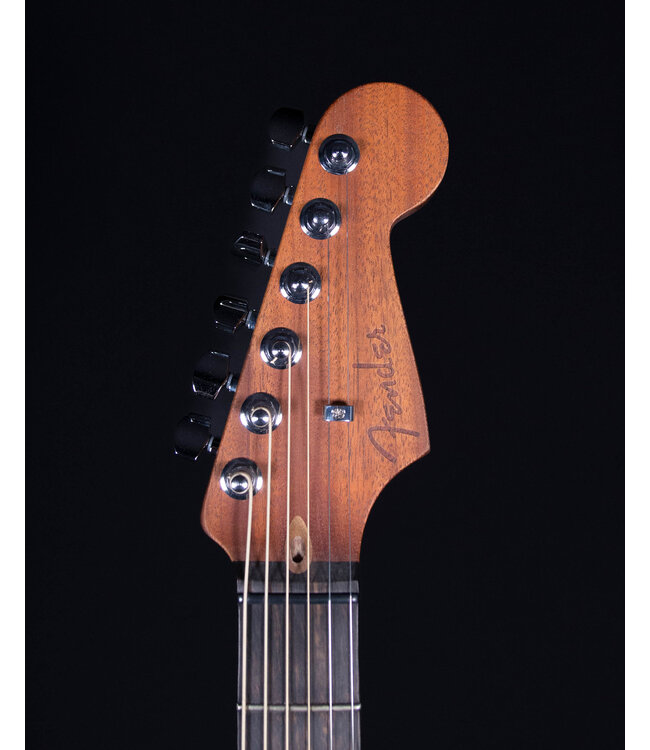

The Fender American Acoustasonic® Jazzmaster® guitar represents the next phase of purposeful innovation that drives Fender acoustic guitars. The power of the Fender and Fishman®-designed Acoustic Engine is sure to deliver true inspiration. From acoustic shapeshifting to electric rhythm tones, this extremely versatile guitar opens a new door to discovering endless sonic possibilities.

SPECIFICATIONS

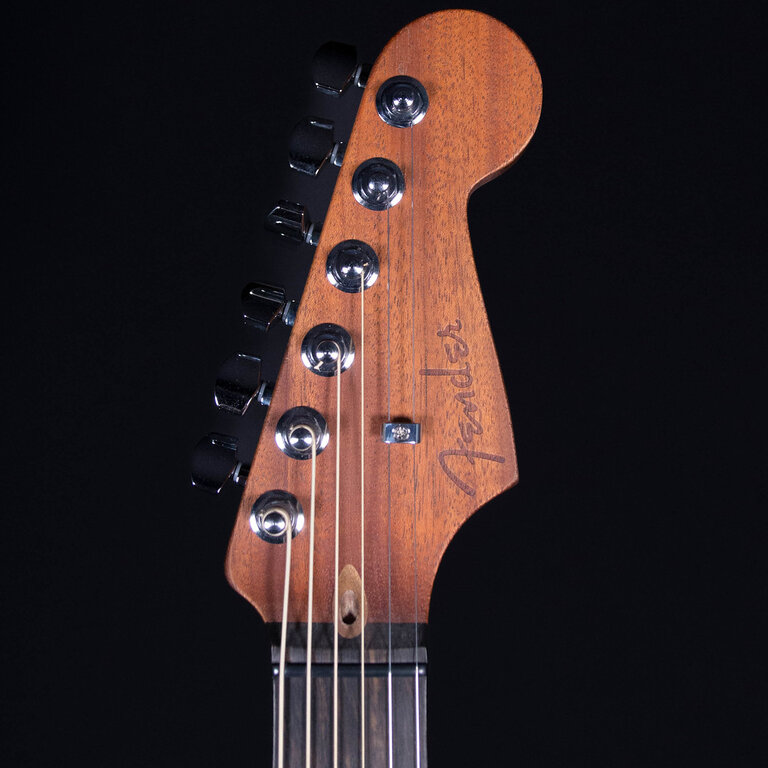

Neck

• Fingerboard Material: Ebony
• Fingerboard Radius: 12" (305 mm)
• Neck Finish: Satin Urethane
• Neck Material: Mahogany
• Neck Shape: Modern "Deep C"
• Number of Frets: 22
• Nut Material: Graph Tech® TUSQ®
• Nut Width: 1.6875" (42.86 mm)
• Position Inlays: White Dot
• Side Dots: White
• String Nut: Graph Tech® TUSQ®
• Truss Rod: Bi-Flex™
• Truss Rod Nut: 1/8" American Series

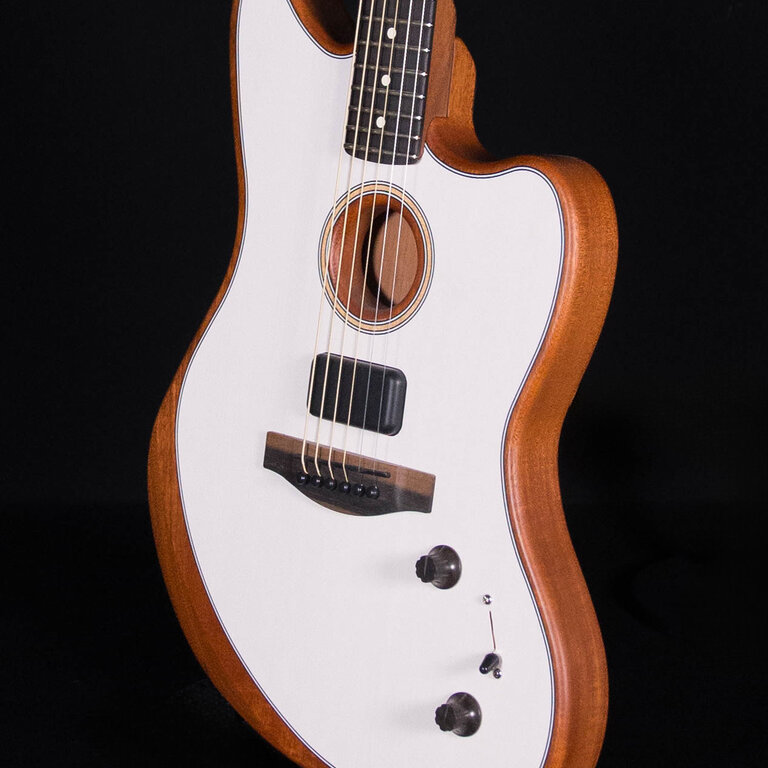

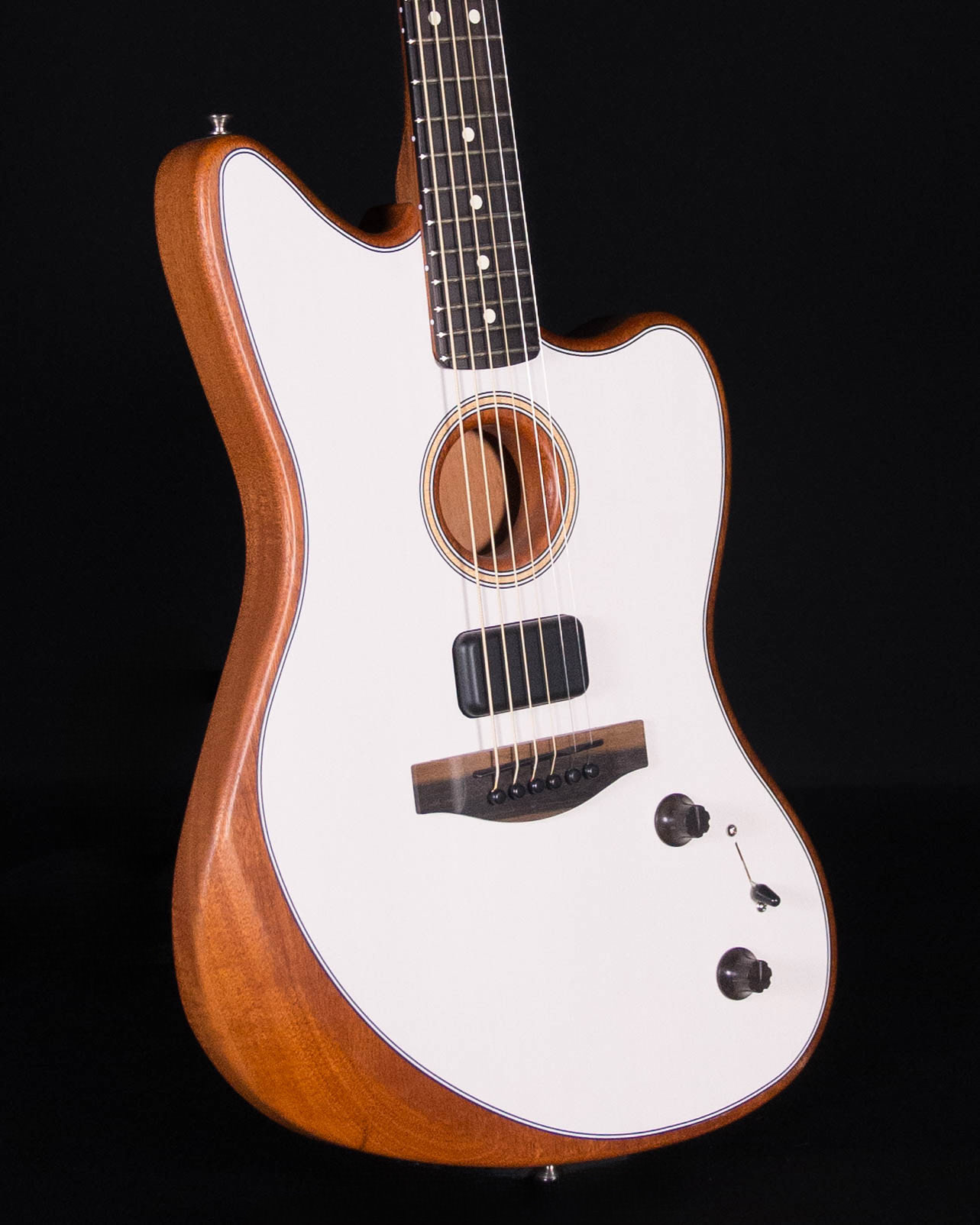

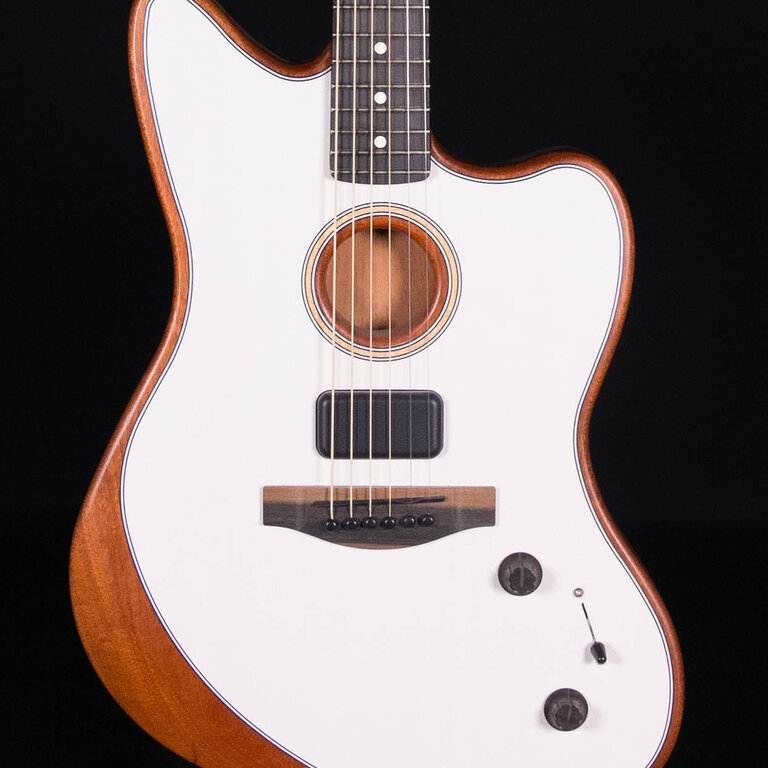

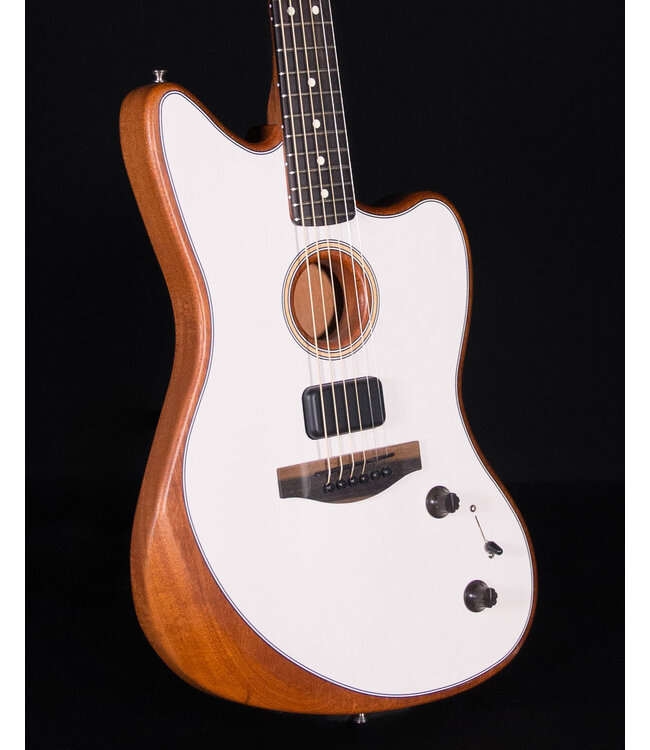

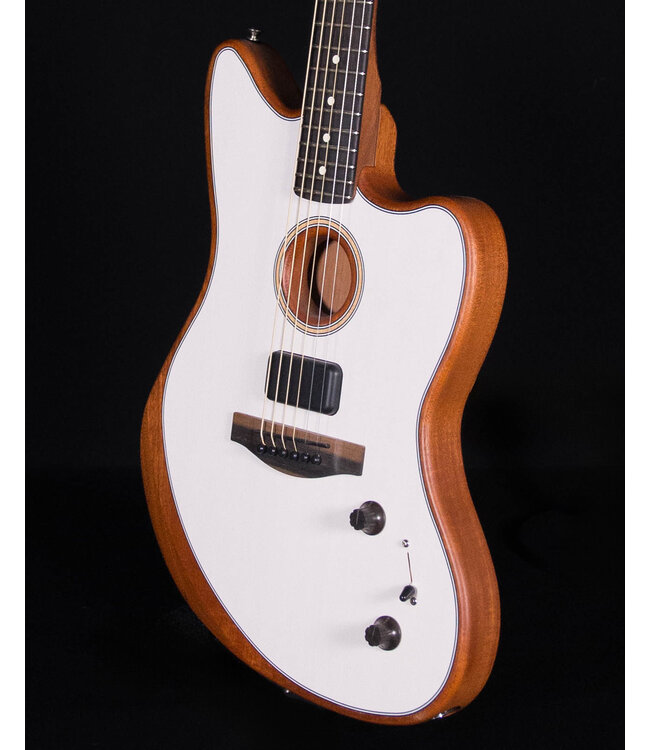

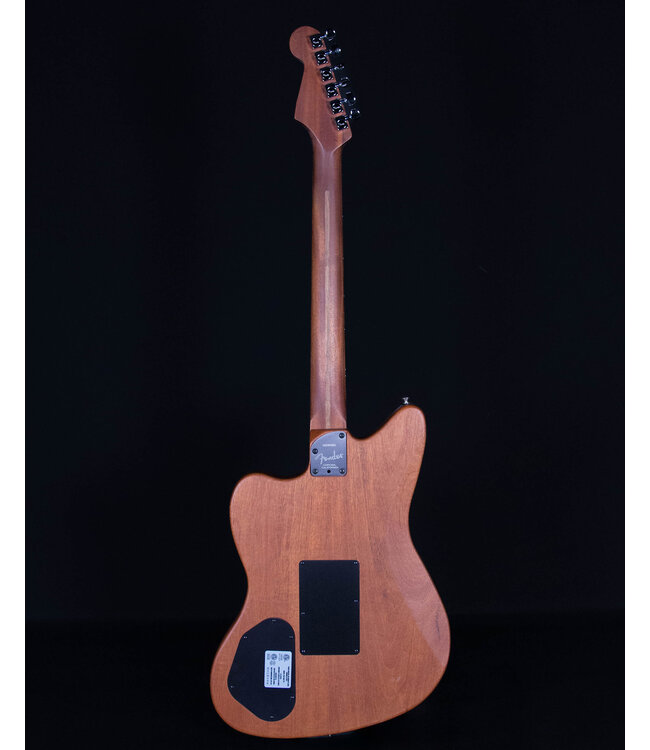

Body

• Body: Mahogany

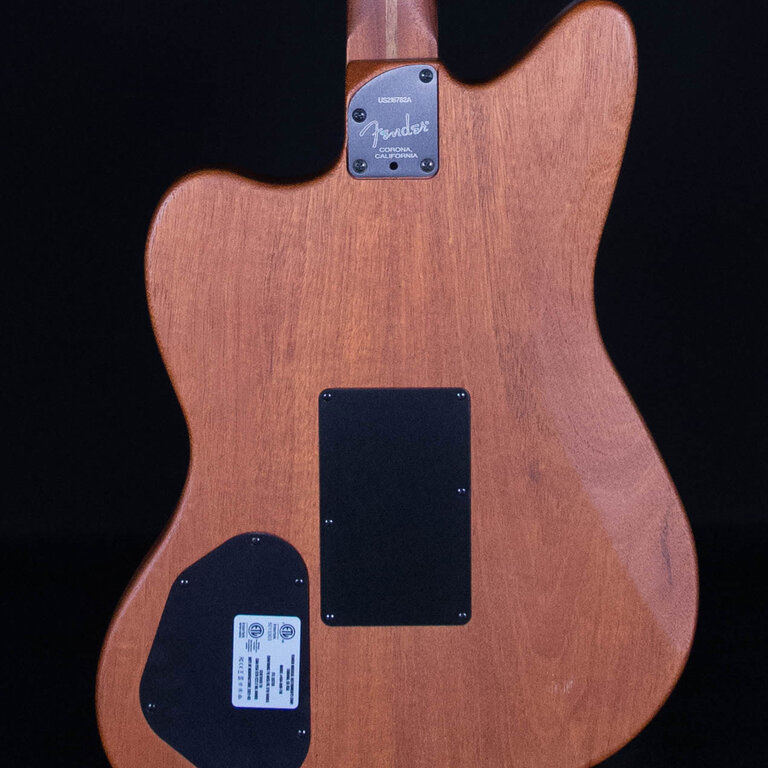

• Body Back: Mahogany
• Body Finish: Polyester Satin Matte
• Body Material: Mahogany
• Body Shape: Modified Jazzmaster®
• Body Sides: Mahogany
• Body Style: Acoustasonic
• Body Top: Solid A Sitka Spruce
• Bracing: Transverse
• Cutaway: Yes
• Purfling: Black/Cream/Black
• Rosette: 2-Ring B/W/B
• Sound Hole: WaterFall Sound Port

Hardware

• Bridge: Modern Asymmetrical
• Bridge Pins: GraphTech Tusq®
• Hardware Finish: Chrome
• Pickguard: None
• Strap Buttons: American Series
• Strings: Fender® Dura-Tone® 860CL Coated Phosphor Bronze (.011-.052 Gauges), PN
• 0730860405

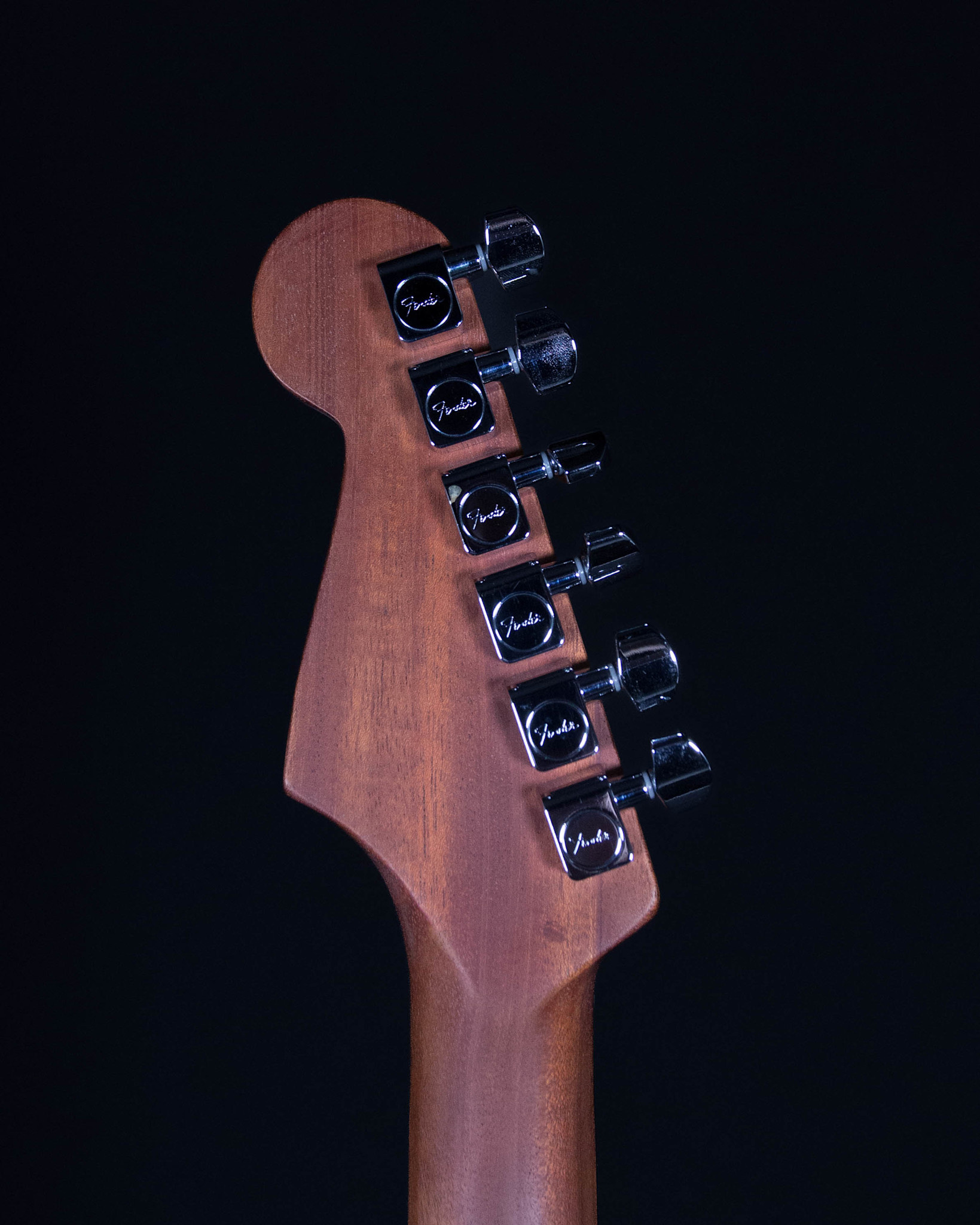

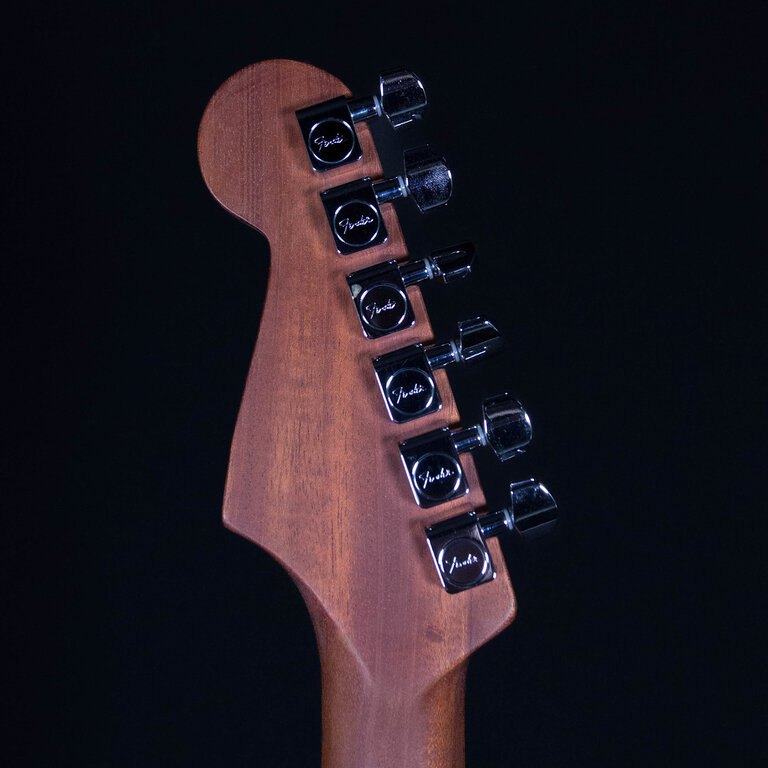

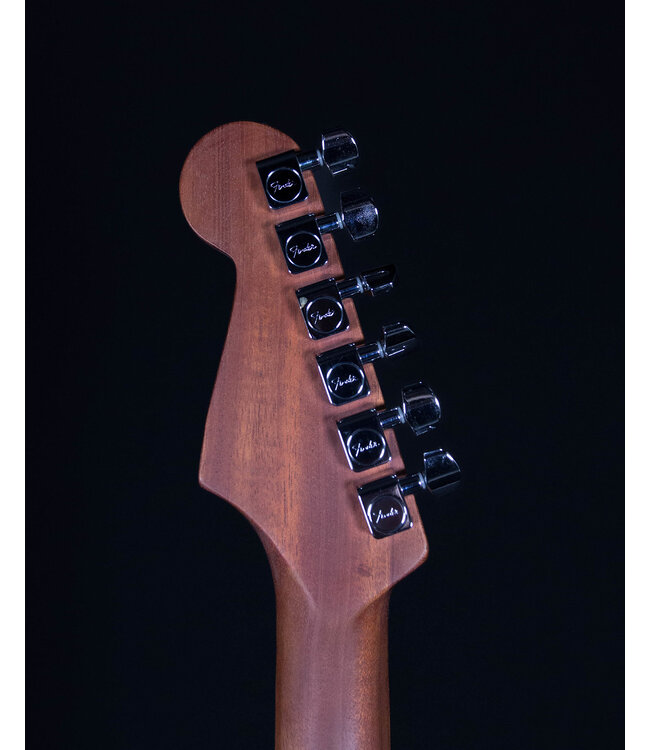

• Tuning Machines: Fender® Standard Cast/Sealed Staggered

Electronics

• Controls: Master Volume, "Blend" Knob, 5-Way Switch
• Special Electronics: 3-pickup configuration: Under-Saddle Piezo/Internal Body Sensor/N4 Magnetic
