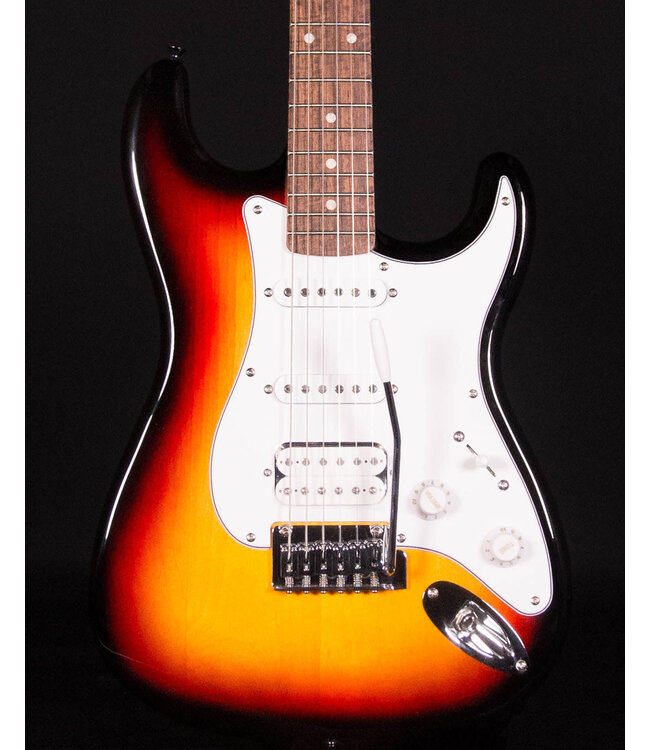

A superb gateway into the time-honored Fender® family, the Squier® Affinity Series™ Stratocaster® Junior HSS delivers legendary design and quintessential tone for today’s aspiring guitar hero. This reduced-size Strat® features several player-friendly refinements such as a scaled-down lightweight body, a slim and comfortable “C”-shaped neck with a short 24“ scale length, a 2-point tremolo bridge for superior tremolo action and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with a Squier humbucking bridge pickup and single-coil neck and middle pickups for genre-defying sonic variety, this model is ready to accompany any player at any stage.
- Reduced-size body and short 24“ scale length
- HSS pickup configuration
- 2-point tremolo bridge
- Slim and comfortable “C”-shaped neck profile
- Sealed die-cast tuning machines with split shafts
SPECIFICATIONS
General
- Series: Affinity Series
- Orientation: Right-Hand
- Color: 3-Color Sunburst
- Country Of Origin: CN
Neck
- Neck Material: Maple
- Neck Finish: Satin Urethane with Gloss Urethane Headstock Face
- Neck Shape: "C" Shape
- Neck Construction: Bolt-On
- Fret Size: Medium Jumbo
- Scale Length: 24" (610 mm)
- Fingerboard Radius: 9.5" (241 mm)
- Fingerboard Material: Indian Laurel
- Position Inlays: Pearloid Dot
- Side Dots: White
- Number Of Frets: 20
- Truss Rod: Head Adjust
- Truss Rod Nut: 4 mm Hex
- String Nut: Synthetic Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Synthetic Bone
Body
- Body: Poplar
- Body Finish: Gloss Polyurethane
- Body Shape: Stratocaster®
- Body Material: Poplar
Hardware
- Bridge: 2-Point Synchronized Tremolo with Block Saddles
- Pickguard: 3-Ply White
- Pickup Covers: White
- Control Knobs: White Plastic
- Switch Tip: White
- Hardware Finish: Chrome
- Tuning Machines: Sealed Die-Cast with Split Shafts
- String Trees: Dual-Wing
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Screw-In
- Neck Plate: 4-Bolt Squier®
- Strap Buttons: Standard
Electronics
- Bridge Pickup: Ceramic Humbucker
- Middle Pickup: Ceramic Single-Coil
- Neck Pickup: Ceramic Single-Coil
- Pickup Configuration: HSS
- Controls: Master Volume, Master Tone
- Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Miscellaneous
- Style: 2 Single-Coil / 1 Humbucking
